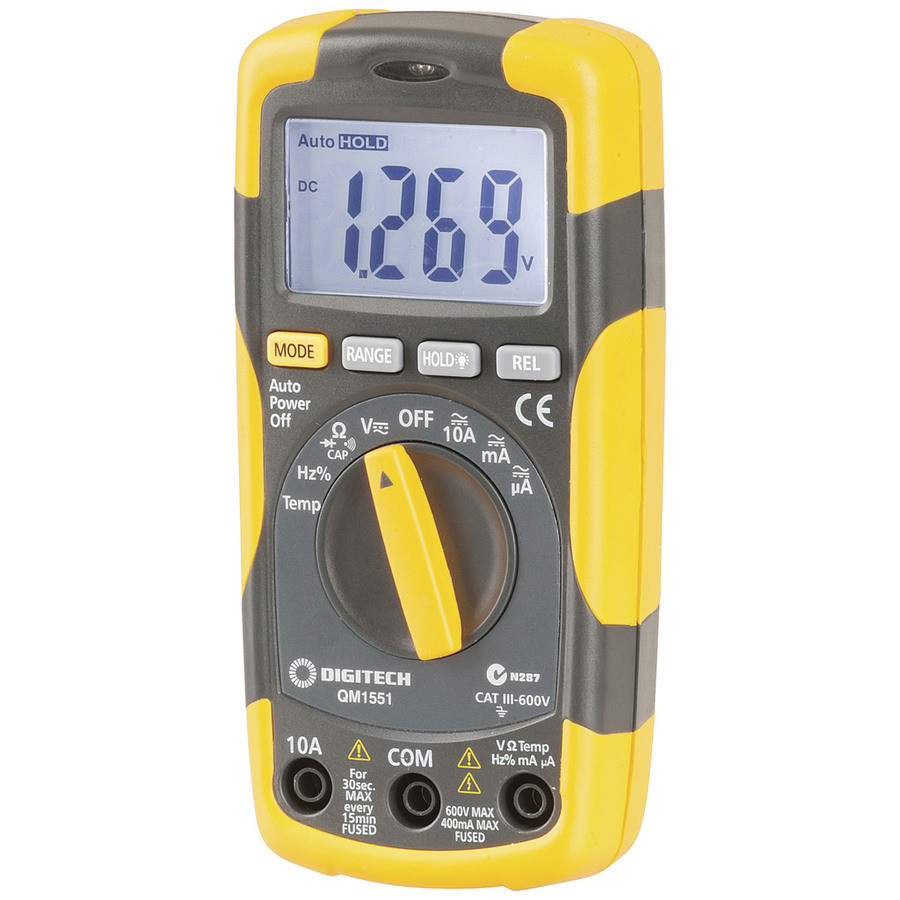

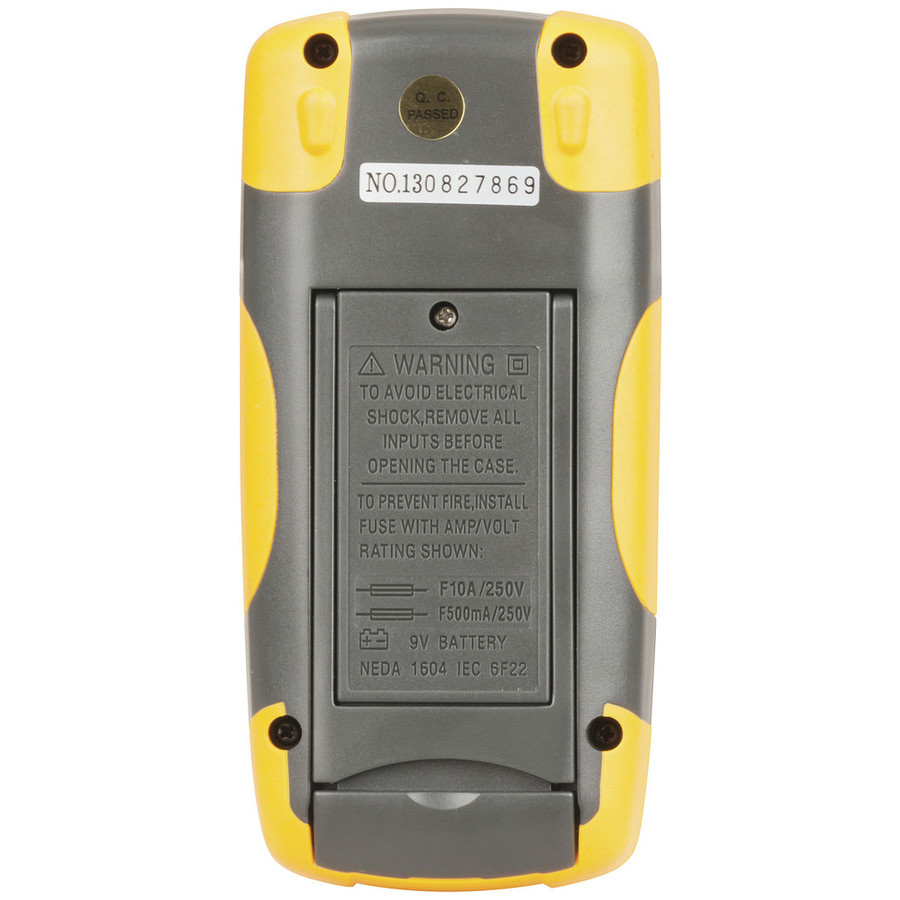

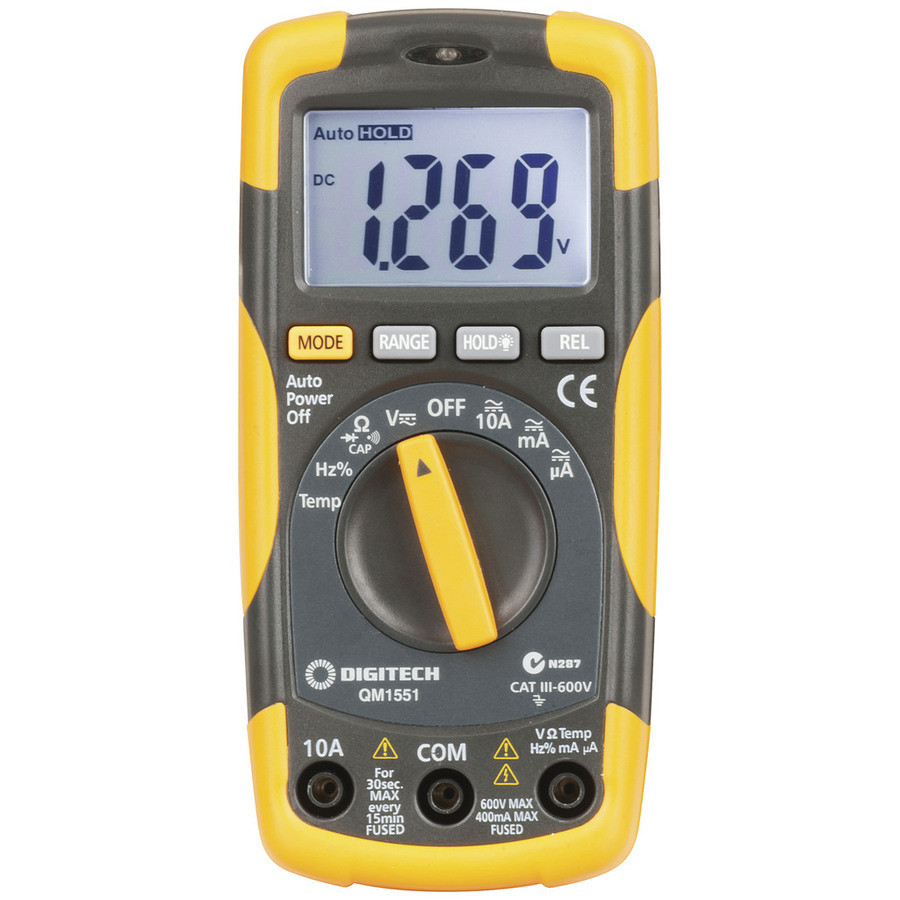

A powerful true RMS multimeter that includes non-contact voltage testing, backlit LCD, and a carrying pouch. The rear of the unit has a foldout stand so you can sit the meter at a comfortable viewing angle on your desk, workbench or car.
Features:
* Backlit LCD
* Woven nylon carry pouch with room for meter and leads
* Leads and k-type thermocouple included
* Automatic (-) negative polarity indication
* Meter automatically shuts down after 30 minutes of inactivity
* Powered by 1 x 9V battery (included)
* Data hold
* Display: 4000 count
* Security Class: Cat III 600V
* Basic DVC accuracy: 0.5%
* Temperature: -20oC-760oC / -4oF-1400oF (3%)
* Ave/RMS: True RMS
* Input impedance: - 7.8M
* Special features: Continuity, diode check, blue backlit LCD, non-contact voltage, foldout stand
Measures Current DC
DC Current Ranges | 400uA, 4000uA, 40mA, 400mA, 10A |
DC Current Accuracy | 1.50000000% |
Measures Current AC
AC Current Ranges | 400uA, 4000A, 40mA, 400mA, 10A |
AC Current Accuracy | 1.80000000% |
Measures Voltage AC
AC Voltage Accuracy | 2% |
AC Voltage Ranges | 400mV, 4V, 40V, 400V, 600V |
Measures Voltage DC
DC Voltage Accuracy | 1.50000000% |
DC Voltage Ranges | 400mV, 4V, 40V, 400V, 600V |
Measures Resistance
Resistance Ranges | 400 , 4k , 40k , 400k , 4M , 40M |
Resistance Accuracy | 1.20000000% |
Meter Safety Rating
Safety Rating Cat | Cat III |
Safety Rating Max Volt | 600V |
Measures Capacitance
Capacitance Ranges | 40nF, 400nF, 4uF, 40uF, 100uF |
Capacitance Accuracy | 3% |
Measures Frequency
Frequency Accuracy | 1.20000000% |
Frequency Ranges | 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 5Hz |
Measures Temperature
Measures in Celcius | |
Measures in Fahrenheit | |
Celcius Accuracy | 3% |
Outdoor / Exterior Scale | -20oC-760oC |
Digital Multi-Meter
Count Maximum Reading | 4000 count |
True RMS | |
Autorange | |
Measures duty cycle |
Meter Data Control
Data Hold | |
Relative Measure |
Measures Continuity
Continuity indicator | Needle |
Meter Probes
Probe rating voltage | 600V |
Probe safety rating | Cat III |
Meter
Input Protection Fuse | 400mA |
Meter Input Impedence | 7.8M |
Measures diode | |
Foldout Stand | |
Casing | Plastic |
Power from disposable battery
Batteries included | |
Size / Shape | 9V |
Battery quantity | 1pc |
Batteries can be replaced by user | |
Compartment location | Internal / In-built |
How is battery compartment kept closed | Clip and Screw |
Product Dimensions
Length | 138mm |
Width | 68mm |
Depth | 37mm |
Packaged Dimensions
Packaged Volume | 3.24l |
Packaged Weight | 0.45kg |
Packaged Length | 22.5cm |
Packaged Width | 16cm |
Packaged Height | 9cm |
Meter Display
Display Type | LCD |
