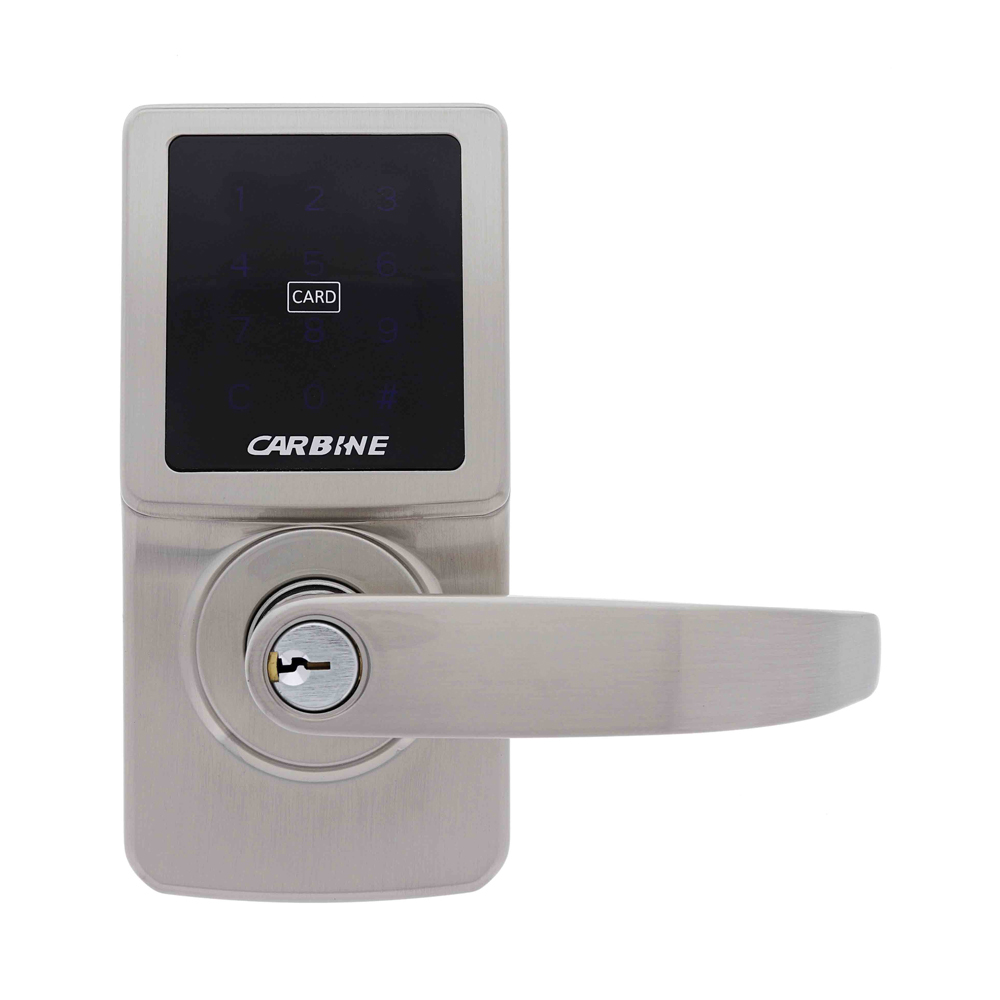

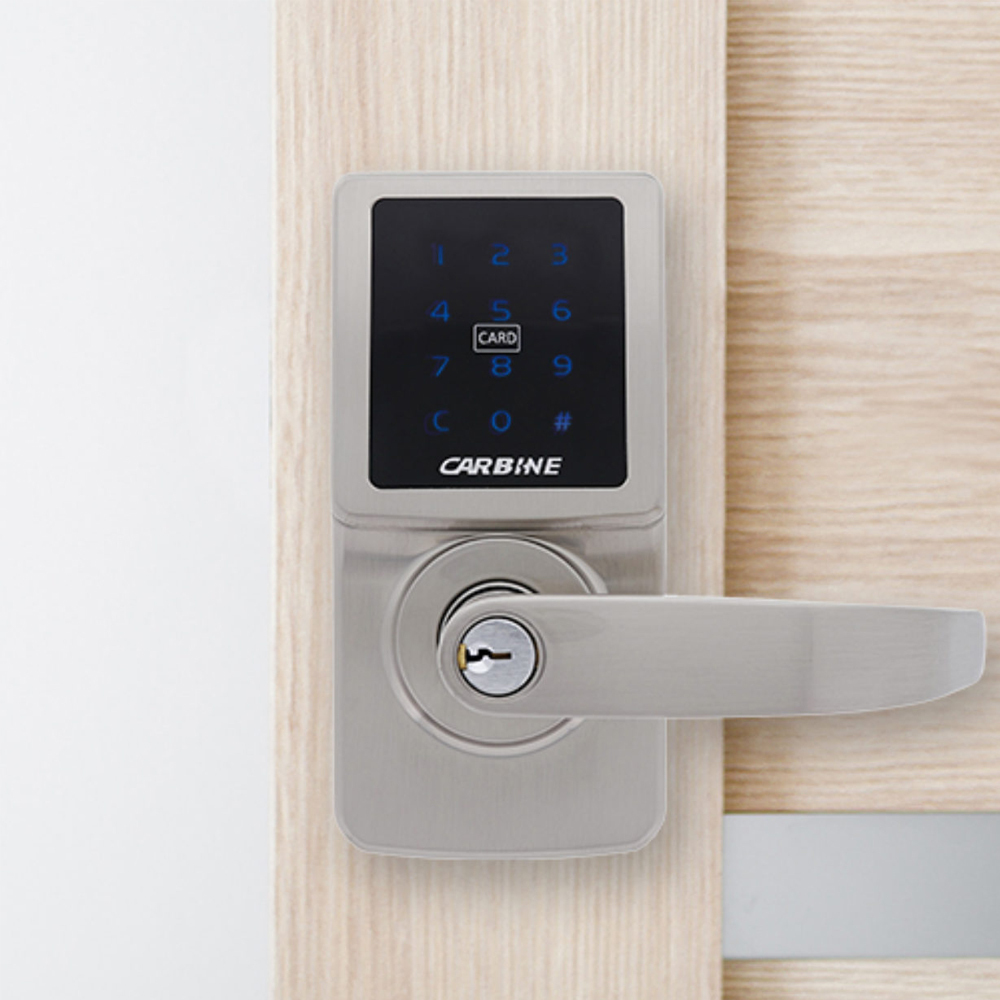

Carbine Electronic Door Lever Set Touch Screen Satin Nickel CEL-3IN1-SL8SNKIT

Carbine Electronic Door Lever Set
CEL-3IN1-SL8SNKIT

Electronic Leverset provides a keyless locking solution making for more convenient access to your home. It puts a stop to lost keys and the unnecessary lockout. There are three modes of access by way of a 4-8 digit code, RFID card/chip or NFC enabled smartphone.

Electronic Leverset Function - Operates in many application with the benefits associated with keyless door locking which prevents security issues caused by lost, stolen, or damaged keys.

Features:

• Recommended for medium use installations
• 1 Hour fire rating on E-core fire doors
• IP Rating of IP54
• Touch keypad with backlight
• Key override
• RFID card entry
• Works with most NFC enabled smart phones with Mifare compatibility (it is recommended to test specific models of phones prior to installation, as each phone manufacturer has different specifications which we cannot control)
• Works on "13.56Mhz" frequency, it has MiFare NFC
• If a customers phone model is not compatible with the CEL lock, we have RFID stickers available to attach to back of a mobile phone
• RFID Cards & wristbands also available & sold separately
• Access codes, RFID cards & phones are programmed through the lock
• 1 programing code, 25 user codes and 25 RFID cards
• Codes from 4 - 8 digits
• Guiding code, ability to enter program false numbers before true code
• Vacation mode, lock out all users
• Can be put in Passage mode, hold 'set' for 1 second
• Auto lock delay timer, 5 -99 seconds. Pre set at 5 seconds
• Double authorization mode possible, card and code
• ANSI G2
• C4 keyway 6 pin PD style cylinder, keyed to 5 pin key
• Requires 4 x Duracell Procell AA batteries or good quality alkaline batteries only
• Batteries included in KIT part numbers
• Battery life of 5000 openings
• Box Packed
• 60-70mm adjustable bolt only, CAN NOT do 127mm

Specifications:

• Height: 155mm
• Width: 75mm
• Suits Door Thickness: 35mm to 51mm
• Lockset Hole: 54mm
• Finish: Satin Nickel
