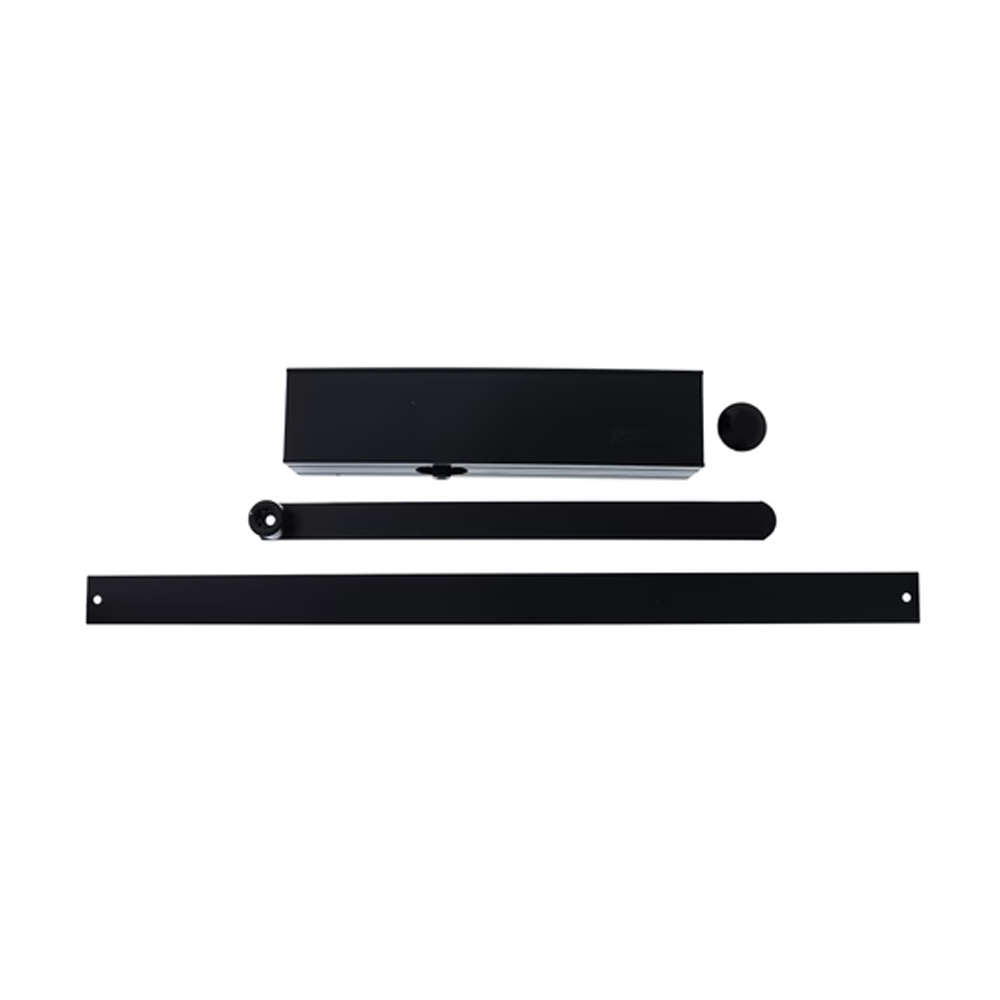

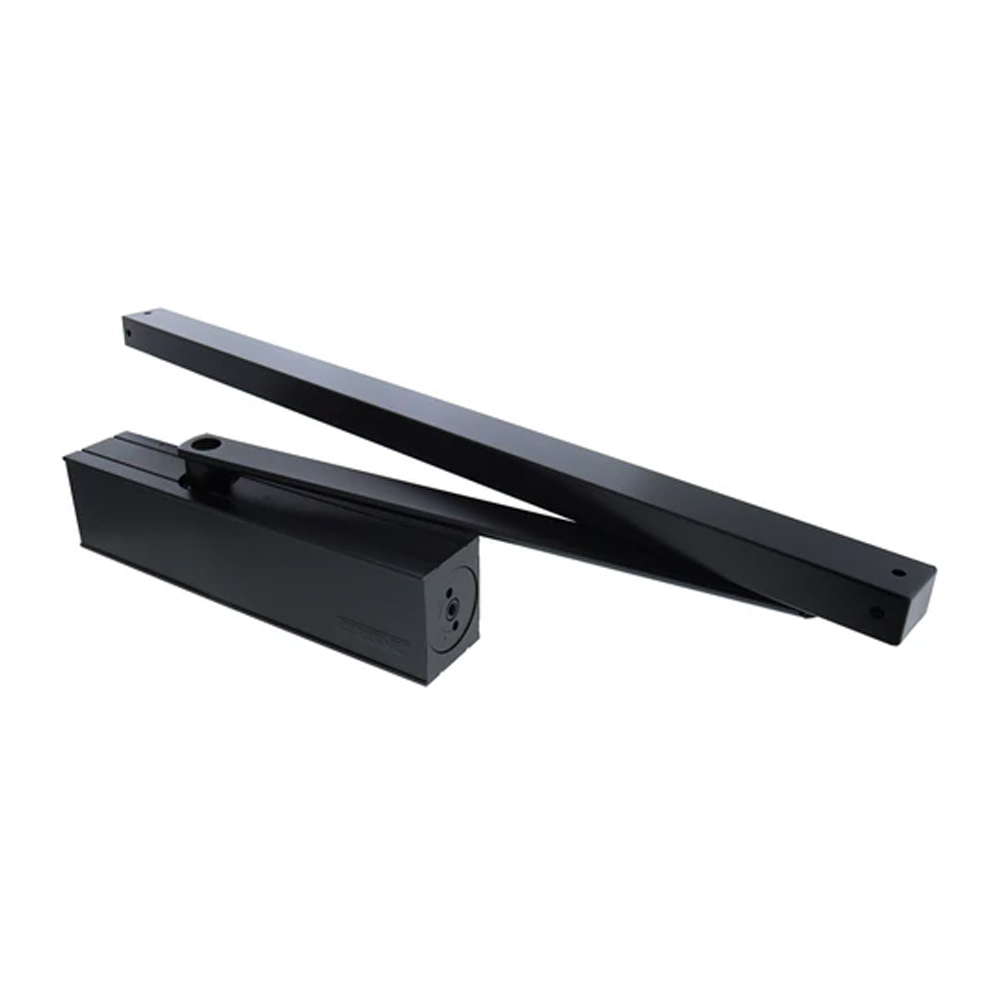

Carbine CDC-5 EN2-6 Door Closer Delayed Action and Slide rail Arm Matt Black

Carbine CDC-5 Radius
CDC-5SA-MB

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

• Carbine Radius Rack & Pinion series includes four models with adjustable closing, latching speeds, and back check. They are all single-action closers with a transom mount on the push side and non-handed installation making them easy to install on inward or outward opening doors
• Supplied with everything you need for your next installation including standard and parallel arm fittings, and timber and self-drilling metal screws
• Fire rated for 2 hours
• Cycle tested to 500,000 cycles
• Adjustable closing & latching speed
• Adjustable back check 70 to 90 degrees
• Thermo-constant valve
• Surface mount
• Transom mount on push side
• Positional mounting for closer strength
• Supplied with standard and parallel arm fittings
• Single-action door
• Non-handed installation
• Supplied with timber and self-drilling metal screws
• Constructed with extruded anodized aluminium body
• Slide rail arms for the CDC range include the hold open insert

Specifications:

• Power: EN 2 to 6 (adjustable)
• Standard Arm: 180 Degree Opening
• Parallel Arm: 130 Degree opening
• Sliding Arm Pull: 180 degree, push 110 degree opening (120 degree CDC-5)
• Hold Open: 130 degree opening (180 degree, hold open angle 70 to 150 degree CDC-5)
• Material: Constructed from 6061 grade aluminum
• Suitable For Doors Weighing: 40kg to 100kg
• Body Length: 256.5mm
• Height: 60mm
• Width: 48mm
• Finish: Matt Black

Ratings:

• Tested to EN1154 standards
