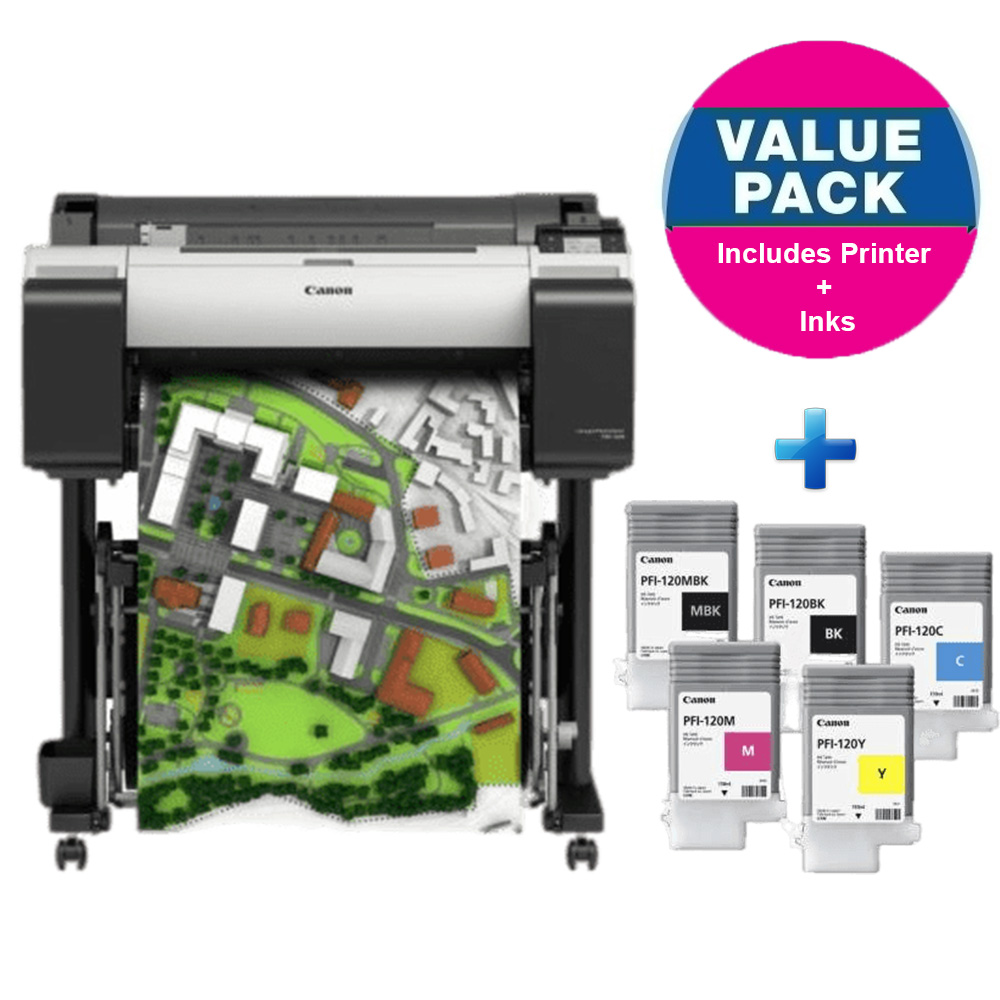

Canon imagePROGRAF IPFTM-200 A1 24inch Large Format Printer + Inks

DESCRIPTION

Introducing the TM-200 A printer that provides all the flexibility and functionality of more expensive printers. For small businesses, it’s reason to celebrate. Now there’s no reason why a small business can’t be as productive and as competitive as a larger one.

Canon’s imagePROGRAF TM-200 is purpose built for small businesses working in architecture, engineering and construction. With speed and efficiency, this large format printer produces long lasting posters, low to mid CAD drawings and GIS files.

Your most convenient solution for economical high definition large format print

Boost performance and enhance professionalism with your Canon imagePROGRAF TM 200. Purpose built for architects, engineers and construction businesses, the TM series employs new technologies to economically generate impressive posters, CAD and GIS files in large format. With a small footprint and quiet processing, its ideal for small, busy offices.

60% quieter for small, fast paced office environments

No need for distractions. With its new dampening solution, this quiet achiever will slot straight right into your busy office and get on with its work

Present long lasting sharp print with true colour

Create the most professional impression with CAD and GIS files reproduced in sharp detail and vivid colour, quickly and economically on plain paper

At a glance

• 24 inch
• All-new 5-colour water resistant TD pigment ink set
• The TM-200 is well suited for busy office environments as it is 60% quieter than previous imagePROGRAF printers
• The TM-200 features a 3″ colour touchscreen operation panel
• Print jobs quickly with built-in wireless connectivity

SPECIFICATIONS

PRINT HEAD

PF-06

TECHNOLOGY

FINE (Photolithography Inkjet Nozzle Engineering)

PRINT RESOLUTION (MAX.)

2400 x 1200 dpi

LINE ACCURACY*

±0.1% or Less

User adjustments necessary. Printing environment and media must match those used for the adjustments.

CAD paper required: Plain paper, CAD tracing paper, coated paper, CAD translucent matte film only

MINIMUM LINE WEIGHT**

0.02mm

NUMBER OF NOZZLES

Matte Black: 5,120 Nozzles

Other Colours: 2,560 Nozzles per Colour

DROPLET SIZE

Minimum 5 Picolitre per color

NOZZLE PITCH (HEAD RESOLUTION)

1200 dpi x two lines

PRINT HEAD SWATH

1.07”

INK TYPE

Pigment: Matte Black (MBK), Cyan (C), Magenta (M), Yellow (Y), Black (BK)

INK TANK

PFI-120 (130ml) / PFI- 320 (300ml)

INK SUPPLY METHOD

Tubing System with Sub-tanks

NOZZLE RECOVERY SYSTEM

Non-firing Nozzle Detection and Compensation

PRINTER CONTROLLER

L-COA PRO

PRINTER RAM

2GB

HARD DRIVE

N/A

MEDIA FEED

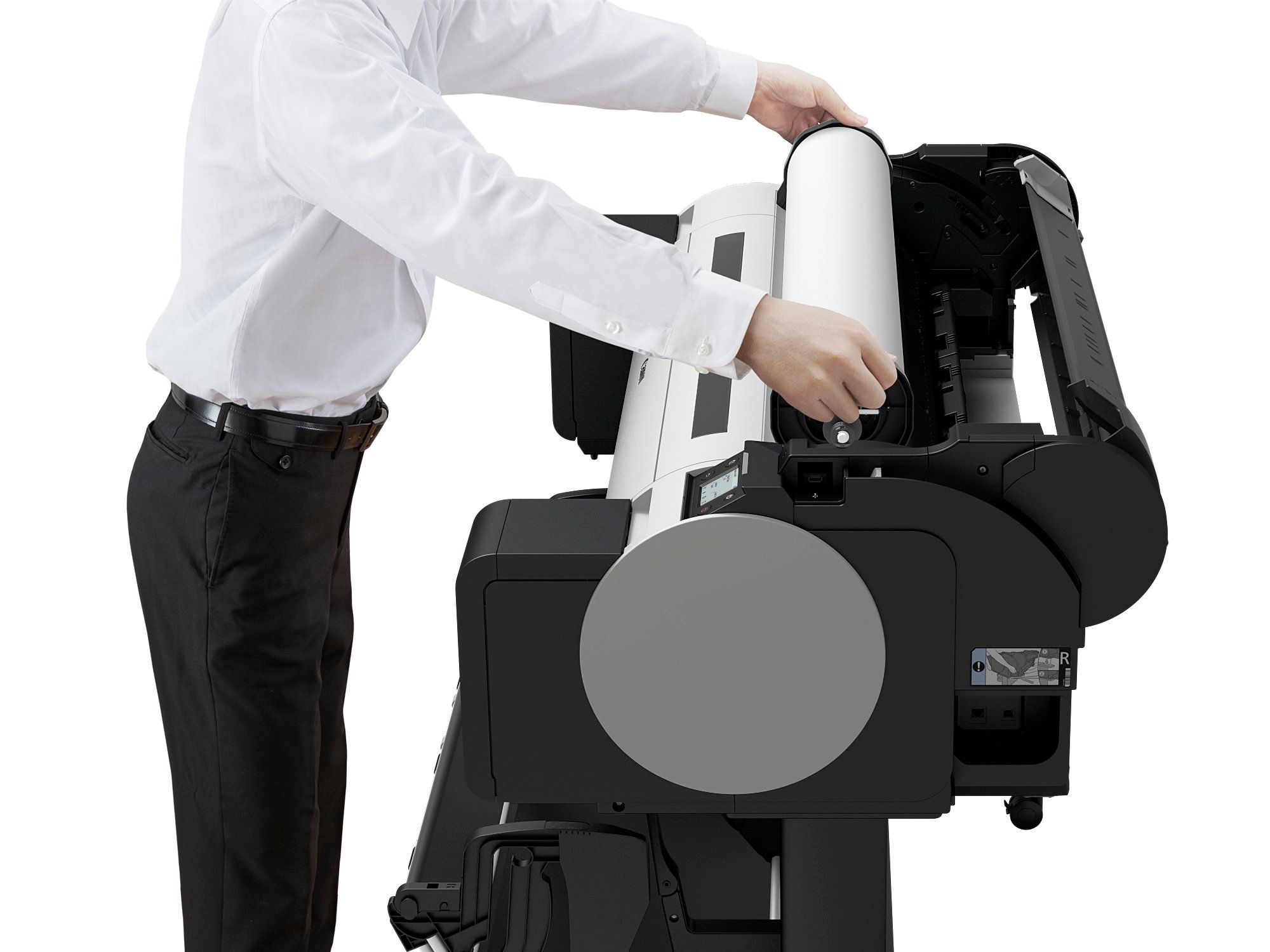

Roll Feed: One Roll, Uppper-loading, Front Output

MEDIA WIDTH

Roll Feed: 203.2–610mm (8”–24”)

Cut Sheet: 203.2–610mm (8”–24”)

PRINTABLE MARGINS

Roll paper: Top: 3 mm, Bottom: 3 mm, Side: 3 mm

Roll paper (borderless print): Top: 0 mm, Bottom: 0 mm,

Side: 0 mm

MAXIMUM PRINT LENGTH (SINGLE PAGE)

Roll Feed: 18m (Varies according to the OS and application)

Cut Sheet: 1.6m

BORDERLESS PRINTING WIDTHS

[Recommended] 515mm(JIS B2),

594mm(ISO A1), 10”, 14”, 17”, 24”

[Printable] 257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 8”, 12”, 16”, 20”, 300mm, 500mm, 600mm

MEDIA CUTTER

Automatic horizontal cutting (Rotary cutter): standard

MEDIA THICKNESS

0.07–0.8mm

MEDIA INTERNAL DIAMETER SIZES

Internal diameter of roll core: 2”/3”

MAXIMUM ROLL OUTER DIAMETER

150 mm or less

PRINTING SOFTWARE UTILITIES

Accounting Manager, Apple AirPrint, Device Management Console, Direct Print & Share, Free Layout Tool, imagePROGRAF Printer Driver for Windows®/Mac®, Media Configuration Tool, PosterArtist Lite for Windows, Printer Driver Extra Kit for Windows/Mac (Free Print Utility Layout, Advanced Preview), Optimised Driver for AutoCAD, Print Plug-in for Microsoft® Word/Excel/PowerPoint® for Windows, Quick Utility Toolbox

OPERATING SYSTEM

Windows 7 (32/64 bit), Windows 8.1 (32/64 bit), Windows 10 (32/64 bit), Windows Server 2008 R2, (32/64 bit), Windows Server 2012 (64 bit), Windows Server 2012 R2 (64 bit), Windows Server

PRINT LANGUAGE

Printer: SGRaster, HP-GL/2, HP RTL, PDF, JPEG

INTERFACE

Standard (Built-in): Hi -Speed, IEEE 802.3u 100base-TX / Auto-Negotiation, IEEE 802.3ab 1000base-T / AutoNegotiation, IEEE 802.3x

Full Duplex

Wireless LAN (IEEE 802.11 b/g /n)

Direct USB Thumb Drive Printing

ACOUSTIC NOISE

Acoustic Pressure: 44dB(A) (Plain paper, line drawing, standard mode) Stand by: 35dB(A) or less (Measured on ISO7779 standard)

Acoustic Power: 6.0 Bels (Plain paper, line drawing, standard mode) (Measured on ISO7779 standard)

POWER SUPPLY

AC 100–240V (50–60 Hz)

POWER CONSUMPTION

Power consumption (using wired LAN): 69 W or less

At sleep mode (using wired LAN): 3.6 W or less At sleep mode (using all ports)

: 3.6 W or less

At the power off: 0.3 W or less

Default setting for the time to enter the Sleep mode

: 300sec

OPERATIONAL ENVIRONMENT

Temperature: 15–30°C

Relative Humidity: 10–80% RH (No Dew Condensation)

PRINTER DIMENSIONS (W X D X H) AND WEIGHT

Main Unit:

982 x 748 x 439 mm

Weight: 41 kg (including Roll Holder Set, excluding ink and print head)

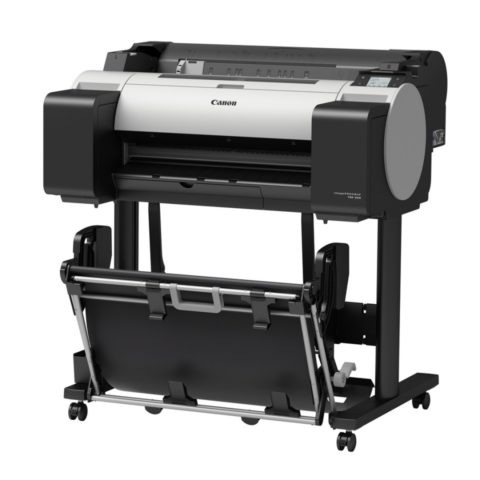

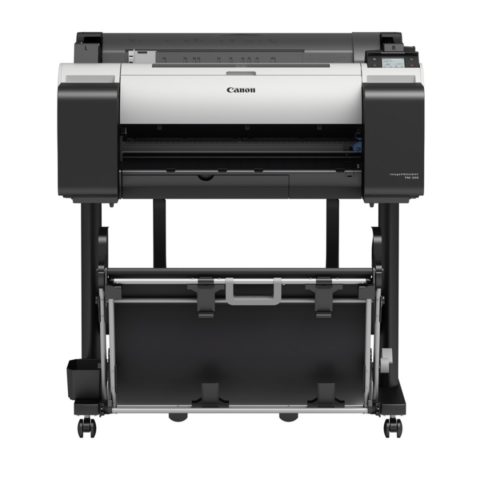

Main Unit + Stand + Basket (SD-22):

982 x 887 x 1060 mm (Basket Opened: Position1)

982 x 757 x 1060 mm (Basket Closed)

Weight: 51 kg (including Roll Holder Set, excluding ink and print head)

Main Unit + Stand + Basket (SD-23):

982 x 887 x 1060 mm (Basket Opened: Position1)

982 x 757 x 1060 mm (Basket Closed)

Weight: 52 kg (including Roll Holder Set, excluding ink and print head)

PACKAGE DIMENSIONS (W X D X H) AND WEIGHT

Printer (Main unit with pallet):

1152 x 913 x 705 mm, Weight: 69kg

Stand + Basket (SD-22):

1155 x 824 x 268 mm, Weight: 17kg

Stand + Basket (SD-23):

1155 x 824 x 268 mm, Weight: 18kg

Printer (Main unit with stand and pallet) (SD-22):

1152 x 913 x 961 mm, Weight: 85kg

Printer (Main unit with stand and pallet) (SD-23):

1152 x 913 x 961 mm, Weight: 87kg
