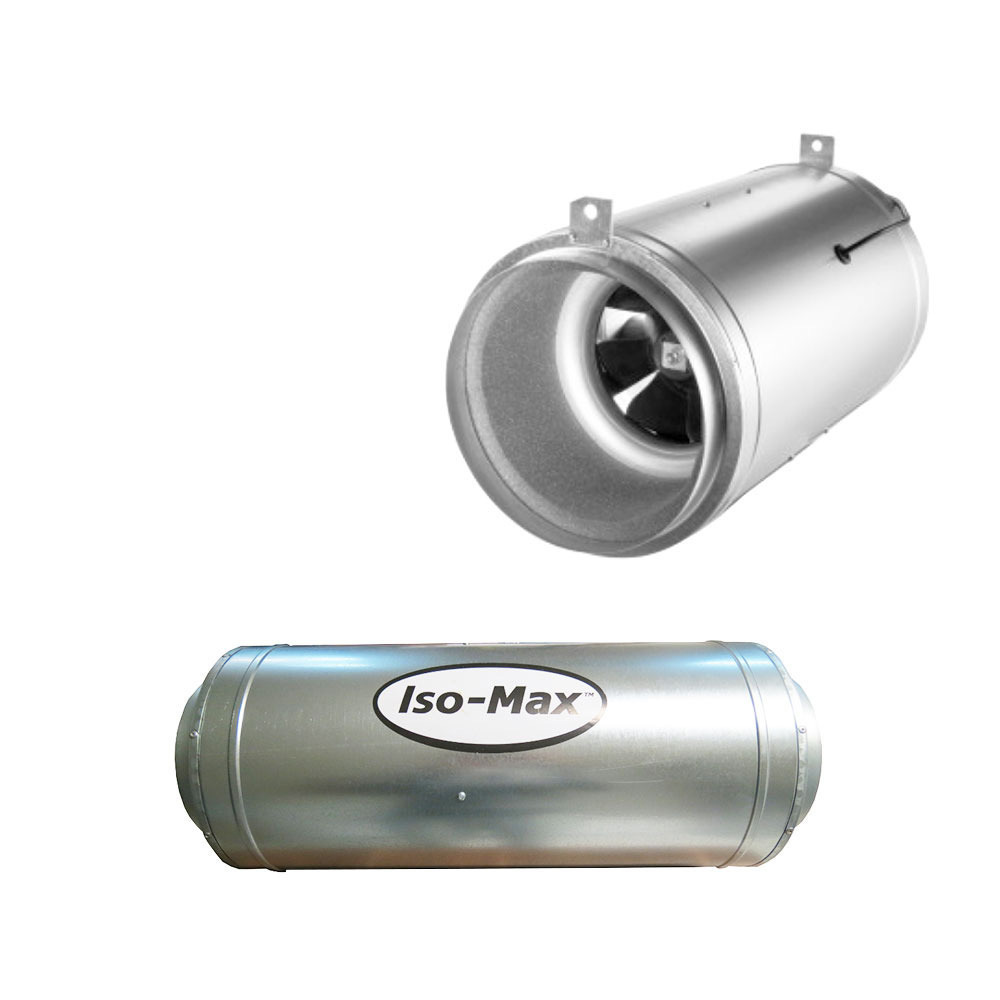

Can-Fan Iso-Max Fan - 200MM | 512CFM | Silenced Fan | Acoustic Silencer
Iso-Max are totally unique tube style fans, designed to be efficient, powerful and yet quiet in operation. Iso-Max uses the stator-rotor system that enables it to be efficient both in air performance and power consumption. Iso-Max are unique in that they are both a fan and an integrated silencer. It has a full metal housing and for noise-reduction a special type of foam is added, It's low weight, strong air performance and quietness makes Iso-Max the most advanced choice for a grow room ventilation.
Iso-Max Fans utilise the low energy and high performance motor of the Ruck Etaline fan series. These motors are capable of delivering large volumes of air, even when carbon filters and complicated ducing systems are installed. Built around aerodynamic efficiency, the Etaline motor is situated inside a sealed, acoustically designed, silenced housing. This not only insulates the noise from the motor and air movement, but also provides hanging points at either end for easy mounting. The overall result is a surprisingly lightweight and powerful fan that keeps noise to a minimum.
The Iso-Max 150 & 200 both have an integrated 3 speed controller.
Features
The Can ISO Max Fan A German made fan with an integrated silencer in a metal casing, resulting in very low noise levels.
The Iso-Max fan (Airforce 2) has 2 propellers, 1 rotor & 1 Stator. This enables the fan to produce a uniform jet of air, making less contact with the ducting, resulting in less pressure fall and therefore higher efficiency.
- Comes pre-wired and has an integrated thermal switch which prevents overheating.
- Easy to hang with built in hangers on the top of the fan.
Specifications
- Name: ISO-MAX 200 with 3 Speed Control
- Diameter: 200MM
- Max Flow: 512CFM
Can-Lite 1000 Carbon Filter - [Flange Size: 200MM (8" Inch)]
The Can-Lite carbon filter is the latest addition to the Can-Filters Carbon filter range. Recently released after years of testing and research, the Can-Lite has been developed with ease of installation, durability and effectiveness in mind.
The Can-lite is manufactured using a similar process to Can-Filter 'Classic but instead using a highly perforated, light aluminum casing and a special grade of virgin CKV-4 carbon. This allows the filters to be lighter and handle larger air flow rates without any odor breakthrough.
Made in the Netherlands.
Specifications
- Model: 1000
- Filter Height (mm): 500
- Outside Diameter (mm): 300
- Weight (kg): 12
- Thickness of Carbon (mm): 50
- Carbon Type: CKV-4 light
- Pre-Fitted Flanges (mm): 200, 250
- Max Flow Rate: 530CFM
- Max Operating Temp: 80ºC
- Max Relative Humidity: 70%

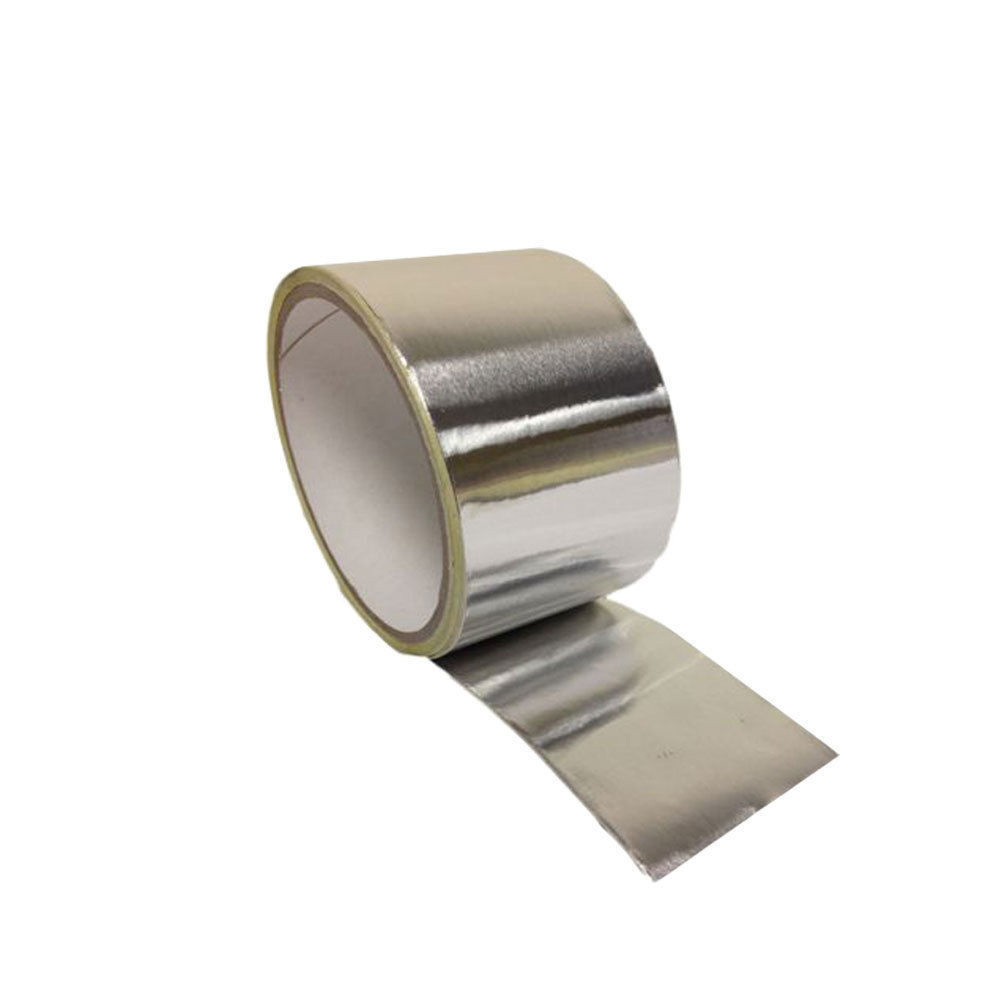

Silver Foil Aluminium Insulation Duct Tape - 50MM x 50M | 30mu
- A heavy duty heat resistant aluminum tape for repairing ducting.
- Has pressure sensitive backing for durability and easy application.

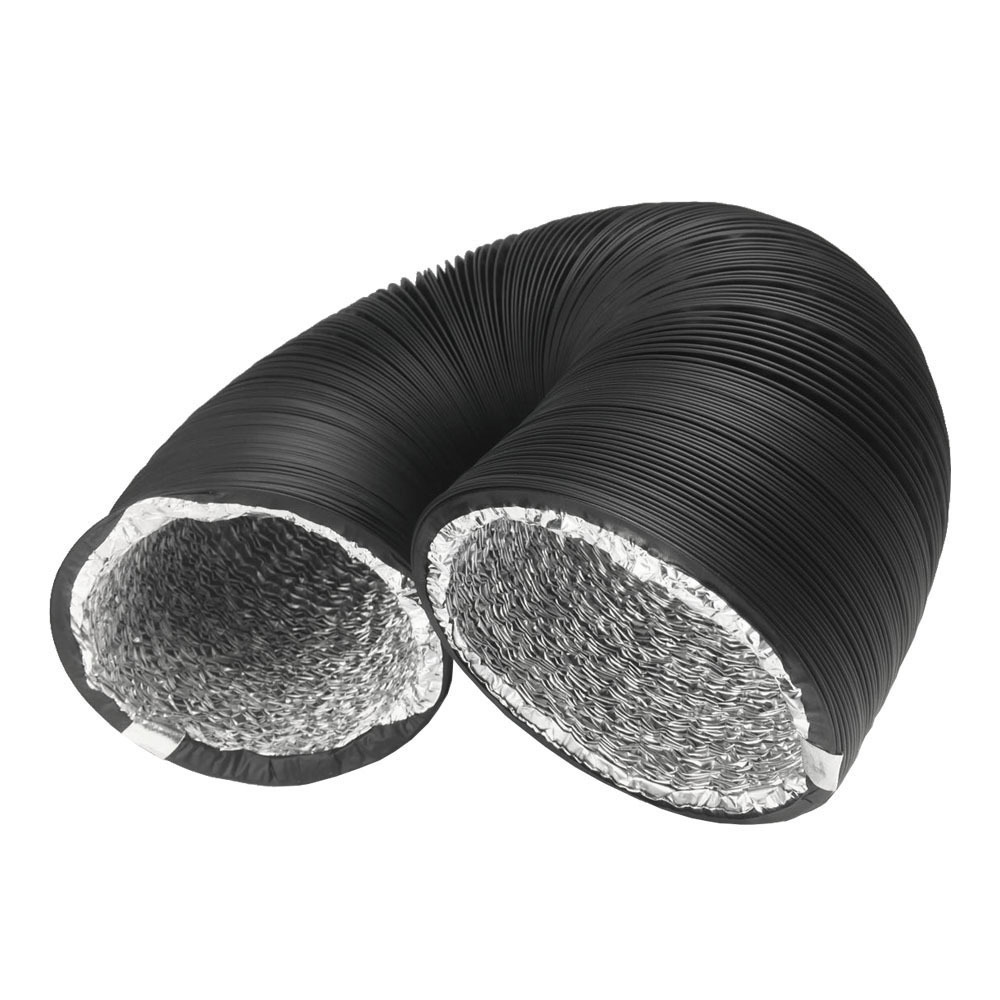

Black PVC Coated Dual Layer Air Duct - 5 Meters | 203MM (8" Inch) | Ventilation

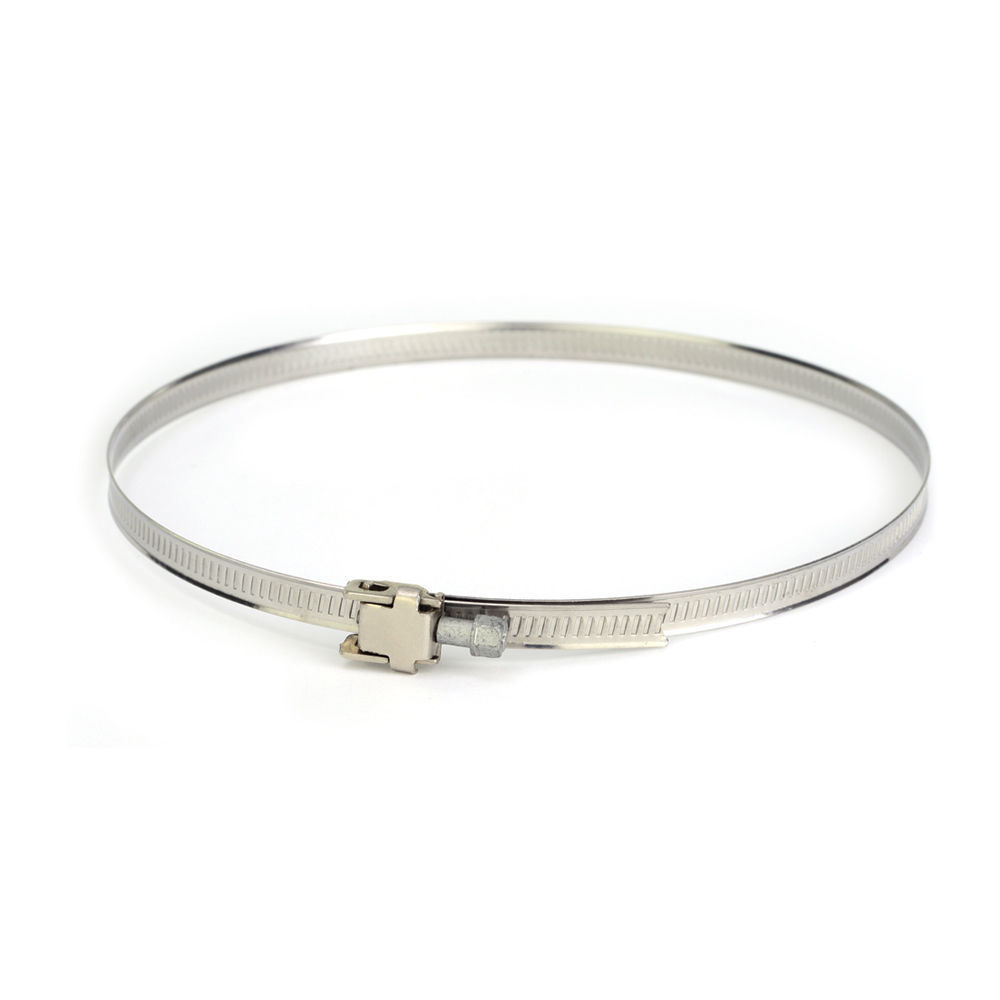

Fan Ducting Clamp - 203MM (8" Inch)
Quick release stainless steel hose clamps. Just release the tension on the screw and flip up to instantly release the clamp. Allows for easy removal of the clamp for quicker flex duct removal when cleaning the glass in your air cooled fixture or accessing your lamp.

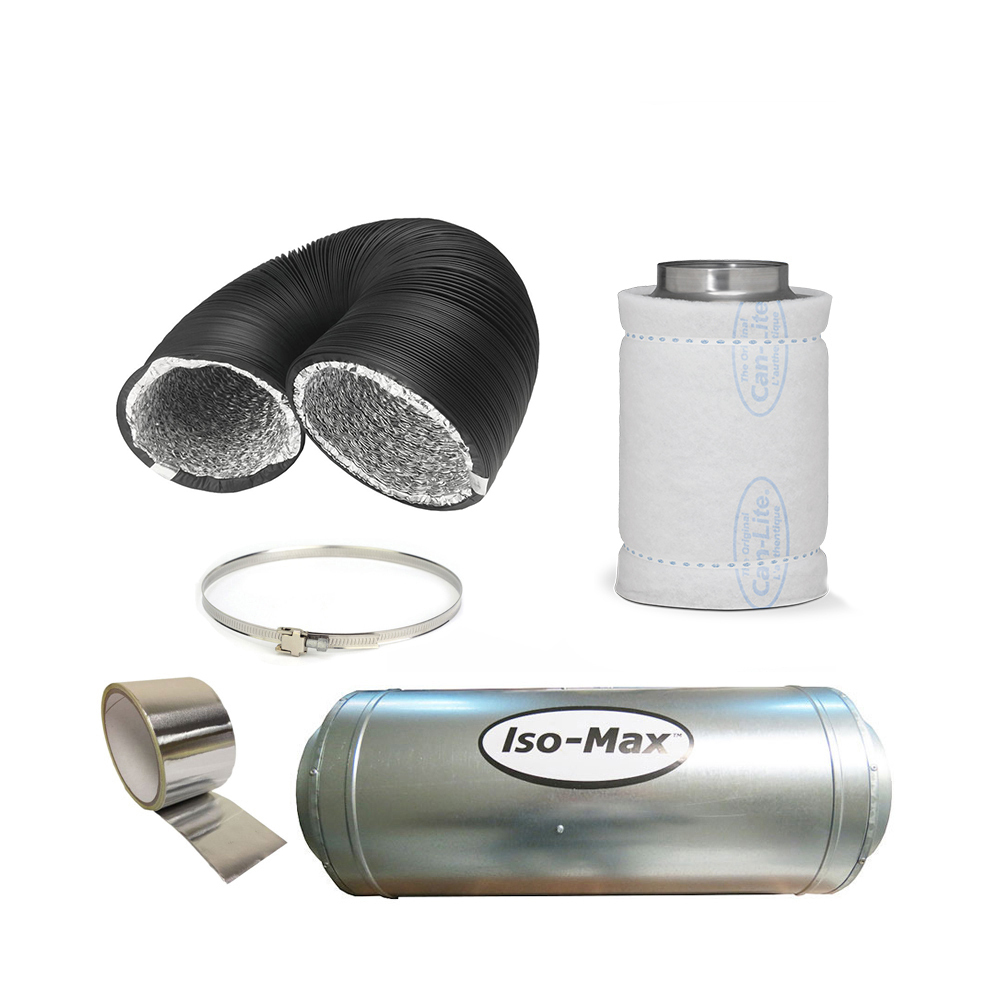

What's in the Box
- [1] x Can-Fan Iso-Max Fan - 150MM | 244CFM | Silenced Fan | Acoustic Silencer
- [1] x Can-Lite 600 Carbon Filter - 353CFM | 150MM x 540MM
- [1] x Silver Foil Aluminium Insulation Duct Tape - 50MM x 50M | 30mu
- [1] x Black PVC Coated Dual Layer Air Duct - 5 Meters | 203MM (8" Inch) | Ventilation
- [1] x Fan Ducting Clamp - 152MM (6" Inch)
