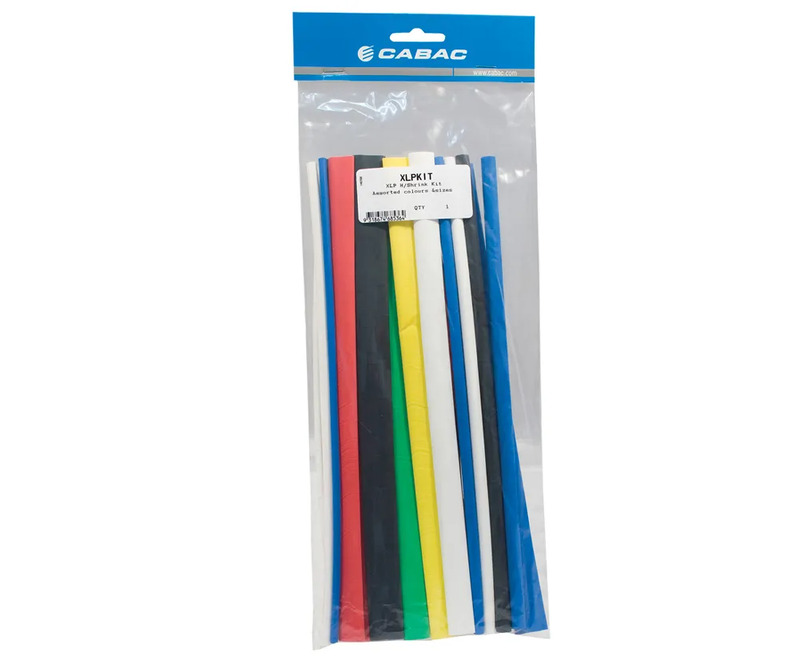

Cabac XLPKIT - 22 Piece Heat Shrink Kit 1.5mm to 125mm diameter - Assorted Colours

Description:

The XLP Heatshrink Kit contains various colours and sizes of XLP Thin Wall Heatshrink.

XLP tubing is a chemically cross-linked tubing that conforms to MIL-1-23053/5 class 3. It will withstand -75°C to 135°C for normal operating conditions and 200°C for short intervals. Black tubing withstands ultraviolet radiation. Tubing can easily be shrunk with a heatgun or a heat tunnel (Part No. HG2000 or HG2000C).

XLP Heatshrink Thin Wall Features:

• Highly flexible
• Flame retardant
• Abrasion and impact resistant
• For use in all electrical and electronic applications
• In-house cutting facility available for cut sleeves
• Full range 1.5mm to 125mm diameter with 2:1 shrink
• Available in most colours on reels or 4ft (1.2m) lengths
• Full range is UV stabilised

XLP tubing has numerous uses in the electrical and associated industries, including insulation, colour coding and mechanical protection.

Technical Data:

• Compliant Standards: UL224 VW1 File No. E197423
• Conformant Standards: MIL-1-23053/5; JIS
• Material: Chemically, cross-linked, thermally stabilised flame retardant polyolefin
• Continuous operating temp: -75°C to +135°C
• Shrinkage temp: > 100°C
• Longitudinal shrinkage: < 5%
• Tensile strength: 16 MPa
• Breakdown voltage: 25 kV/mm wall thickness
• Volume resistivity: 1.0 x 1014 ohm cm
• Elongation at break point: 400%
• Water absorption: 0.15% max
• Flammability: Passed ASTM-D-2671
• UV stability: All tubing is stable
• Voltage rating: 600V
