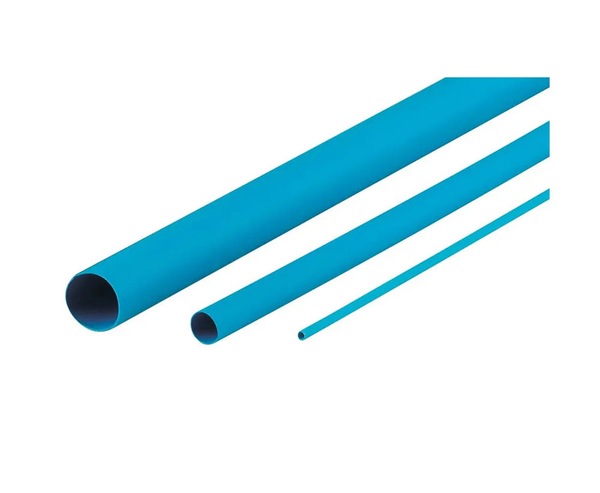

Cabac XLP38-BL4FT - Heat Shrink 38.1mm - 19.1mm 1.2mtr - Blue

Description:

The CABAC XLP range of thin wall heat shrink tubing is used to insulate, protect and colour code conductors in a range of applications related to the electrical and associated industries. This general-purpose heat shrink provides electrical and mechanical protection, while also defending against environmental factors such as common fluids and/or solvents. Our blue thin wall heat shrink sleeving is flexible, flame retardant, and resistant to impact, abrasion and UV radiation.

The XLP range of heat shrink tubing is made from polyolefin that has been cross-linked using high-energy electron beam technology. Upon the application of heat, the tubing will shrink down to approximately 50% of its pre-shrink diameter to deliver tight-fitting electrical and environmental insulation.

CABAC blue polyolefin heat shrink tubing is UL certified and complies with a number of international standards, including ASTM D2671.

Features:

• Pre-shrink diameter: 38.1mm
• After-shrink diameter: 19.1mm
• Recovered wall thickness: 1mm
• Length: 4ft (1.2m)
• Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
• Continuous Operating Temp: -75 to +135 degrees Celsius
• Shrinkage Temp: > 105 degrees Celsius
• Longitudinal Shrinkage < 5%
• Tensile Strength: 10.4 MPa
• Breakdown Voltage: 25 kV/mm wall thickness
• Elongation at Break Point: 400%
• Water Absorption: 0.15% max
• Voltage Rating: 600V
• Heat Shock: 250 degrees for 4 hours
