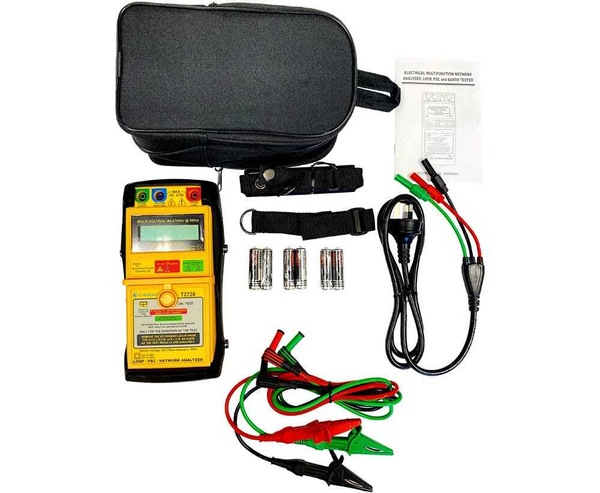

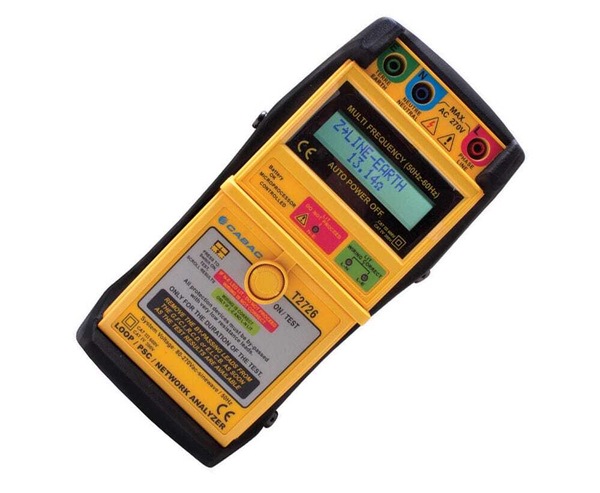

CABAC T2726 Loop Impedence and PSC Tester Network Analyser MAX AC 270V CATIII

DESCRIPTION:

• Electrical Network analyser, single phase, (fault loop impedance) with LED mains polarity supply indication and PSC
• Simple one test button action when LED correct
• Suitable for 50Hz sinewave, 230V, ±10%
• Test output about 13A pulses. Requires RCD bypass test techniques.
• Tests loops active/neutral, active/earth, neutral/earth, NST.
• Straps fixed to studs on rubber boots for easy to use position during use
• Colour coded terminals
• Up right stand at rear
• Automatic test. Microprocessor controlled display
• Correct/incorrect wiring indication
• One push button activation
• Housing rugged casing with soft rubber boot for overall impact protection
• Designed for testing to AS/NZS3017
• Test Sequence (microprocessor controlled):
• Voltage: L-N, L-E & N-E
• Impedance: L-N, L-E & N-E, plus transformer and line, neutral to MEN and Earth to MEN
• PSC - L-N, L-E (fault loop) & N-E
• Loop Impedance test (NST) according to AS474

TECHNICAL DATA:

• Dimensions : L205 x W90 x T55mm
• Batteries : 6 x 1.5V size AA
• Weight : 0.5kg with batteries
• Replacement Test Leads ’s TEL-EL or AL30RBGKIT.
