Bussman LMI "Little Block" Midi Fuse Holder Gangable 200a Max+

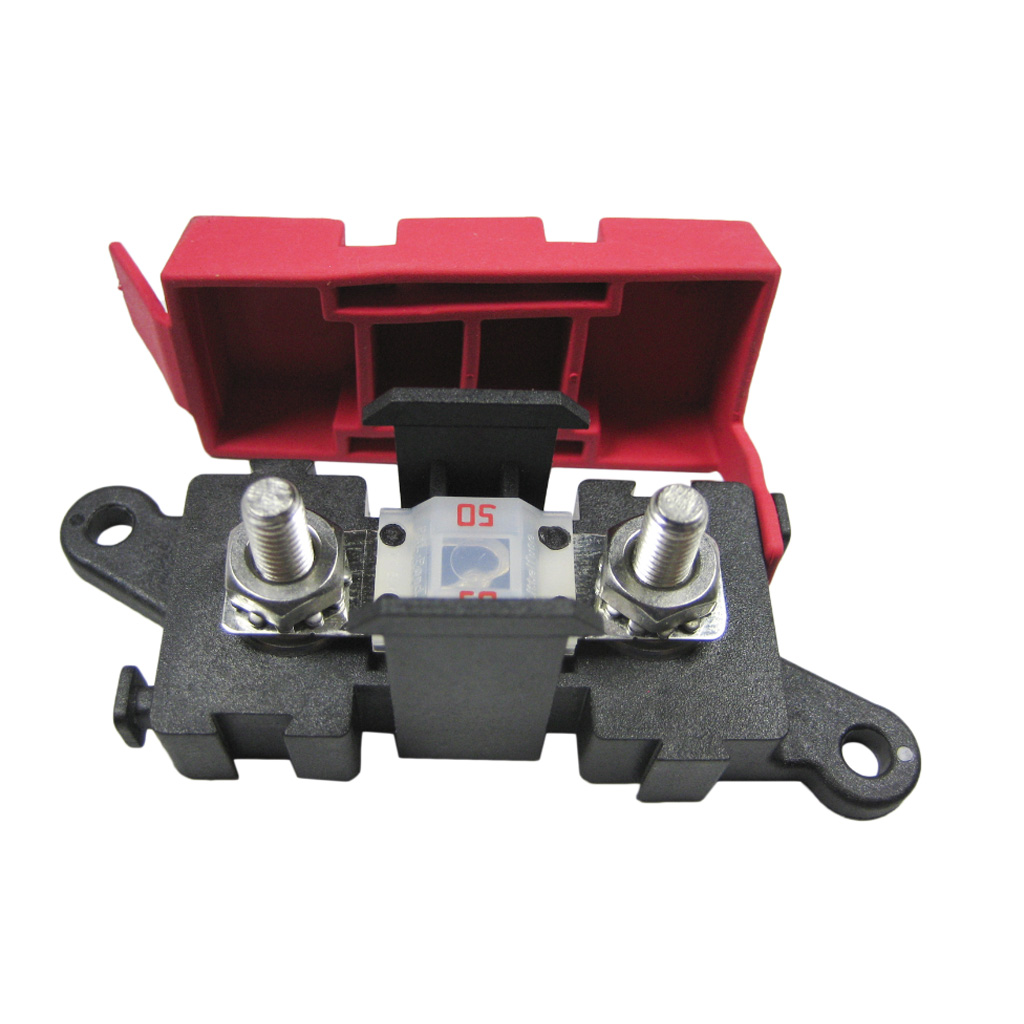

Bussmann now offers a heavy duty fuse panel called the LMI Little Block .

The LMI is used for main branch primary fusing and industry standard Midi fuses .

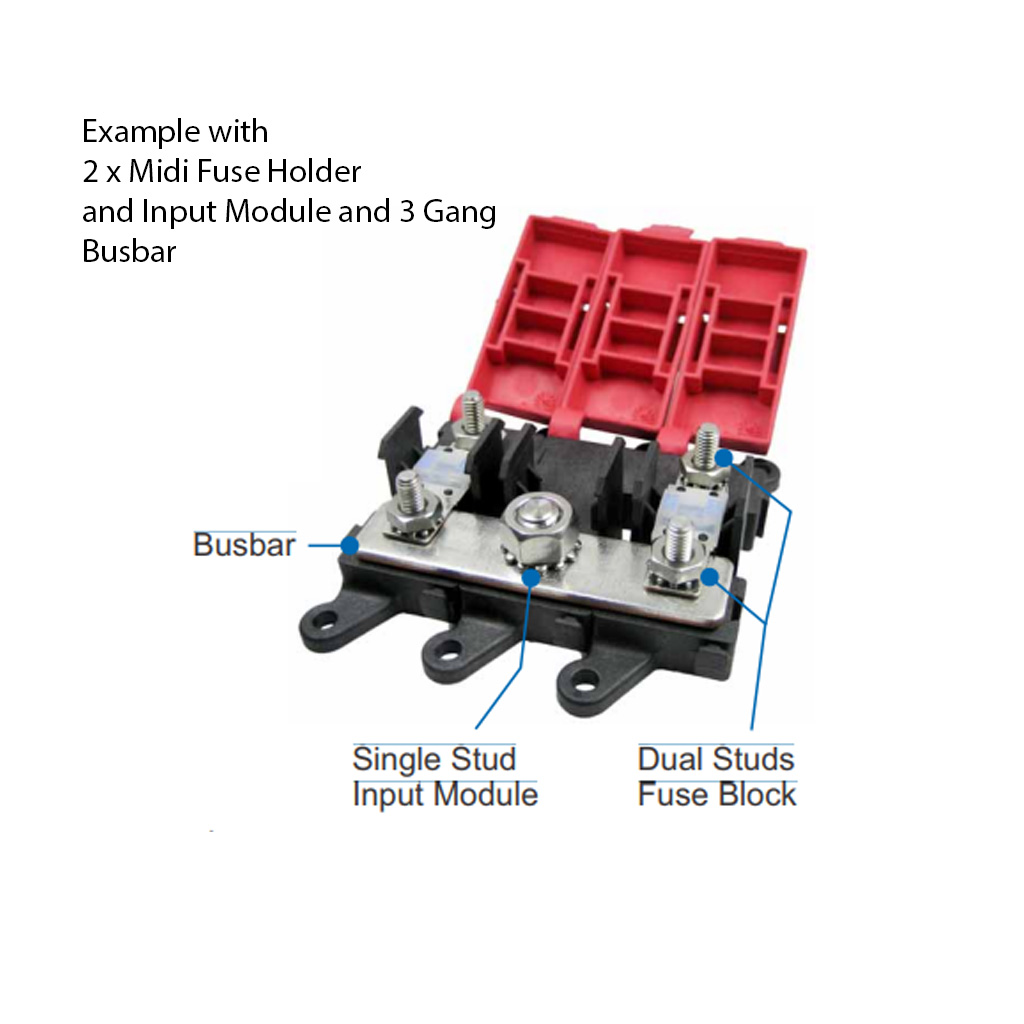

The LMI can be configured to fit up to 6 all bussed to a single input stud provides efficient power distribution suitable for many under the hood applications such as; Marine, Construction, Agriculture, Heavy Trucking, Bus and Specialty Vehicles

Ratings: Midi Fuse Block 200A. Max total combined rating is 400A continuous

Temperature: -40 C to 85 C

Housing: HTN black UL-rated 94V0 thermoplastic material

Cover: Red Santoprene cover for protection from accidental shorts

Studs : (Midi Fuse Block) M5 Stud & Keps Nuts

Notes: These feature a stackable side design to allow multiple module module Fuses & busbars are not included with blocks


Bussman LMI "Little Block" Midi Fuse Holder Gangable 200a Max

Bussman LMI "Little Block" Midi Fuse Holder Gangable 200a Max+

Bussmann now offers a heavy duty fuse panel called the LMI Little Block .

The LMI is used for main branch primary fusing and industry standard Midi fuses .

The LMI can be configured to fit up to 6 all bussed to a single input stud provides efficient power distribution suitable for many under the hood applications such as; Marine, Construction, Agriculture, Heavy Trucking, Bus and Specialty Vehicles

Ratings: Midi Fuse Block 200A. Max total combined rating is 400A continuous

Temperature: -40 C to 85 C

Housing: HTN black UL-rated 94V0 thermoplastic material

Cover: Red Santoprene cover for protection from accidental shorts

Studs : (Midi Fuse Block) M5 Stud & Keps Nuts

Notes: These feature a stackable side design to allow multiple module module Fuses & busbars are not included with blocks


Bussman LMI "Little Block" Midi Fuse Holder Gangable 200a Max


1120579
1120579
MPN: LMI1-M-1-0
