Bussman Blade Auto Circuit Breaker 10a - 30a Low Profile

Price	$12.30
	Collect 36 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Amps	Please select an option
Shipping	$6.90 Australia-wide
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

I.R.: 2000A @ 28VDC

Voltage: 28VDC

Holders: Blocks

Reset Mechanism: Type III, Manual Reset.

Body: UL-Rated 94V-0 thermoplastic.

Terminals: Tin plated copper alloy.

Operating Temp: -40 C to 85 C

Storage Temp: -40 C to 125 C

Pack Size: 1

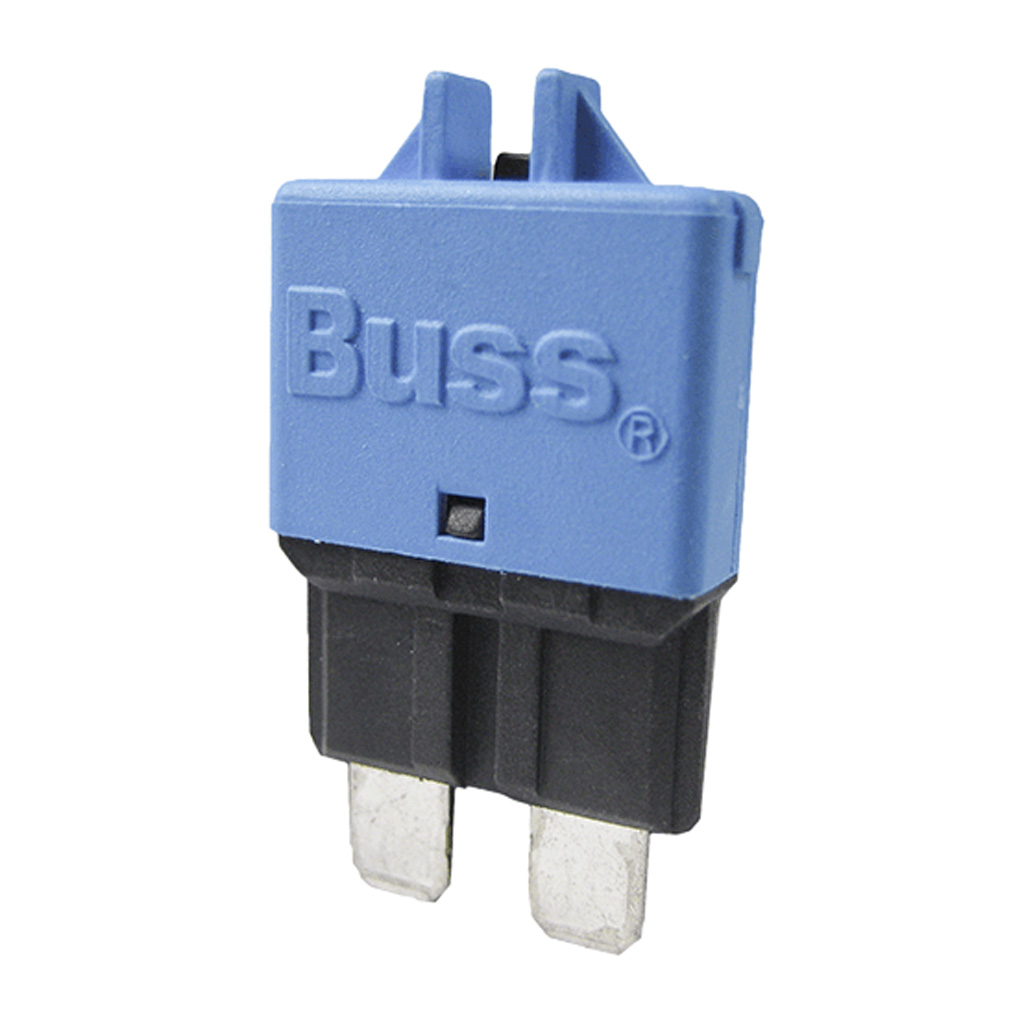

** One shown is 15a**

Bussman Blade Auto Circuit Breaker 10a - 30a Low Profile

I.R.: 2000A @ 28VDC

Voltage: 28VDC

Holders: Blocks

Reset Mechanism: Type III, Manual Reset.

Body: UL-Rated 94V-0 thermoplastic.

Terminals: Tin plated copper alloy.

Operating Temp: -40 C to 85 C

Storage Temp: -40 C to 125 C

Pack Size: 1

** One shown is 15a**

Low profile design.

Ignition Protected.

Cover is colour coded to amperage ratings.

Matches Auto fuse footprint of 5.2mm wide blades compatible with making it existing Auto fuse and panels fuse blocks .

Manual reset button on top features protective walls.

1039000
