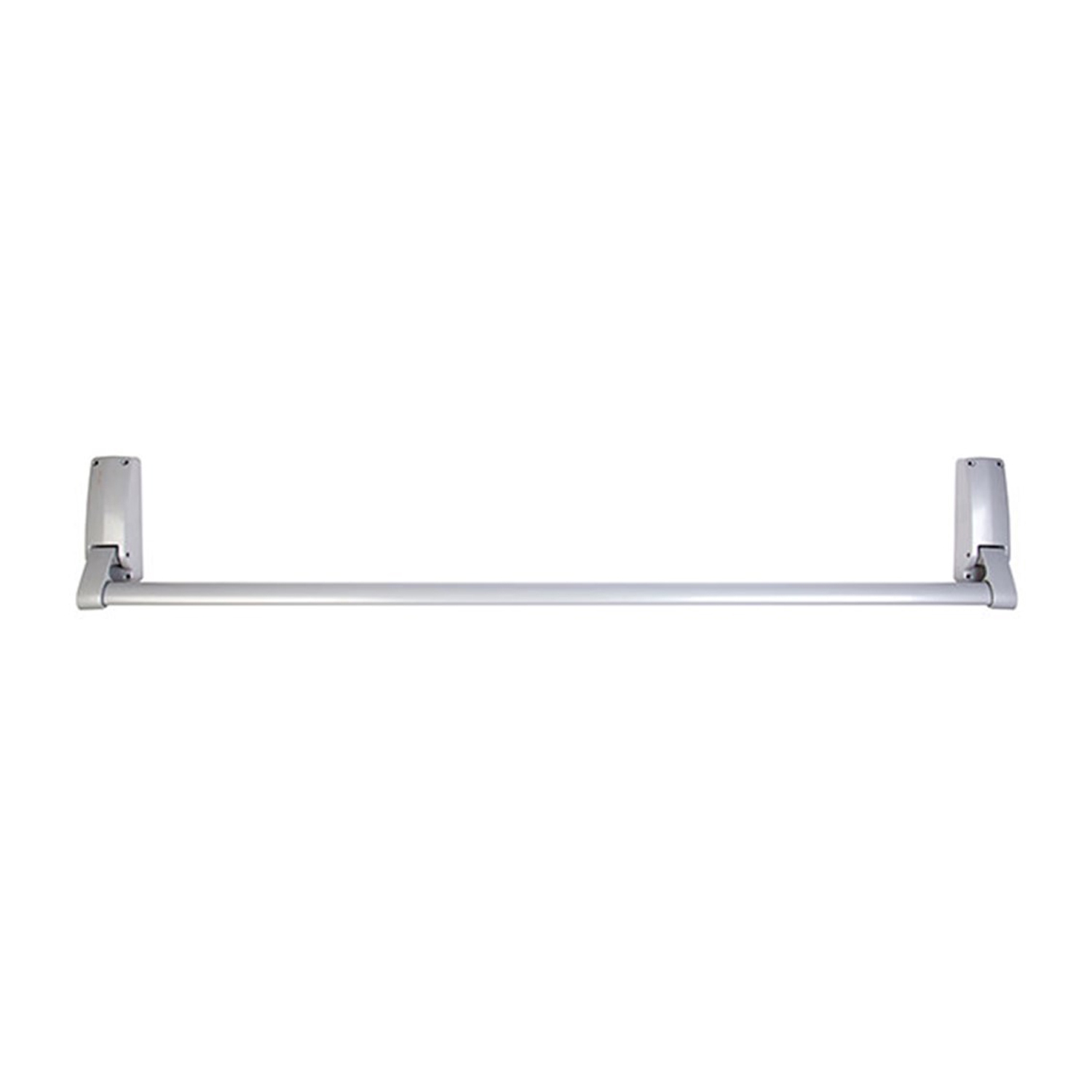

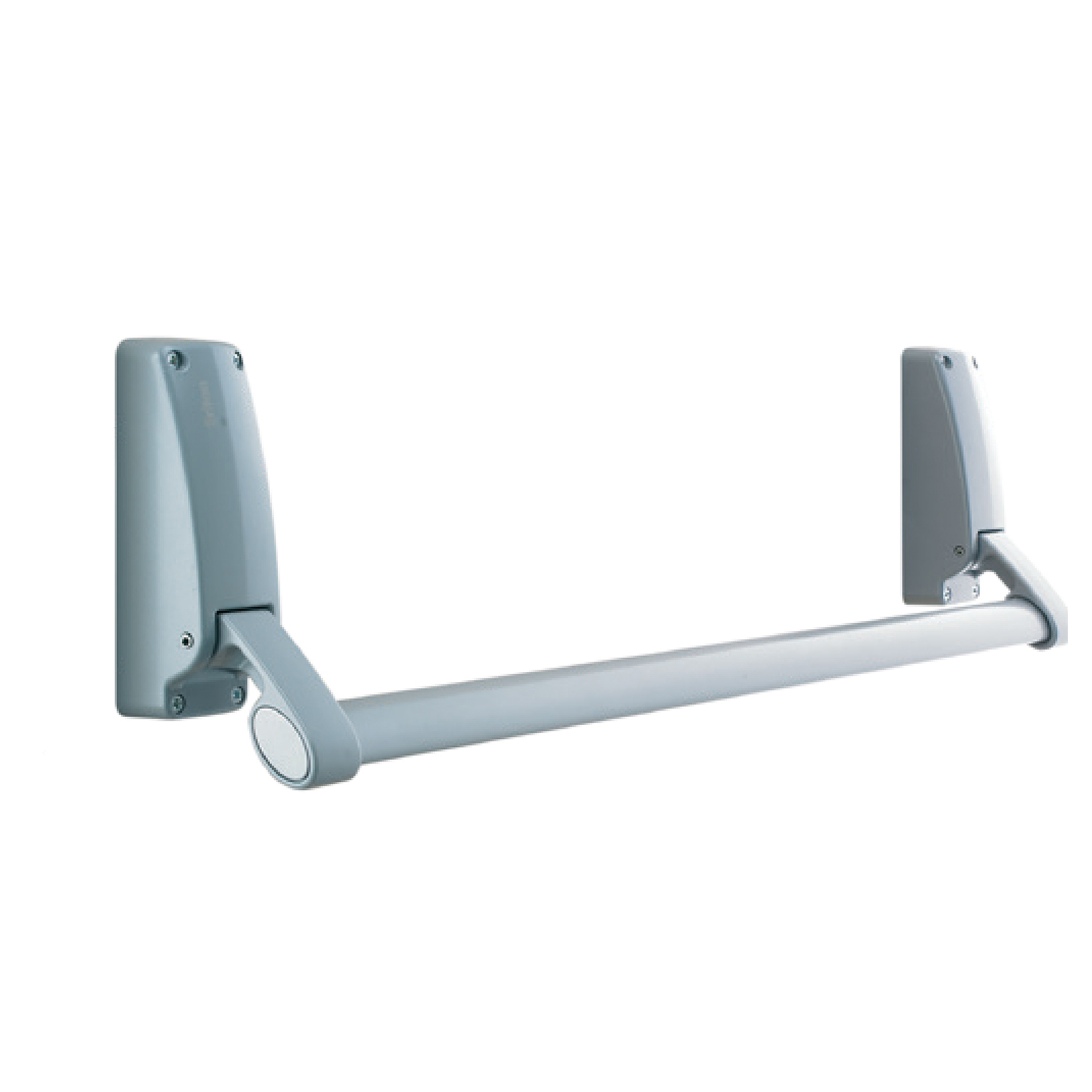

Briton Panic Bar Silver 2 Hour Fire Rated B379E/SE Suits Mortice Lock

Briton Panic Bar 2 Hour Fire Rated Suits Mortice Lock
B379E/SE

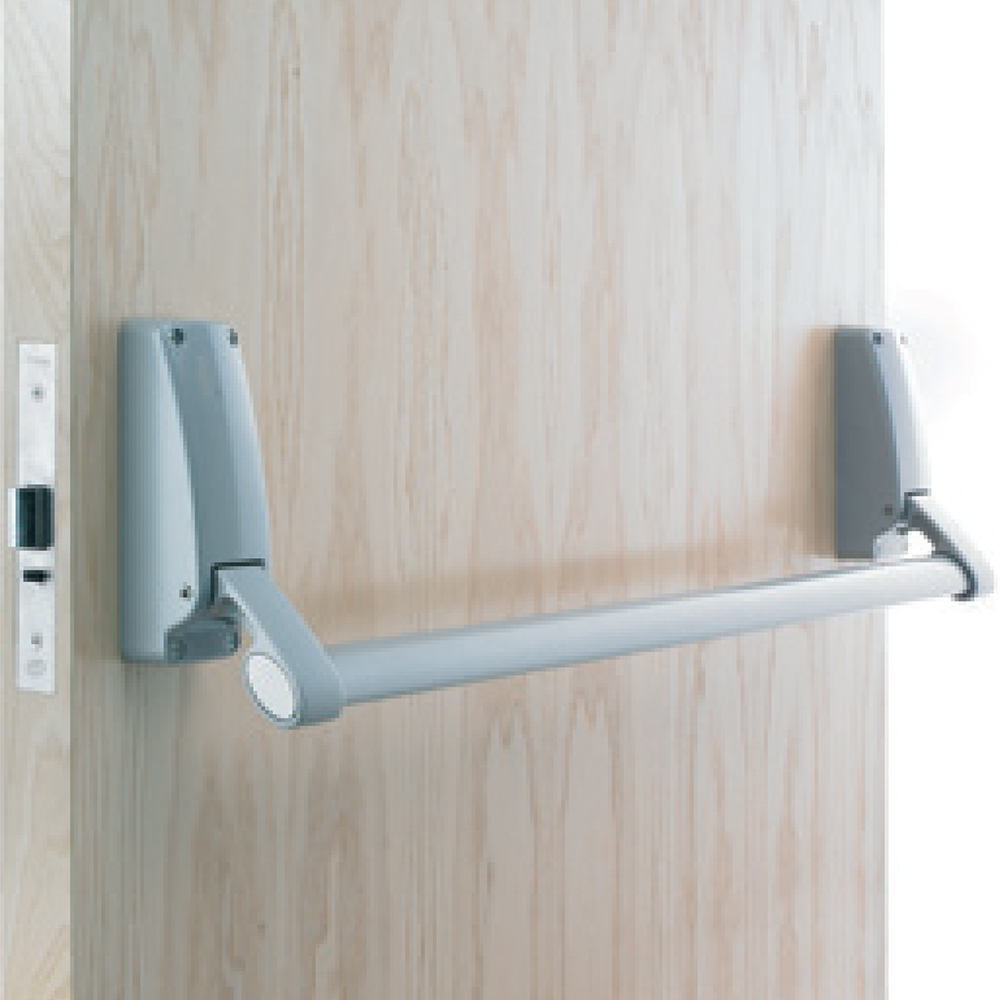

Panic Bars are push bars/crash bars installed on exit doors to allow quick exiting of buildings. (e.g. where emergency or panic situation could occur)

Panic Bar Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.

Note: Panic bar only, mortice lock & external furniture not included

• An economical range of push bar devices designed to suit single and double door applications.
• Can be used on aluminium, hollow metal or wood swinging commercial doors.

Features:

• Push bar on inside retracts the latch.
• Door is automatically locked when closed.
• Drives a mortice lock for side latching.
• Fitting a mortice lock allows key or lever access from the outside.
• Suitable for single doors. or on the first opening leaf in double door applications
• Can be used with the 376 Series (product code 50511160), double doors.
• Suitable for door width from 665 to 1300 mm.
• Supplied right handed, but can be handed on site
• Successfully tested up to 2 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

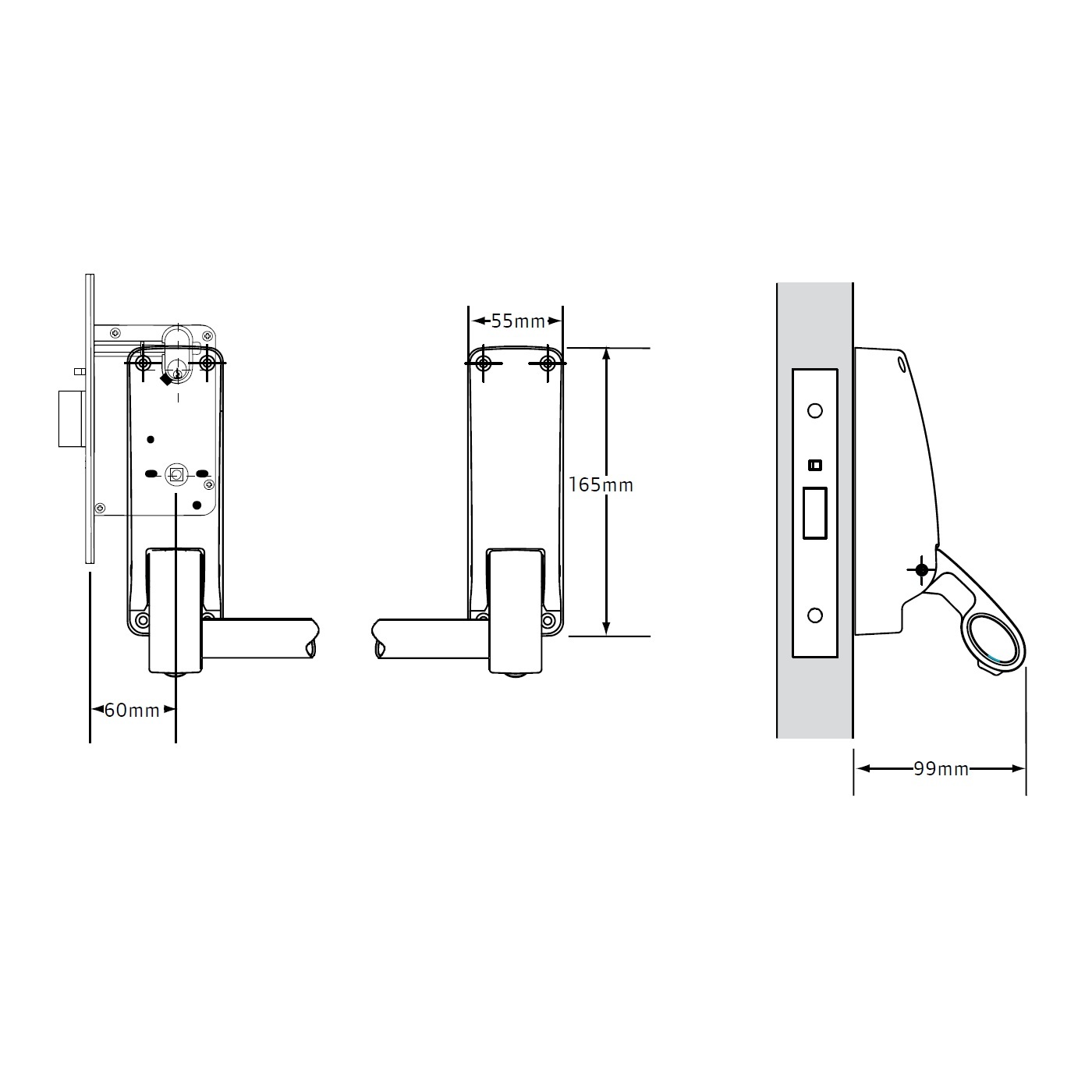

Specifications:

• Door Type: Timber or Metal
• Stile Width: 100mm minimum
• Door Width: 665mm to 1300mm
• Material: Zinc diecast chassis. Steel crossbars
• Warranty: 5 Years Supplied as Trade pack with all fixing hardware
• Finish: Silver Enamel
