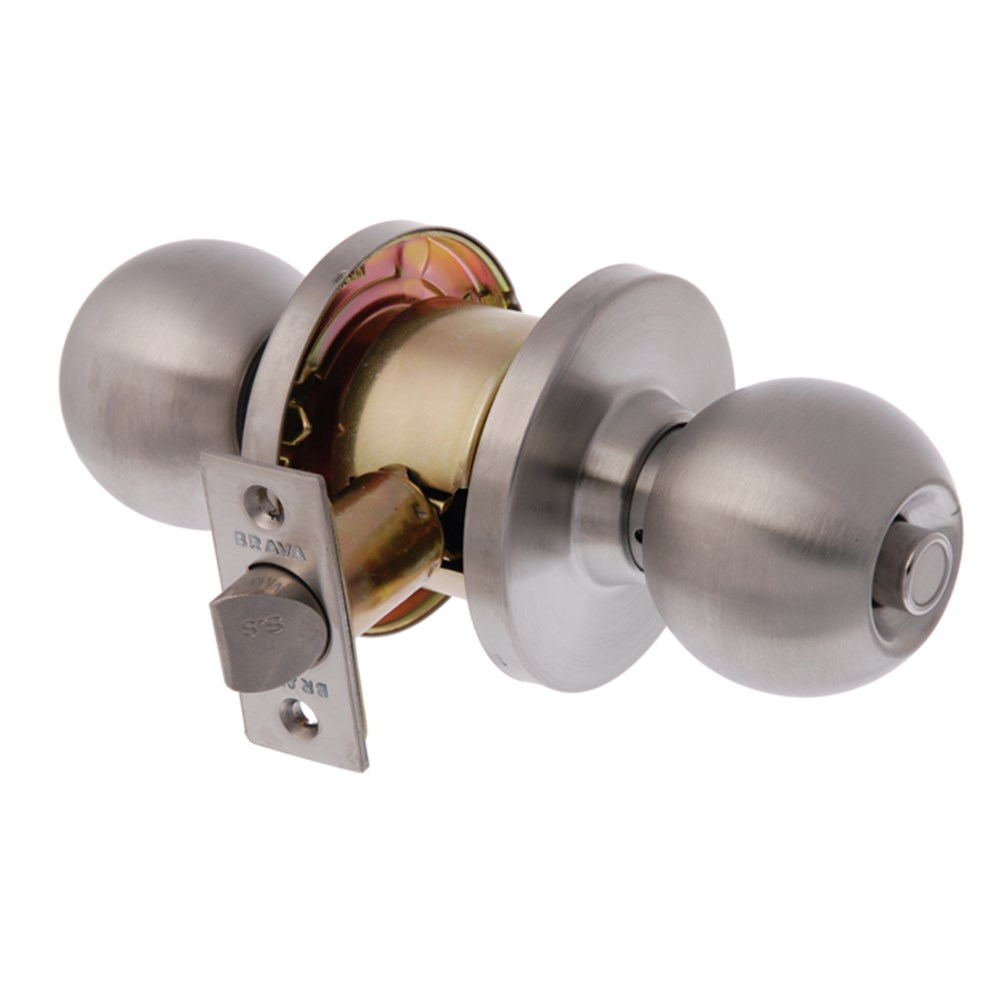

Brava Metro Privacy Knob Set Fire Rated 70mm Satin Stainless Steel EA3030SS70

Brava Metro Privacy Knob Set
EA3030SS70

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function:

• Outside opened by lever when free.
• Can be opened in an emergency situation with a coin or screw driver.
• Inside opened by lever at all times, external lever locked with turn button from inside.

Features:

• Automatic kick off
• Cylindrical fixing
• Boxed and colour coded

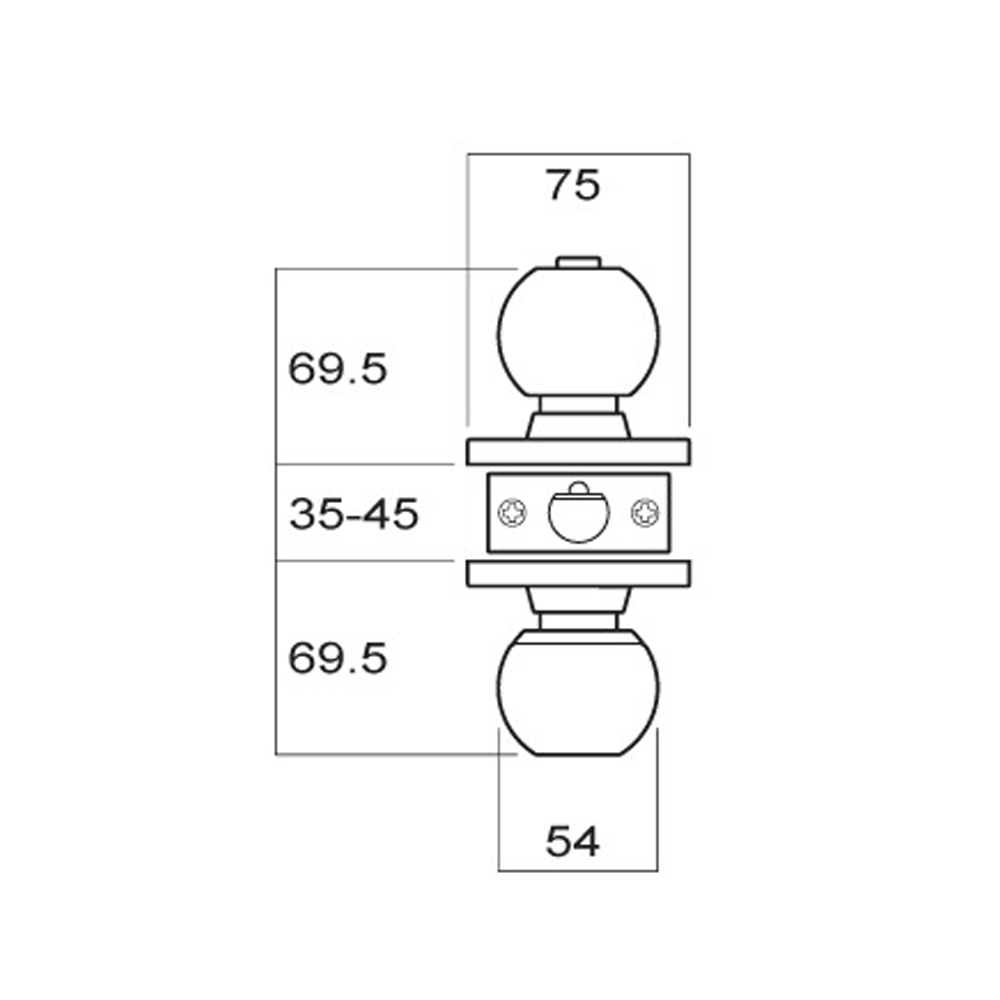

Specifications:

• Door Thickness: 35-45mm
• Backset: 70mm
• Max. Knob Projection: 69.5mm (distance may not include turnsnib)
• Strike: 70mm x 27mm x 1.2mm
• Latch: 70mm backset
• Latch Face Plate: 57mm x 25mm
• Door Handing: Non-handed knobs
• Rose: 75mm
• Finish: Satin Stainless Steel

Compliance:

• Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
