FEATURES
The DEWALT DCN692 18V XR 90mm Framing Nailer has two speeds (or power levels) to optimise the nailer for firing all lengths of nails. It's BRUSHLESS motor technology offers the power to fire 90mm ring shank nails into soft wood and 63mm into hard woods.
The nailer has two modes. The sequential operating mode allows for precision placement and the bump operating mode provides the user with production speed.Its mechanical rather than gas operation offers consistant performance and minimises cleaning/service requirements. Tool free stall/jam clearance minimises user down time.
The DCN692 has a versatile 30-34 magazine angle that will accept most clipped head and off centre round head paper tape or wire weld collated framing nails. Depths can be easily adjusted using the thumb wheel depth adjuster.
The nailer has excellent vibration and sound figures, which offer fantastic user protection. The tool has an ergonomic design to allow the nailer to fit easily between a 400mm centre stud. A reversable belt/rafter hook provides increased portability and versatility on the job site.
Increased visibility and durability along with protection for work-surface from the non-mar contact trip with lock-off to prevent accidental discharge of the fastener.
Ideal for the following applications:.
Stud Wall Installation, Roofing, Roof Battening, Joist Installation, Floor Board Installation, Fencing, Decking, Cladding Installation.
SPECIFICATIONS
Nail Diameter 2.8 - 3.3mm
Voltage 18V and 20V
Nail Length Capacity 50mm - 90mm
Magazine Angle 30°-34
Nailer Operating Mode Bump/Sequential
Front Handle Style Contoured/Overmold Magazine Capacity
55 Magazine
Loading Lock & Load
Jam Clearing Yes
Integrated Belt Hook Yes
Tool Height 330mm
Tool Width 120mm
Tool Length 340mm
Tool Weight 3.5 Kgs

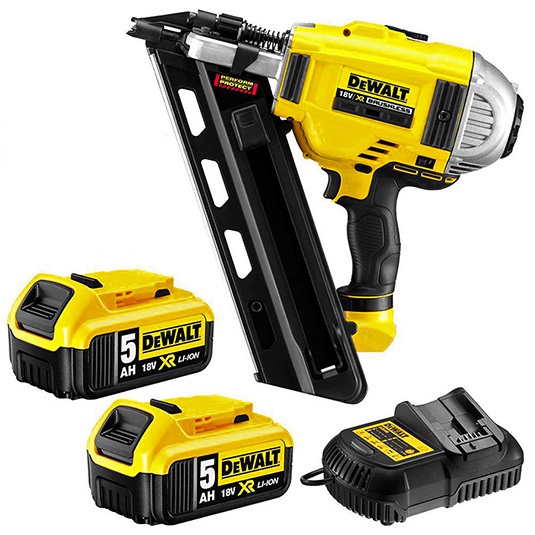

INCLUDES
Brand New Dewalt Brushless Nailer DCN692N
2 X Dewalt Batteries DCB184
Dewalt Charger DCB115
No Mar Tip
Bag
Instruction Booklet
