HEX70CS-KIT HDMI2.0 4K60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ extender set offers market leading features and outstanding value utilising CSC technology.

Extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoH (PoE) up to lengths of 70m (4K to 40m).

The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices.

The Receiver features simultaneous analogue stereo and digital coax audio breakout.

Key Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Features 1x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:Xtransmissions
  • HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
  • Supports bi-directional RS-232 pass through
  • Supports bi-directional IR pass through
  • Supplied with Blustream 5V IR receiver and emitter
  • Advanced EDID management
  • HDCP2.2 compliant

Specifications:

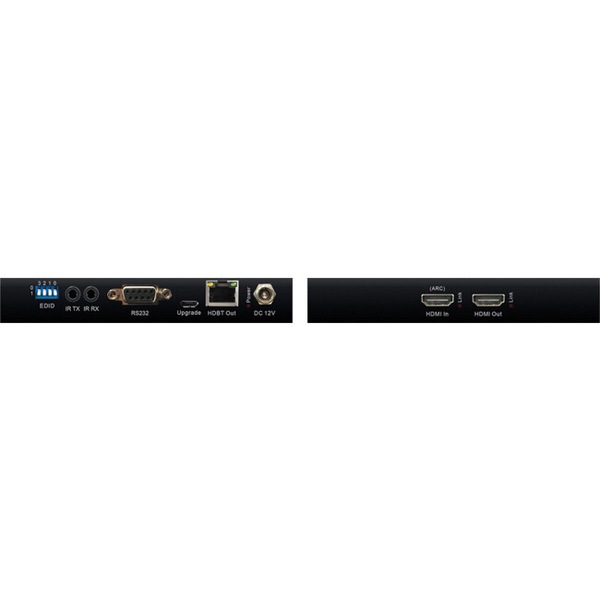

  • HEX70CS-TX transmitter
    • Video Input Connectors: 1x HDMI Type A, female
    • Video Output Connectors: 1x HDBaseT™ RJ45 connector, 1x HDMI Type A, female
    • RS-232 serial port: 1x DB-9 female
    • IR Input ports: 1x 3.5mm stereo jack
    • IR Output ports: 1x 3.5mm mono jack
    • EDID DIP switch: 4-pin

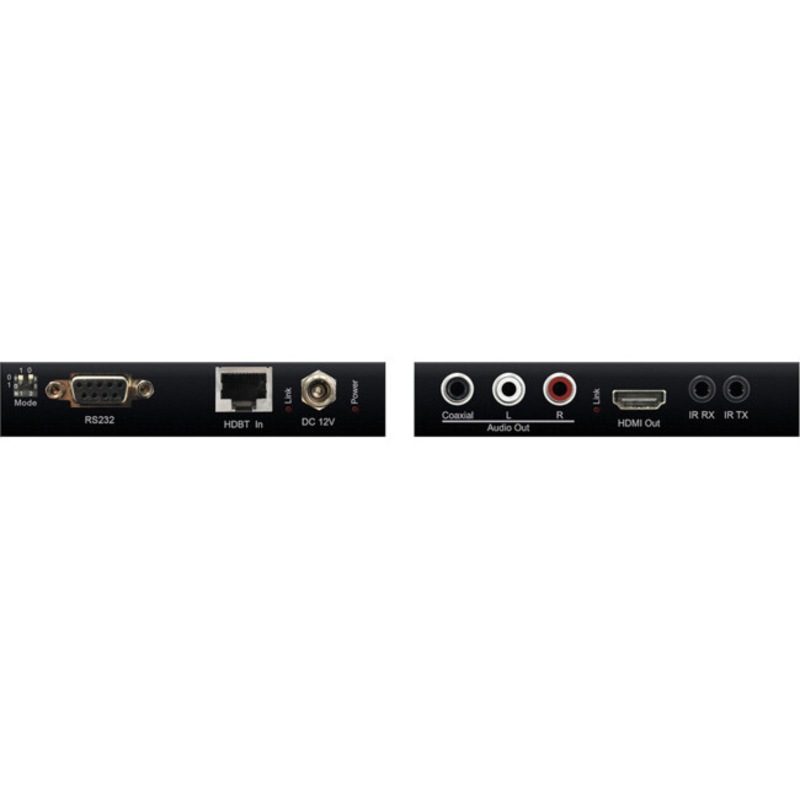

  • HEX70CS-RX receiver

    • Video Input Connectors: 1x HDBaseT™ RJ45 connector
    • Video Output Connectors: 1x HDMI Type A, female
    • RS-232 serial port: 1x DB-9 female
    • IR Input ports: 1x 3.5mm stereo jack
    • IR Output ports: 1x 3.5mm mono jack
    • Audio Output Connectors: 1x RCA (SPDIF) & 2x Analogue RCA (Left/Right)
    • Power Supply: 12V / 2A DC, screw type connector
  • Power Supply: 12V / 2A DC, screw type connector
  • Power Consumption: 12.7W
  • Transmitter Dimensions (WxDxH): 143 x 134 x 22mm (without connections)
  • Transmitter Dimensions (WxDxH): 143 x 141 x 22mm (withconnections)
  • Receiver Dimensions (WxDxH): 113 x 124 x 22mm (withoutconnections)
  • Receiver Dimensions (WxDxH): 113 x 138 x 22mm (with connections)
  • Ind. Extender Weight: 0.35kg (excluding accessories)
  • Carton / Box Dimensions (WxDxH): TBCmm
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Mounting kits included

Box Contents:

  • 1x HEX70CS-TX
  • 1x HEX70CS-RX
  • 2x Mounting brackets
  • 1x 12V / 2A power supply
  • 1x IR emitter
  • 1x IR receiver
  • 1x Quick Reference Guide
GTIN: 9340242002310
