Blustream 4K 100M RJ45 Video RCA Optical Audio HDBaseT CSC HDMI Extender Kit

Blustream 4K 100M RJ45 Video RCA Optical Audio HDBaseT CSC HDMI Extender Kit

Hurry! 1 items left!
Price
$1331.10
Collect 1331 Everyday Rewards points
Log in to MyDeal to link your card
Shipping
Free Shipping

Quantity
Maximum item limit (1) has been reached.


The HEX150CS-KIT extender set is an industry leading HDMI2.0 4K 60Hz 4:4:4 HDCP 2.2 HDBaseT™ solution utilisingCSC technology with video down conversion. Supports HDMI, bi-directional IR, RS-232and PoH (PoE) up to lengths of 150m over a single CAT cable. also provides enhanced features including ARC via HDMI or optical (S/PDIF) and Ethernet passthrough.

Key Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR support
  • Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 100m
  • Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI, HDCP, compatibility, and handshaking issues
  • Supports ARC (Audio Return Channel) from display via HDMI and optical digital inputs
  • Supports audio return to HDMI, optical digital, and analogue L/R audio outputs (analogue output supports 2ch PCMonly)
  • Supports all known HDMI audio formats including DolbyTrueHD, Atmos and DTS-HD Master Audio transmission
  • Bi-directional 10/100BaseT Ethernet pass through
  • Bi-directional IR & RS-232 pass through
  • Supplied with Blustream 5V IR receiver and emitter
  • Bi-directional PoH (Power over HDBaseT™) to power extenders from either transmitter or receiverend
  • Advanced EDID management
  • HDCP2.2 support

Specifications:

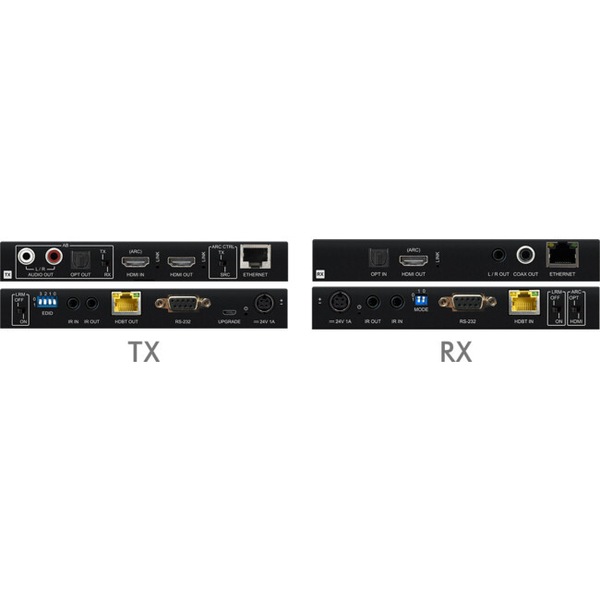

HEX150CS-TX

  • Video Input Connectors: 1 x HDMI Type A, female
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector
  • Audio Output Connectors: 2 x RCA (L/R), 1x Optical (S/PDIF)
  • Ethernet port: 1 x RJ45 connector
  • RS-232 serial port: 1 x DB-9 female
  • IR Input ports: 1 x 3.5mm stereo jack
  • IR Output ports: 1 x 3.5mm mono jack
  • EDID: 4-PIN DIP switch
  • Power Supply: 1 x 24V/1A DC, 4-pin DIN connector

HEX150CS-RX

  • Video Input Connectors: 1 x HDBaseT™ RJ45 connector,
  • Video Output Connectors: 1 x HDMI Type A, female
  • Audio Input Connectors:1 x Optical (S/PDIF)
  • Ethernet port: 1 x RJ45 connector,
  • RS-232 serial port: 1 x DB-9 female
  • IR Input ports: 1 x 3.5mm stereo jack
  • IR Output ports: 1 x 3.5mm mono jack
  • Power Supply: 1 x 24V/1A DC, 4-pin DIN connector
  • Casing Dimensions (W x D x H): 148mm x 134mm x 22mm (RX), 156mm x 123mm x 23mm (TX)
  • Dimensions including connections (W x D x H): 148mm x153mm x 22mm (RX), 156mm x 135mm x 23mm (TX)
  • Shipping Weight (Kit): 1.6kg
  • Operating Temperature: 32°F to 104°F (0°Cto 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Mounting kits included
  • Power Supply: 1 x 24V/1A DC, screw connector

Box Contents:

  • 1 x HEX150CS-TX
  • 1 x HEX150CS-RX
  • 1 x 24V/1A DC power supply
  • 1 x IR receiver
  • 1 x IR emitter
  • 2 x Mounting brackets
  • 1 x Quick Reference Guide
GTIN: 9340242003003
