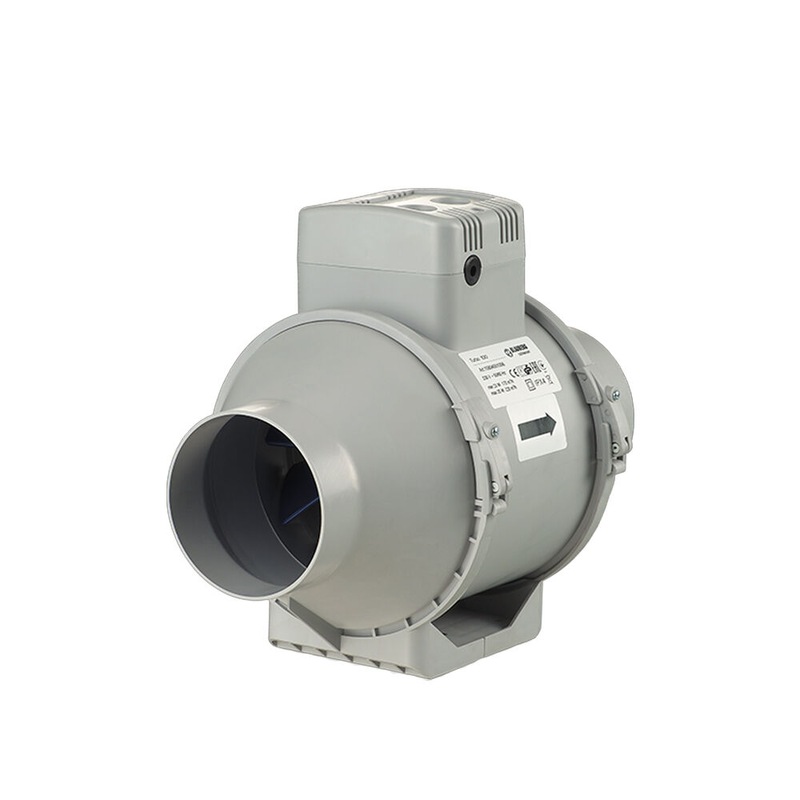

Blauberg Turbo Mixed Flow AC Fan - 100MM (4" Inch) - 130CFM - 2 Speed

USE

• Supply and exhaust ventilation systems installed in various premises. Mounting in kitchens, bathrooms and other humid premises. Ventilation air ducts requiring high pressure, powerful airflow and low noise level. Compatible with Ø 100 up to 315 mm round air ducts.

DESIGN

• Casing made of low-flammable polypropylene. Ventilation unit with terminal box. Can be turned to any position. Special casing design permits easy dismantling of the impeller and motor block for fan servicing without dismantling the air duct.

MOTOR

• Double-speed single-phase motor on ball bearings. Equipped with thermal overload protection.

SPEED CONTROL

• The control (minimum speed, maximum speed and shutdown) is executed with the integrated three-position switch (US modification) or with the external switch for multi-speed fans (specially ordered accessory).
• Smooth speed control is possible with a built-in speed controller (FR1 modification) or an external thyristor speed controller (available upon separate order).

Features

These Blaubergs mixed flow fans offer a range of features including;

• Casing made of low flammable polypropylene
• Single-phase motor on ball bearings

Specifications

• Duct Size (mm): 100
• Extract Capacity (m3/h): 170-220
• Noise Level (dBA): 27-32
• Power (watts): 23-25
• RPM: 1980-2545
• Width (mm): 196
• Height (mm): 241
• Depth (mm): 303
• Material: Polypropylene

What's in the Box

• [1] x Blauberg Turbo Mixed Flow Fan - 100MM (4" Inch) | 130CFM | 2 Speed
