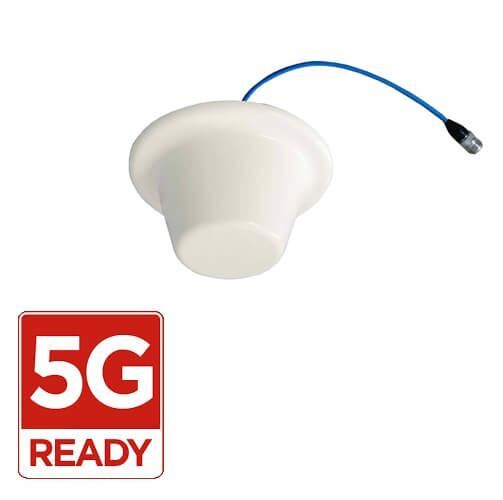

Blackhawk Ceiling Dome Antenna 698 to 4000MHz Low PIM Cable Tail N Female

Blackhawk Ceiling Dome Antenna 698 to 4000MHz Low PIM Cable Tail N Female

Price	$134.90
	Collect 402 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

Operating on all major 3G, 4G and 5G frequency bands, the Blackhawk Ceiling Dome Antenna is an ideal companion to Cel-Fi repeater systems installed in commercial and industrial buildings.
Indoor dome antennas are designed to be mounted to the ceiling of your building to provide consistently distributed mobile phone service from your Cel-Fi repeater/booster. The antenna is compact with a visually unobtrusive design similar to a smoke alarm, which also makes it suitable for installation in marine and caravanning.
Ceiling-mount antennas are installed by mounting through a ceiling tile or plasterboard and securing with its plastic wedge nut inside the ceiling space. The antenna’s Low PIM design supports multi-carrier aggregation and multiple mobile services output through the one antenna.

FEATURES

2 dBi gain across lower bands 698 to 960 MHz
5 dBi gain across mid bands 1695 to 4000 MHz
Low PIM RG-402 cable tail with N female connector

Connector	N \| 4.3-10 DIN Female
Dimensions	ᴓ 186×86 mm
Weight	0.25 kg
Reflector Material	Aluminium
Radome Material	ABS (UV Stabilized)
Operating Temperature	-40°C to + 65°C

ELECTRICAL SPECIFICATIONS

Frequency Range, MHz	698-960	1710-2700	3300-4000
Gain, dBi	2.0	5.0	5.5
VSWR	≤1.8	≤1.5	≤1.5
Polarization	Vertical
PIM, 3rd Order 2x20W	≤-150 dBc
Horizontal Beam-width	360°
Vertical Beam-width	85°	54°	28°
Input Impedance	50 Ω
Max. Input Power	50 W
Lightning Protection	DC Ground

GTIN: 9337692000492
