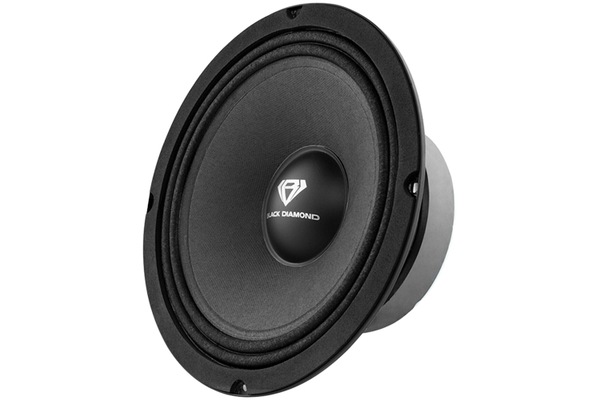

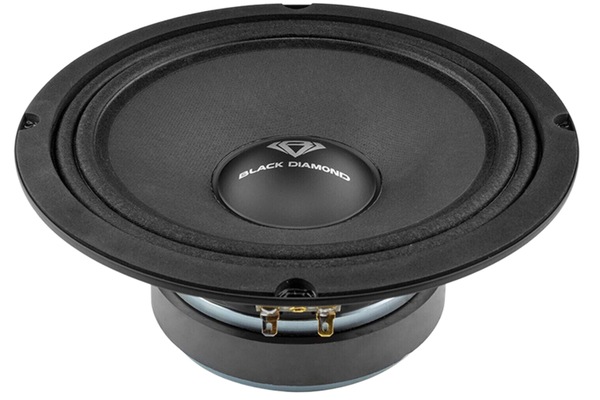

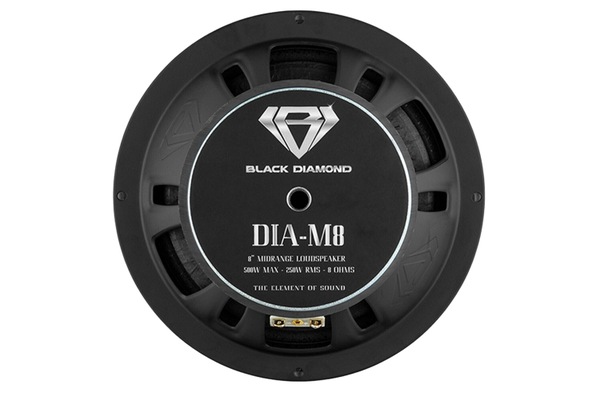

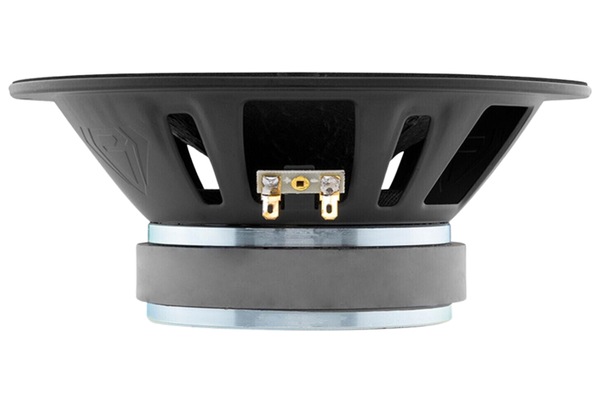

Black Diamond 8” Mid-range LoudSpeaker With Bullet 8-Ohm 500 Watts DIA-M8

Features:

  • Nominal Diameter: 8"
  • RMS Power Handling: 250W
  • MAX Power Handling: 500W
  • Nominal Impedance: 8 Ohm
  • Sensitivity: (1w/1m): 96 dB
  • Frequency Response: 115Hz-6.3KHz
  • Recommended Hi Pass Crossover: 120 Hz




  • Motor Specifications
    • Voice Coil Diameter: 1.5 / 38.6 mm
    • Voice Coil Former Material: Kapton
    • Winding Material: CCAW
    • Cone Material: Non-Pressed Paper
    • Surround Material: Cloth
    • Basket Material: Steel
    • Magnet Material: Ferrite
    • Magnet Weight: 30 oz
    • Displacement Volume: .66L
  • Thiele & Small Parameters
    • Equivalent Volume: 2.185L
    • Excursion: 9.3mm
    • Free Air Resonance: 100Hz
    • Mechanical Factor: 13.041
    • Electrical Factor: 0.684
    • Total Factor: 0.65
    • CD Resistance: 5.2 Ohms
  • Measurements
    • Overall Diameter: 8.22
    • Overall Depth: 3.38
    • Front Mount Baffle Cutout: 7.16
    • Mounting Depth: 3.11
    • Motor Diameter: 4.72


* DISCLAIMER: Design, features and specifications subject to change without notice. Some features in videos on the Internet may not be available on all models, please contact us for the TECHNICAL SPECIFICATIONS for a complete list of features by model. This feature list is for reference only, please contact us to verify features and functionality.
