DESCRIPTION
The 12V Submersible pump can be used in a variety of configurations. Just fit a delivery hose to allow fast and simple fuel transfer. Rapid diesel refueling, water & thin oils transfer from storage tanks to various vehicles with no spillage. Can also be used for bilge discharging of boats & similar vessels, small pools etc.
FEATURES
Perfect fit for 44 gallon drums
12V DC Max draw 11 amps
32 L/min open flow
Suitable for Diesel, Oil and Water

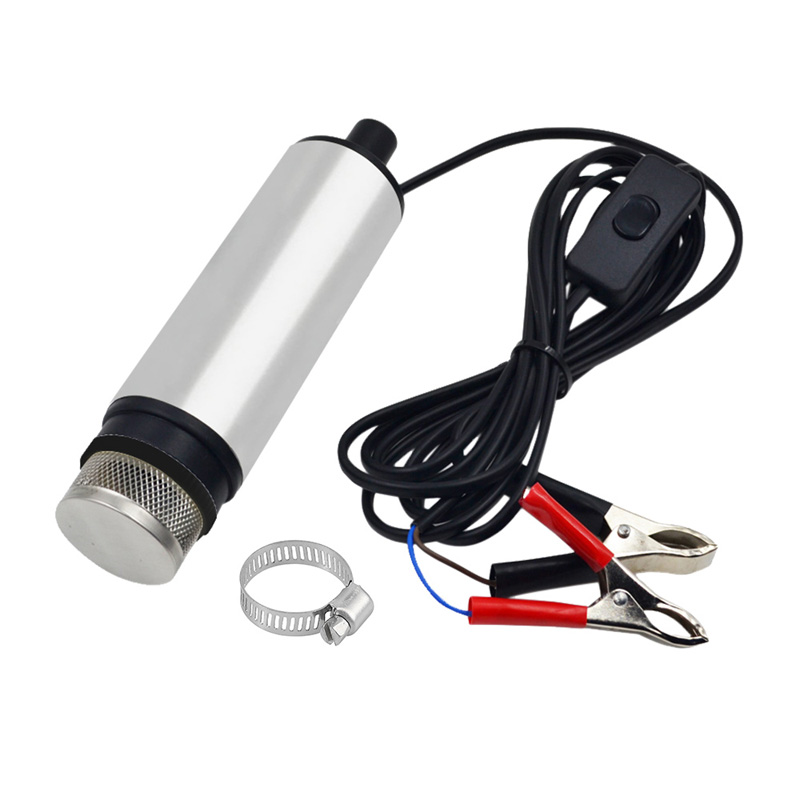

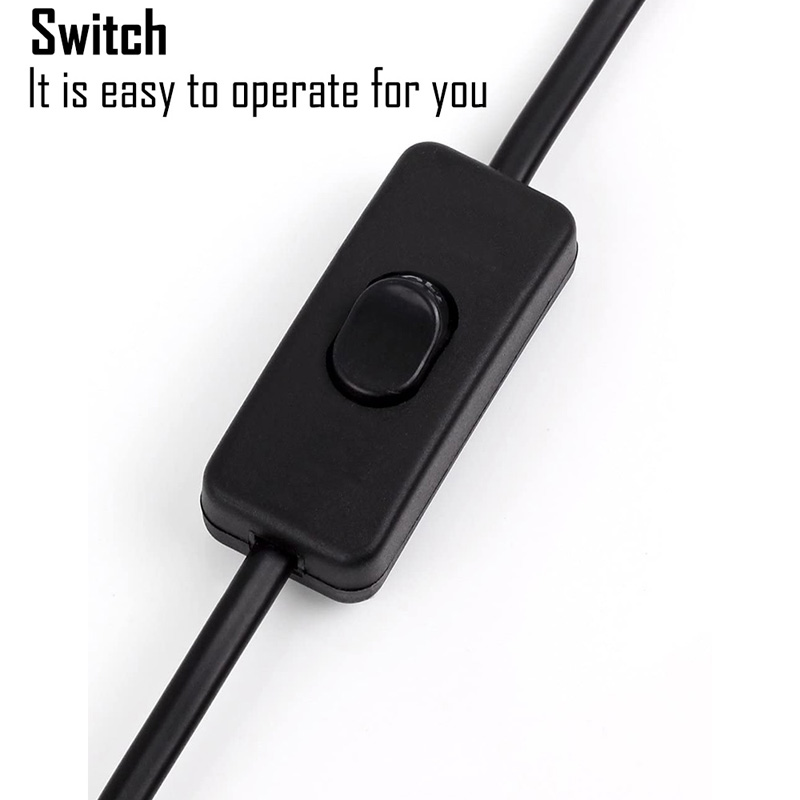

On/off Inline Switch + 2x Alligator Clips
Easy low fuss operation

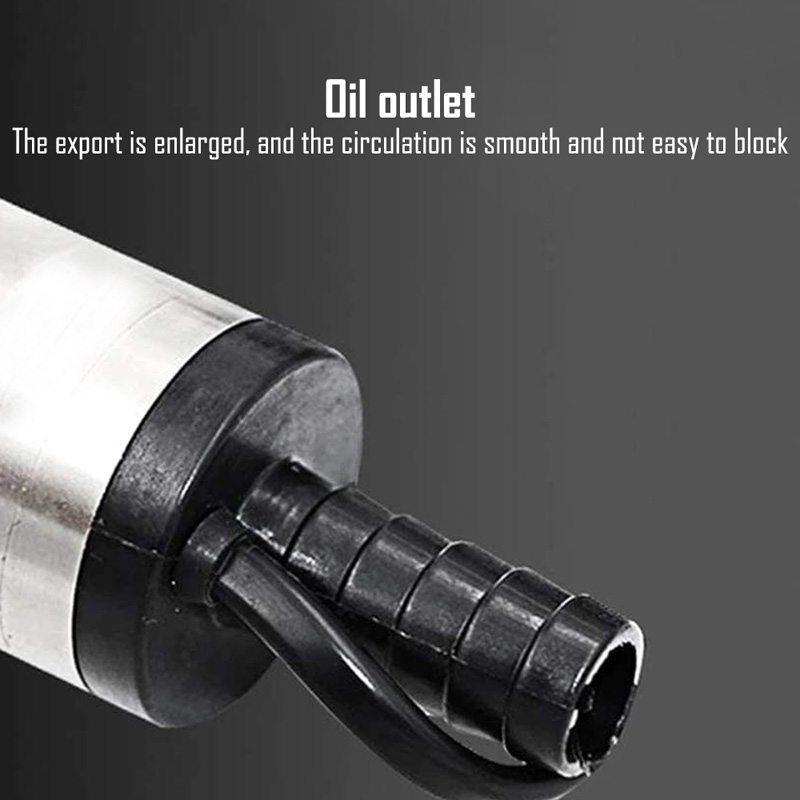

¾" Hose tail Connection Fast installation
Centrifugal impeller (non-positive displacement)
Max 43psi pressure
SPECIFICATIONS
Voltage:DC 12V
Power:60W
Product Weight: 510g

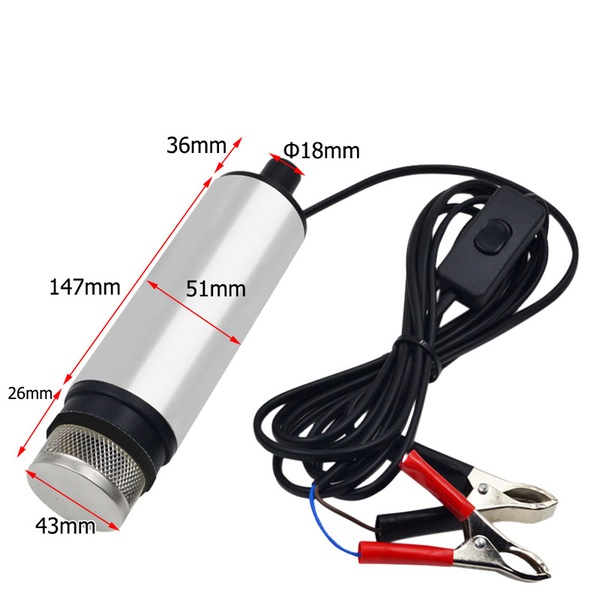

Size: 209*51mm
Pump max flow 32L/min
Max Rpm 8500r/min

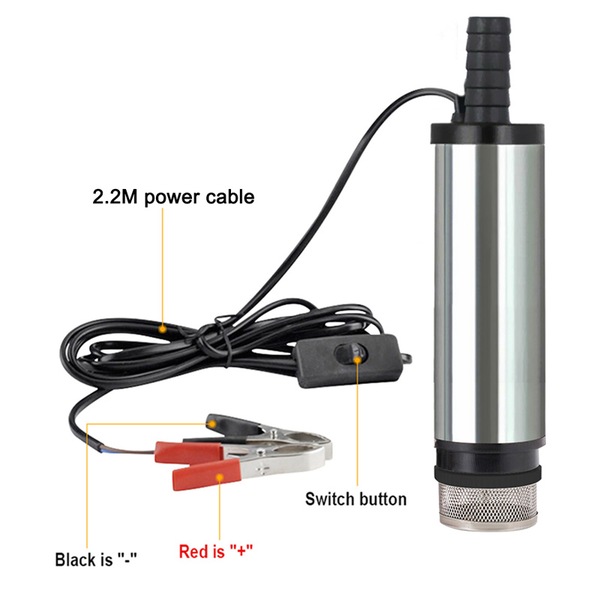

Cable length 2.2M
Outlet hose diameter 18MM
Outer pump diameter: 51MM
Method Of Application:
1.Take a good self-contain oil hose, and then the pump completely into the clean oil (or water) .
2.Put 12V/24V plug in a car battery or a cigarette lighter rather.

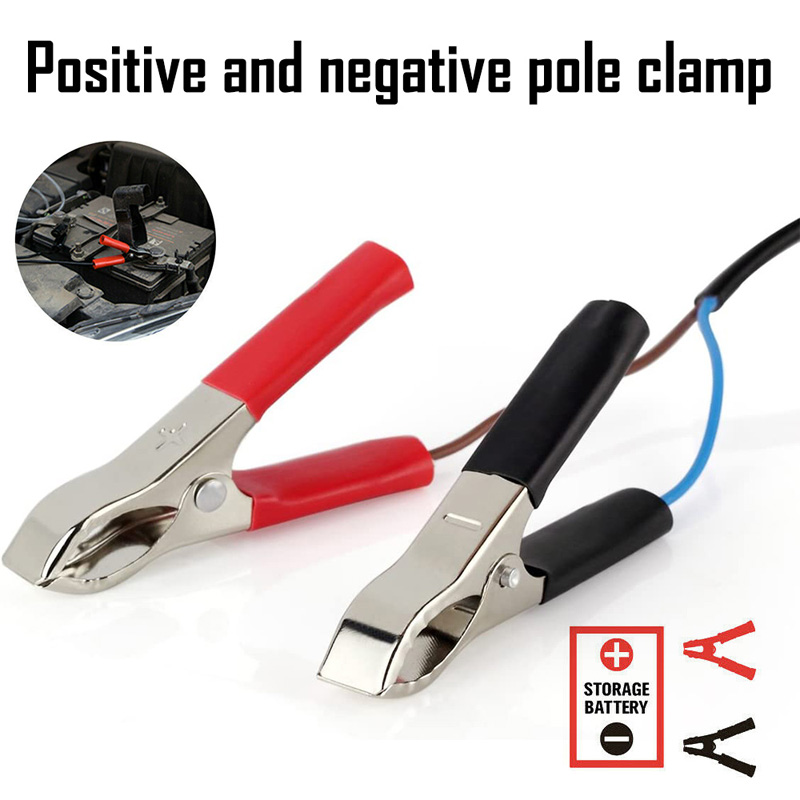

3.The red click is to connect positive pole, the black click is to connect negative pole.
4.The pump after use, should put the oil from the oil (or water out)
Notes:
1.Diesel pump operated by DC 12V motor, full sealed device.
2.The motor is insulated to the shell.
3.When it works, first should put clean diesel pump in the middle of diesel bucket, does not allow empty load operation.
4.Pay attention to the load capacity of bucket when the pump is running,do not exceed load capacity line.
5.The pump is strictly prohibited pumping gasoline, alcohol and other flammable liquids.
6.The oil outlet hose is self-provided .
7.This product is mainly composed of diesel, pumping, continuous work after 50 minutes, must cooling oil pump before use.
8.Don't make change the anode and cathode of battery clamp.
9. The pump need to be completely submerged in the liquid when it is used.
