Bianco 803809 VFD Borehole Pump Drive 3.0KW 240V

Bianco 803809 VFD Borehole Pump Drive 3.0KW 240V

Hurry! 10 items left!

Price	$3300
	Collect 3300 Everyday Rewards points Log in to MyDeal to link your card
Shipping	$75.00 Australia-wide (per item)
	See delivery details

Quantity

Add to wishlist

Description

Variable frequency drive for up to 3.0kW, 240V, 3 phase pumps.

Technical Specifications

Brand	Bianco iCON
Product Type	Borehole Pump Variable Frequency Drive
Suitable For	Borehole Pumps
Amps	16 Amps
Kilo Watts	3.0 kW
Powered	Electric
Warranty (months)	24 Months
Volts	240 V

Features

BOREHOLE PUMPS - VARAIBLE FREQUENCY DRIVES

Variable Frequency Drive

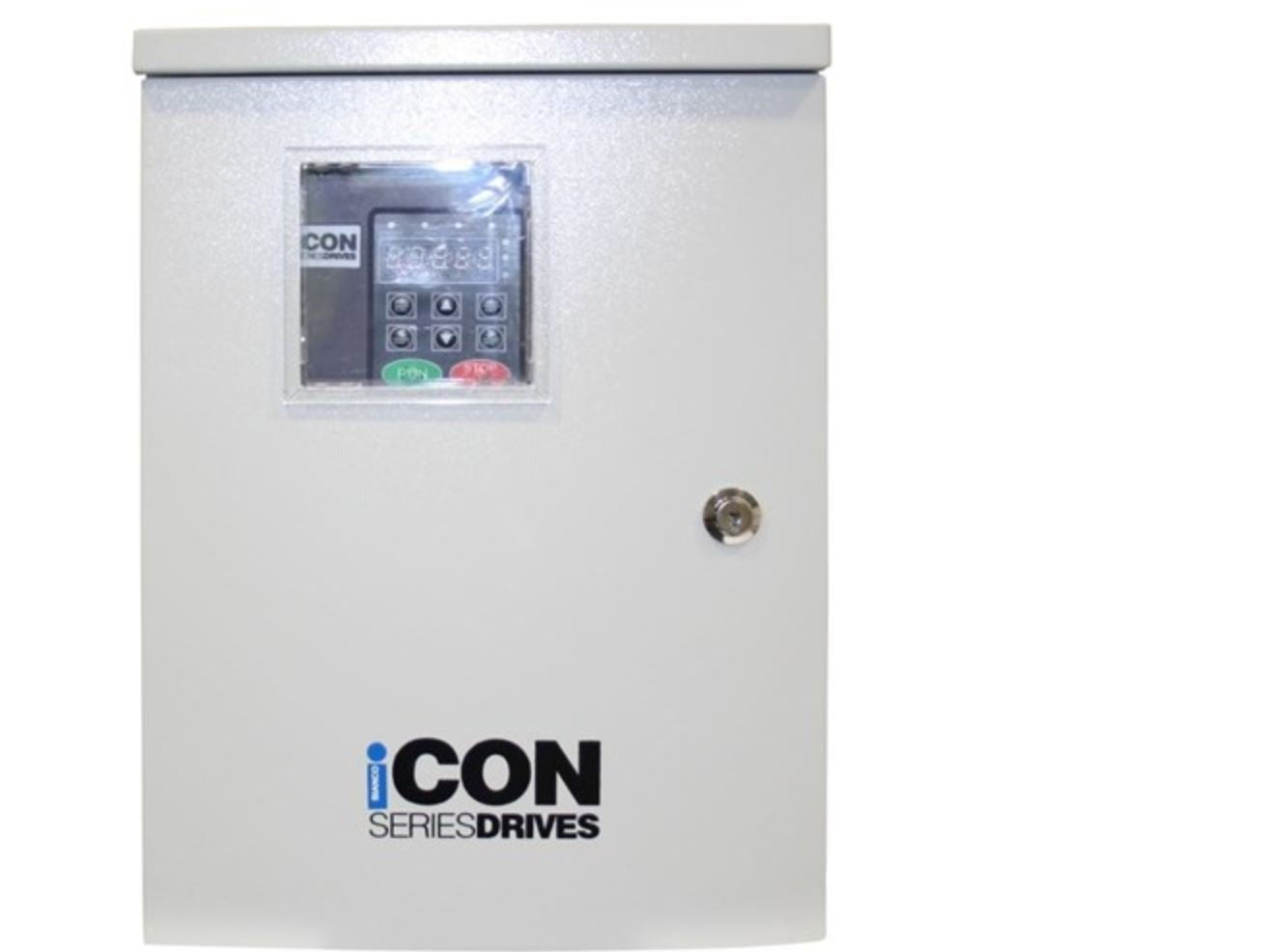

The BIANCO iSUB22 is a 240V single phase input variable frequency drive for the control of pumps up to 1.5kW, 240V 3 phase. It is particularly suitable for borehole pumps. It is mounted in an outdoor enclosure with independent fan cooling and inspection window. Also included is a 1" stainless manifold, pressure transducer and pressure gauge.

Features:

Constant water pressure
Optimises pump performance
Soft start, low motor start current
No large pressure tank required

Protection:

Dry run protection
High and low voltage protection
Input and output short circuit protection
High and low water pressure protection
Input and output phase failure protection
Over temperature protection
Sensor fault protection

Variable frequency drive for up to 1.5kW, 240V, 3 phase pumps.

The product image shown is for illustration purpose only

SKU: 803809
