[B650 GAMING PLUS WIFI] B650 Gaming Plus Wifi ATX Motherboard, DDR5 MB, AMD B650, AM5

[B650 GAMING PLUS WIFI] B650 Gaming Plus Wifi ATX Motherboard, DDR5 MB, AMD B650, AM5

SOLD OUT
Enter your email to receive a notification when this item is back in stock

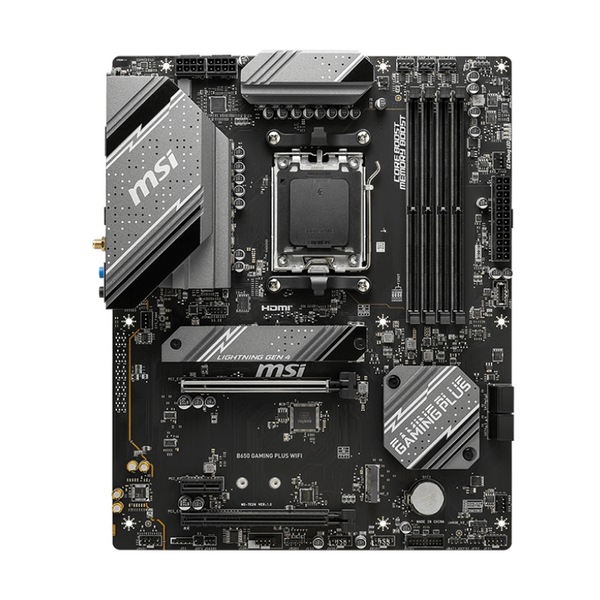

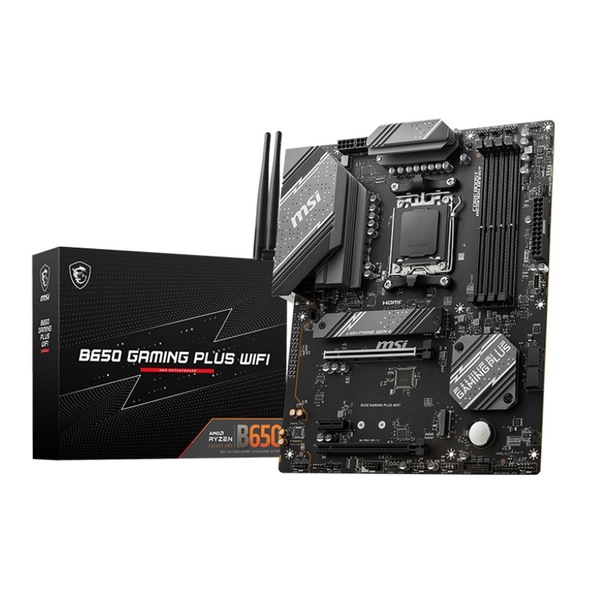

B650 GAMING PLUS WIFI

Features:
B650 GAMING PLUS WIFI
  • Supports AMD Ryzenâ„¢ 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
  • Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications:
  • CPU SUPPORT :Supports AMD Ryzenâ„¢ 7000 Series Desktop Processors
    Socket AM5
  • Memory :4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 6000+ MHz
    • 1DPC 2R Max speed up to 6000+ MHz
    • 2DPC 1R Max speed up to 6000+ MHz
    • 2DPC 2R Max speed up to 5400+ MHz
    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports AMD EXPO
  • Onboard Graphics :1x HDMIâ„¢
    Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Supports DP1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  • EXPANSION SLOT :2x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • Multi-GPU :AMD MULTI-GPU Support
  • Storage :2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
    M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    4x SATA 6G
  • RAID :Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices
    Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  • USB :4x USB 2.0 (Front)
    4x USB 3.2 Gen1 Type A (Rear)
    2x USB 3.2 Gen1 Type A (Front)
    3x USB 3.2 Gen2 Type A (Rear)
    1x USB 3.2 Gen2 Type C (Front)
    1x USB 3.2 Gen2x2 Type C (Rear)
  • LAN :Realtek® 8125BG 2.5G LAN
  • WIRELESS / BLUETOOTH :AMD Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX
    Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth® 5.3**
    * Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
  • Audio :Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
  • Internal I/O :1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    4x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    1x Tuning Controller connector(JDASH)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    2x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen2 Type C ports
  • LED FEATURE :4x EZ Debug LED
  • BACK PANEL PORTS :
    1. DisplayPort
    2. 2.5G LAN
    3. USB 3.2 Gen 2 10Gbps (Type-A)
    4. USB 3.2 Gen 1 5Gbps (Type-A)
    5. Wi-Fi / Bluetooth
    6. Audio connectors
    7. Flash BIOS Button
    8. HDMIâ„¢
    9. USB 3.2 Gen 2 10Gbps (Type-A)
    10. USB 3.2 Gen 2x2 20Gbps (Type-C)
  • OPERATING SYSTEM :Support for Windows® 11 64-bit, Windows® 10 64-bit
  • PCB Dimension (W x L) :ATX
    243.84mmx304.8mm
SKU: WSC-770014096251
