The 2000XT is a versatile, durable XLR plug-in transmitter designed to work with all professional low-impedance hand-held microphones. It is also housed in a die-cast metal case and has a convenient, unobtrusive shape and design. It gives the ability to choose a preferred XLR microphone for individual use and caters to the specific needs of that user. It works with all 2000 Series receivers and is powered by 2 "AA" batteries. It features all-new circuitry and has the capability to deliver 48V phantom power to your XLR microphone. For the ultimate in versatility and performance, the 2000XT is a must-have for any broadcast audio solution.
Broadcast spec, XLR plug-in UHF wireless transmitter with Digital Display, and Phantom Power. Works with 2000URX, 2000URX/Si, and Si-S receivers.
- Designed for broadcast, EFP & ENG applications
- 188 selectable UHF frequencies
- Die-cast case for durable performance

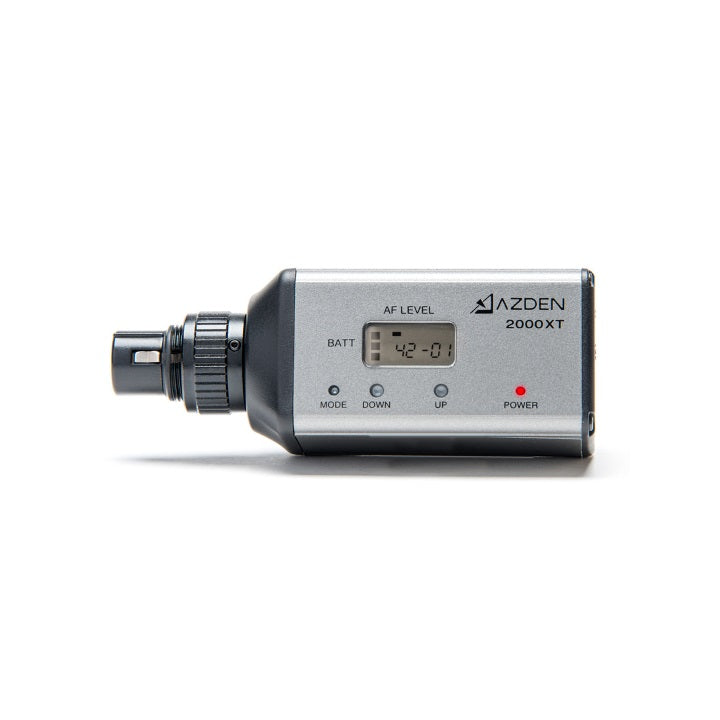

- LCD display for system monitoring
- Clear channel frequency search
- 6 preset channel groups for multiple system use
- 3-pin XLR locking ring connector

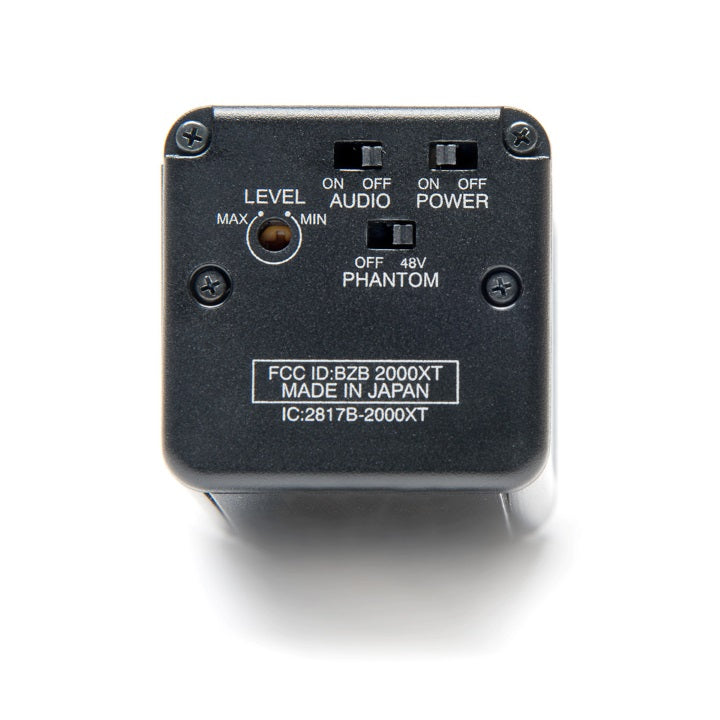

- Phantom power
Specifications:
- Transmitter Type: F3E FM
- Transmission Frequency: 188 selectable frequencies (UHF 638.125-661.875MHz)
- Output Power: 50mW
Oscillation: Crystal-controlled PLL Synthesizer
- -Tone Code Frequency: 32.768 kHz
- Noise Reduction: Proprietary Compandor
- Frequency Response: 50-18k Hz +/-1.5dB
- Microphone Input: Hirose 4 Pin
- Microphone Input Level/Impedance: ECM -60bBu/3.3k ohms

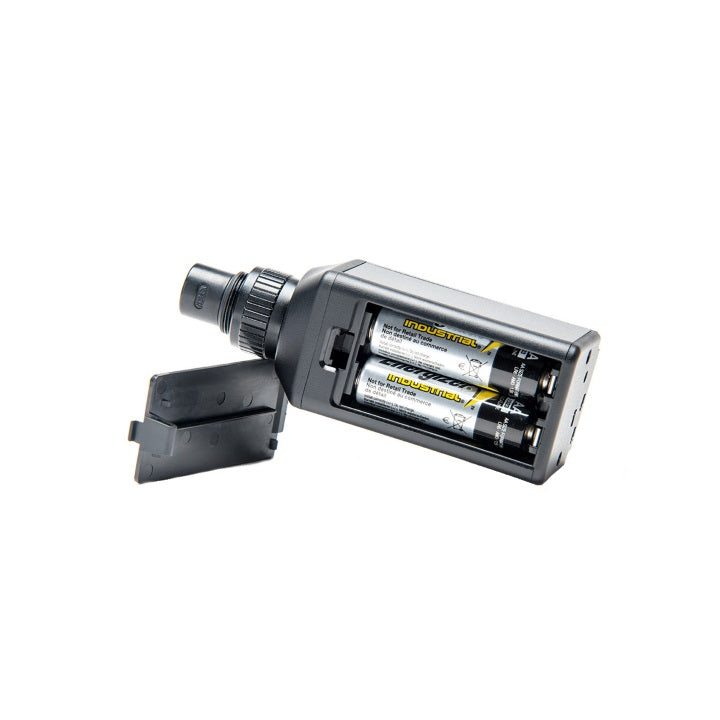

- Power Requirement: 2 AA Batteries
- Power Consumption: less than 130mA
- Battery Life: Up to 8 Hours
- LED/LCD Display: Full Function RF-AF Level, Diversity A/B, Frequency & Channel
- Size: 6.35 (W) x 10.16 (H) x 2.54 (D)
- Weight: 181.5 g
