Automatic Electric Gate Opener Standalone Solar Gate Opener Kit with Encoder System - APC Proteous 450 Sprint, ULTRA FAST Italian Made 24V DC Extra Heavy Duty APC Sliding Gate Automation System

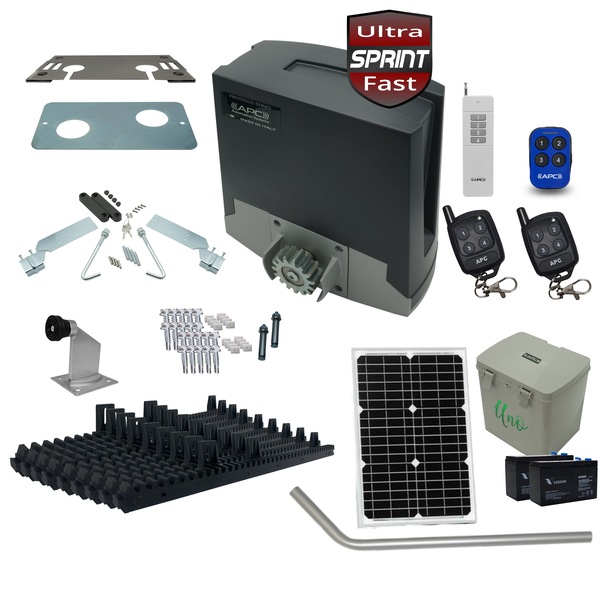

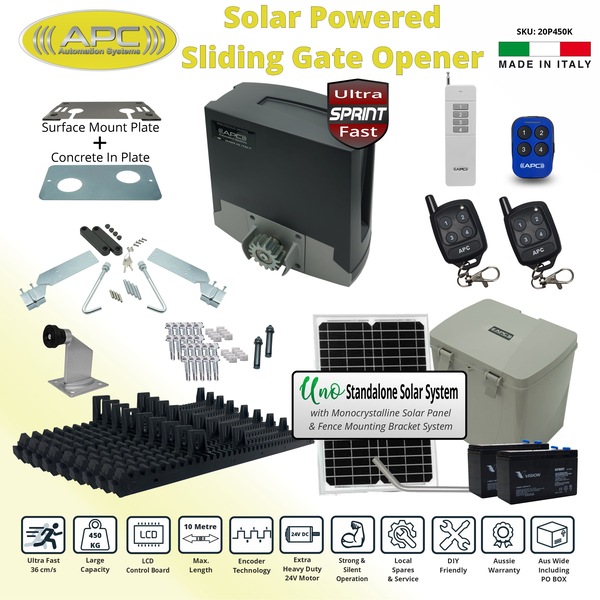

Gate Opener Kit Includes

• APC Proteous 450 Sprint ULTRA FAST Sliding Gate System(QTY: 1)
• APC Four Button Keyring Remote(QTY: 2)
• APC Sunvisor Remote(QTY: 1)
• APC Four Button Long Distance Remote(QTY: 1)
• APC Sun Power Series 12V/24V 10A PWM Solar Regulator(QTY: 1)
• APC Uno Multipurpose Battery Box(QTY: 1)
• 6m 2 Core 2mm Non-Shielded Cable(QTY: 1)
• V4 520mm Nylon Rack(QTY: 10)
• 115mm High Bolt Down Galvanized Gate Stop(QTY: 1)
• 9aH High Capacity Battery(QTY: 2)
• 24v 20 Watts Solar Panel(QTY: 1)
• Solar Panel Fence Post and Bracket for APC 20 Watt Solar Panels(QTY: 1)

Product Information

At a glance

The Proteous 450 provides the ultimate in operational speed whilst supported by a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.

System Features

• Ultra Fast 36 CM per Second Speed
• 70% Duty Cycle (Can operate for up to 42 Minutes of every 60 minutes)
• Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
• 450KG Capacity
• Ultra long 10 metre gate capacity
• Only 150mm Narrow Depth

• Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
• Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
• Fast and Slow Speeds are adjustable
• Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
• Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
• Party Mode System to keep gates opened when configured for use with the automatic close feature
• Underside cable entry with grommets
• Simple to setup left and right side magnet system
• All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
• Strong STEEL Pinion Gear
• Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)

• Energy Saving Mode (5mA Standby Current)
• Optional battery backup system
• Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
• Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
• Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
• Induction Loop Compatible for auto opening or as a safety device
• Supports programmable timers

• Adjustable Over current adjustments
• Built in Encoder with adjustable sensitivity
• Safety Sensor connection input configurable for open and/or closing
• Supports Safety Edges
• Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Accessories Compatibility and Controlling Options

• Constant DC Accessories Output
• Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
• Remote controls
• Induction Loops
• Weekly Timers
• Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
• Keypads (Wired and Wireless Options Available)
• Exit/entry sensors
• Intercom system with dry contact output
• Automatic switching timer
• WiFi Control System (App Based Control)
• GSM Control Systems (Mobile Call/SMS based Control)

24V 20 Watt Solar Panel (Upgradable to 40 Watt or 60 Watt options)

Mono Crystalline silicon solar cells with 3mm tempered glass and two sheets of tedlar-polyeaster-tedlar (TPT) and ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. The solar panel is supplied with a fence mounting bracket system along with a pre-connected 5 metre cable (maximum cable distance is 20 metres), the solar panel is also fitted with a diode to prevent feed back from the batteries.

APC Uno Standalone Solar System

The APC Uno is an articulate all-in-one design allowing for clean and secure housing the APC Sun Power Solar Regulator and multiple batteries.

Key Features:

• APC Sun power Regulator Built In
• Sleek contoured design
• Cable management entries for a clean installation
• Subtle grey to suit all installation environments
• Heavy duty 5mm galvanized 6 hole mounting plate Supports multiple mounting surfaces (piers, posts, walls etc.)
• Easy to access with the tool free clip lock system
• Can be secured with a small padlock
• Four output glands allowing for completely weatherproof entry/exit of cables up to 9mm OD each

24V 9aH Battery System

Supplied with the automation kit the 24V 9aH battery system will allow for continued use of the gate system wether in day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sun light. When the system batteries are fully charged it will continue to float charge to keep the batteries topped up ready for use. In a case of extended use requirments or higher duty there are upgrade options to 17aH and 33aH battery systems.

Specifications
