Automatic Electric Gate Opener APC T650 Whisper Quiet Linear Actuator Double Swing Gate Opener with Wi-Fi Smart Keypad, APP Access Control and Swipe Tag Reader

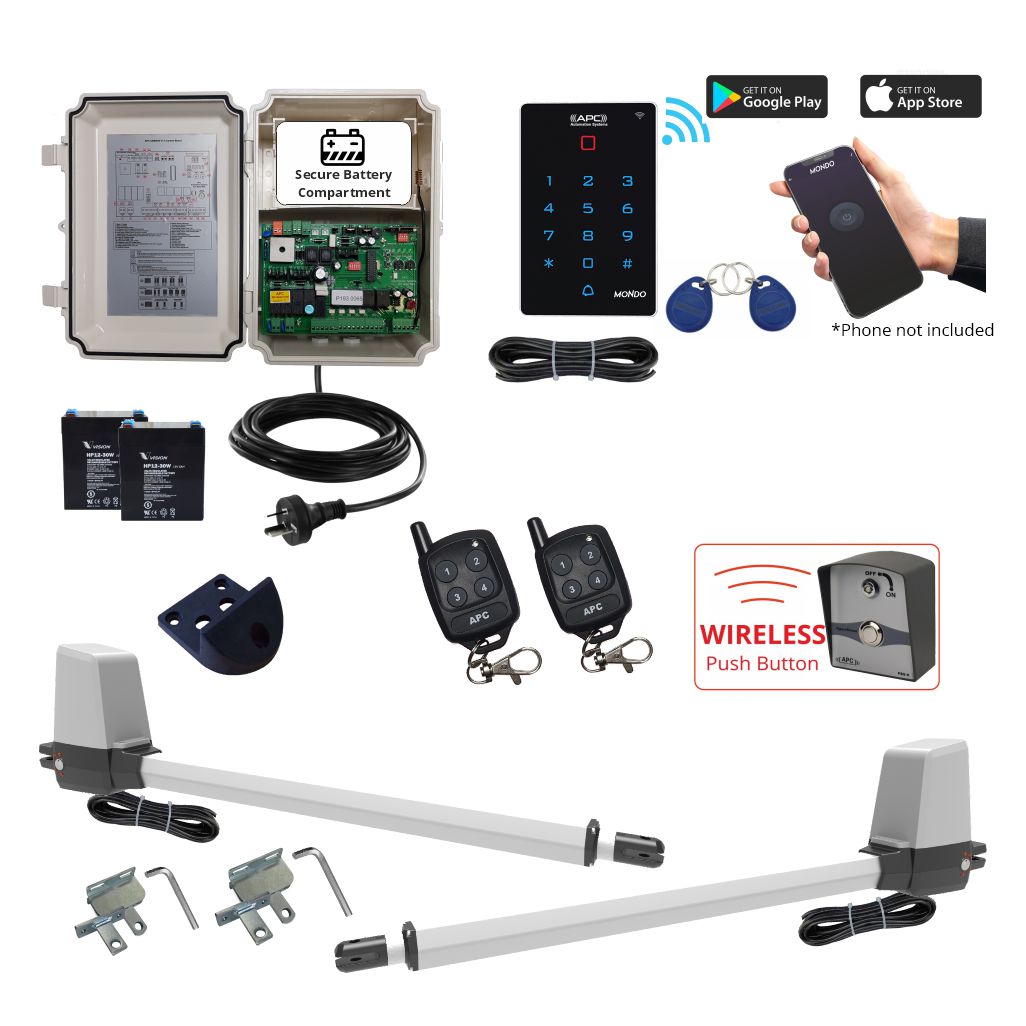

Gate Opener Kit Includes

• APC-T550 Actuator Kit Gate Automation Electric Motor (QTY: 2)
• APC Weatherproof Control Box with Built in Battery Compartment and 1.2m Power Cord (Ready to Plug In) (QTY: 1)
• 5aH Battery Backup(QTY: 2)
• 65mm High Centre Driveway Rubber Gate Stop with Steel Base(QTY: 1)
• APC Four Button Keyring Remote (QTY: 2)
• APC Wireless Single Push Button Switch with Key Isolation(QTY: 1)
• APC Mondo Wired Keypad with Wi-Fi and APP Control and Swipe Tag Reader (Two Swipe tags and 10m Cable included)(QTY: 1)

Product Information

Heavy Duty Quick Operation Aluminum Telescopic Linear Actuator

Engineered to be Fast, Powerful, and Quiet. The Heavy Duty 24V actuator is comprised of an aluminum piston housing and a stainless steel piston with an elegant light grey powder coat for a neutral non-obtrusive feel.

• Universal left and Right Side installation.
• Simple 2 wire low voltage system making this motor a breeze to install for all skill levels.
• The system can handle light and heavy gates up to 250kg maximum weight or up to 3m maximum length.

Engineered to last

• Perfect gear cuts allow for almost silent operation with no movement in the gear system.
• Sealed bearings at each end of the gear set for 100% smoothness and consistency every single cycle.
• Ribbed casing for extreme rigidity and the ultimate holding strength with no flex whatsoever.

Emergency Clutch Override

The simplest of override systems simply slot in the key and turn towards the unlock icon to operate the gates manually. Once finished just turn back to the locked icon.

Specifications

Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:

• Fully weatherproof with a seal
• Pre Connected Weatherproof Glands for Wiring Connections
• Hinged door with a padlock slot for added security
• Pre-Wired and ready to plug into a regular 10A power point

System Features

• Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate
• Automatic Feature Learning will learn all features of the remote with a simple pairing process
• Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
• Adjustable Automatic Close time up to 3 minutes

Safety Features

• Adjustable Over current adjustments
• Safety Sensor connection input
• Automatic Courtesy Light Output

Special Features

• Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
• Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.

Accessories Compatibility

• Constant 24V DC Accessories Output
  Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
• Open/Stop/Close Inputs for Gate Operation
• Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
• Smart Opening Closing LED indicators: Green LED on during opening and Red LED on during the closing
• Automatic Electric Magnetic Lock Output

Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls

• Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
• Keypads (Wired and Wireless Options Available)
• Exit/entry sensors
• Intercom system with dry contact output
• Automatic switching timer
• WiFi Control System (App Based Control)
• GSM Control Systems (Mobile Call/SMS based Control)

Battery Back-Up

The backup battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.

Specifications

APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader

• APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader(QTY: 1)
• Em Swipe Tag(QTY: 2)
• 10m 4 Core Non Shielded Cable(QTY: 1)

Product Information
APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader

The APC Mondo Wi-Fi Keypad can be used as a simple keypad access control device or alternatively as an advanced unit. Its special features allow the system to be operated by Pin Code, Swipe Tag and even remotely by APP whether on-site or off-site (anywhere in the world).

Key Feature Set:

• Full operational control by Tuya APP
• Resin Filled for best weatherproofing
• 12-24V DC Compatible
• Low Power Consumption
• Backlit Touch Keys
• Up to 2000 Users
• Pin Code, Swipe Tag or DUAL AUTHENTICATION Swipe Tag then Pin Code
• Adjustable Relay Time from 0-99s or Latching ON/OFF
• Doorbell Contacts to connect to your doorbell system
• Both NO and NC Circuits
• Suits most automatic gates
• Suits most electric strikers

Specifications
