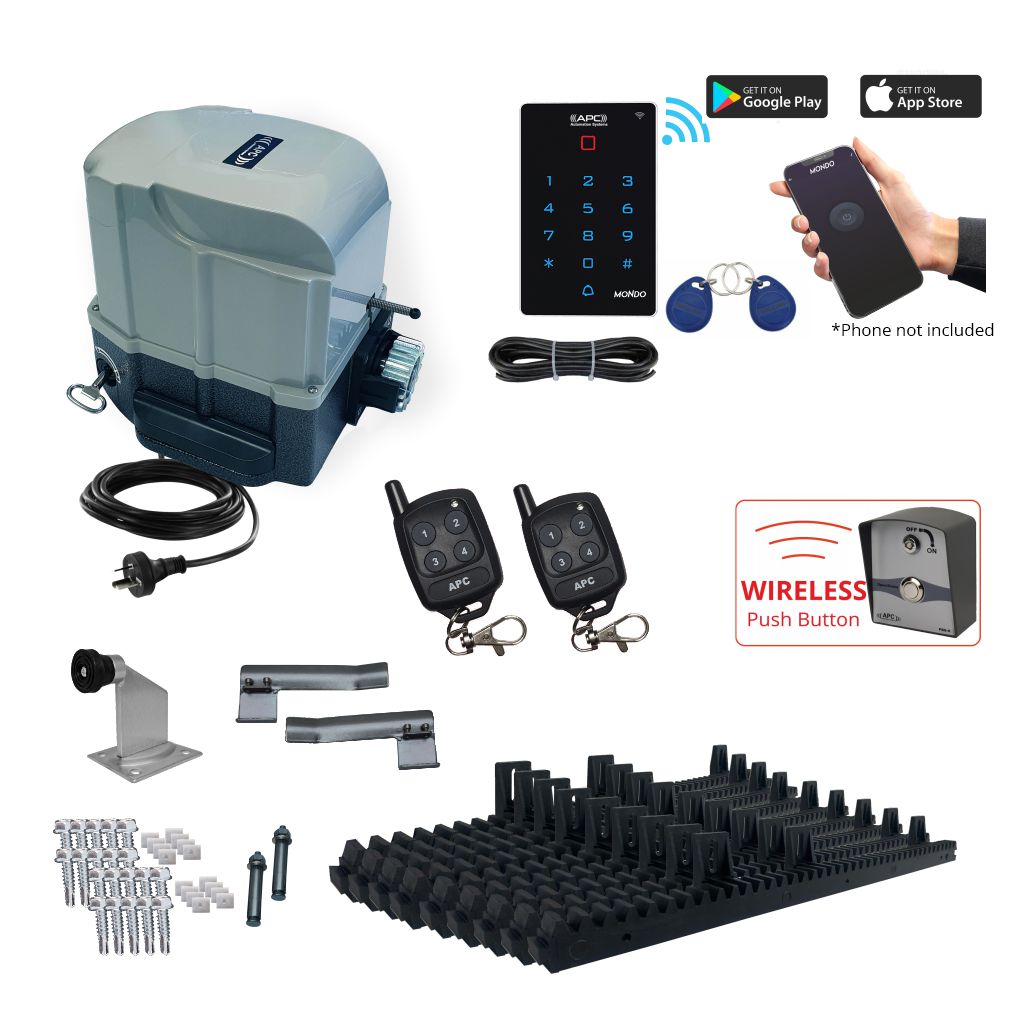

Gate Opener Kit Includes
- APC SG802 AC 800KG Sliding Gate Motor with Power Cord (Built in Control Board)(QTY: 1)
- APC Four Button Keyring Remote(QTY: 2)
- V4 520mm Nylon Rack(QTY: 10)
- 115mm High Bolt Down Galvanized Gate Stop(QTY: 1)
- APC Wireless Single Push Button Switch with Key Isolation(QTY: 1)
- APC Mondo Wired Keypad with Wi-Fi and APP Control and Swipe Tag Reader (Two Swipe tags and 10m Cable included)(QTY: 1)
Product Information
Strong Durable
With its Soft Start/Soft Stop feature the APC Typhoon brings the gate up to operating speed and down to a stop gently significantly increasing the motors operating life whilst decreasing the jolting movement incurred when the feature is not available.This feature can also simply be turned off if not required.
The 450W Internal motor allows for an 800kg capacity making it the ideal candidate for the majority of gate installations.
Ready to go the on board receiver will accept the entire range of current APC High Security wireless control systems and accessories such as wireless keypads, push buttons and an extensive range of remotes. Perfect for a simpler of no wiring needed installation.
All In One Motor Design
Ultra compact, sleek design and with some clever re-arrangement the APC Typhoon is one of the smallest physical footprint systems on the market with zero compromise in the motor or gearbox size. The bottom cast alloy section is powder coated in a ultra durable hammer tone grey finish whilst the top cover sports a lighter gloss grey making it perfectly neutral and suited for any garden or driveway
With separate open and close inputs as well as an shared open/close input the APC Typhoon will support just about any wired accessory and can be connected for a specific direction or to operate both. Perfect for Keypads, Push buttons, Induction Loops or Smart Devices such as Wi-Fi switches or GSM controllers.
Pre wired with the AC power cable and fitted with an on board low voltage transformer means the accessories connections are low voltage (18V DC) and safe to connect.
Manual Override System
Rest easy knowing that even if the power is out the gate can still be operated by using the secure key override, once overridden the gate can be easily opened and closed by hand, once re-engaged the gate is locked in and 100% secure.
Metal Pinion Cast Casing
Only the best parts are used to ensure an incredibly strong build quality from the robust cast alloy casing all the way to the one piece solid steel pinion gear no corners have been cut.
Suitability
- Sliding gate not exceeding 800kg maximum (Telescopic Gates Supported up to 200KG PER gate)
- Sliding gate not exceeding 6m width maximum (Telescopic Gates Supported up to 2m PER gate)
- A power point is required at the gate (or can be hardwired by an electrician)
- Level ground installations or minor gradients
Specifications
| Rated Power | 450W |
| Power supply | 220V-240V |
| Maximum Weight of Gate | 800kg (Telescopic Gates 200KG PER Gate) |
| Maximum Width of Gate | 6m (Telescopic Gates 2m PER Gate) |
| The working temperature of the motor | -5° ~ +65° C |
| Open (Close) speed | 12m/min |
| Maximum Pull | 22Nm |
| Voltage output | 18V DC, Only devices with a parameter of 12-24V DC operating range can be connected to the system |
| Light output | 240V Light, 30 Watts or Less |
| Accessories input | Open Only
Close Only
Open/Halt/Close |
FAQ
| Can I operate this sliding gate motor manually? | YES | The motor is fitted with a manual override and supplied with a key to manually disengage the motor |
| Can I use this system to operate a large gate? | YES | This system can handle a sliding gate up to 6m wide and 800kg in weight. |
| Are the motor control panel all in one? | YES | Both the motor and the control panel are housed under one casing making the motor easy to install and very neat compact |
| Can I use push buttons to operate this system? | YES | Both wireless wired push-button switches can be used to open/close the gate motor |
| Can I use keypads to operate this system? | YES | Both wireless wired keypads can be used to open/close the gate motor |
| Can I connect a safety sensor to this system? | YES | Photoelectric and reflective safety sensors can be connected to this system to stop the gate from closing if there is a vehicle or person in the way of the gate |
| Can I connect an intercom system to this gate system? | YES | A range of different intercoms can be connected to this system allowing the intercom to unlock the gate motor from a monitor inside the house or via an app on your smartphone |
| Can I operate this gate system from a remote location? | YES | A GSM Receiver or Wi-Fi Receiver can be connected to the system allowing programmed users to open/close the gate system from a remote location. |
| Does this gate system automatically close? | YES | When the automatic close timer is enabled, and photoelectric safety sensors are installed the gate will automatically close |
| Can I connect a light to the system? | YES | The system has a 240V light output meaning a 240V light 30 Watts or less can be connected and will operate when the gate is opening/closing. |
APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader
- APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader(QTY: 1)
- Em Swipe Tag(QTY: 2)
- 10m 4 Core Non Shielded Cable(QTY: 1)
Product Information
APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader
The APC Mondo Wi-Fi Keypad can be used as a simple keypad access control device or alternatively as an advanced unit. Its special features allow the system to be operated by Pin Code, Swipe Tag and even remotely by APP whether on-site or off-site (anywhere in the world).
Key Feature Set:
- Full operational control by Tuya APP
- Resin Filled for best weatherproofing
- 12-24V DC Compatible
- Low Power Consumption
- Backlit Touch Keys
- Up to 2000 Users
- Pin Code, Swipe Tag or DUAL AUTHENTICATION Swipe Tag then Pin Code
- Adjustable Relay Time from 0-99s or Latching ON/OFF
- Doorbell Contacts to connect to your doorbell system
- Both NO and NC Circuits
- Suits most automatic gates
- Suits most electric strikers
Specifications
| Working Voltage | 12-24V DC |
| Card Reading Distance | 1~3CM |
| Working Temperature | -40°~60°C |
| Load Output | Up to 3A |
| Standby Current | 70mA 12V, 30mA 24V |
| Capacity | 2000 Users |
| Working Humidity | 10-90% |
| Relay Time | 0~99s |
