Automatic Electric Gate Opener AC to 24V DC Sliding Gate Opener Kit with Encoder System - APC Proteous 450 Sprint, ULTRA FAST Italian Made 24V DC Extra Heavy Duty APC Sliding Gate Automation System

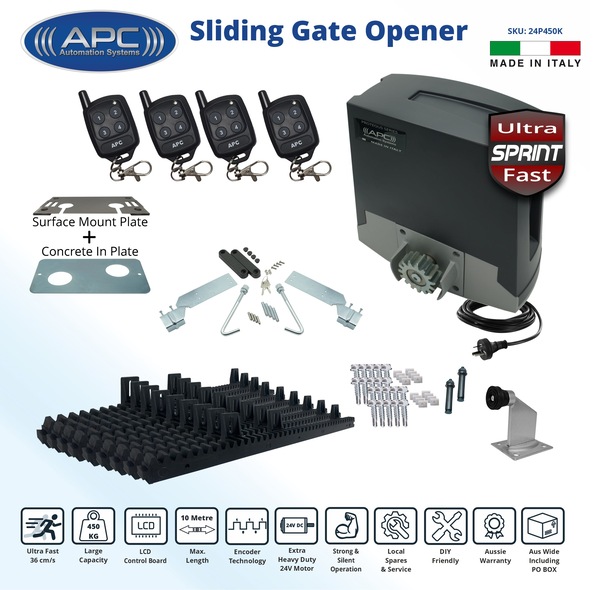

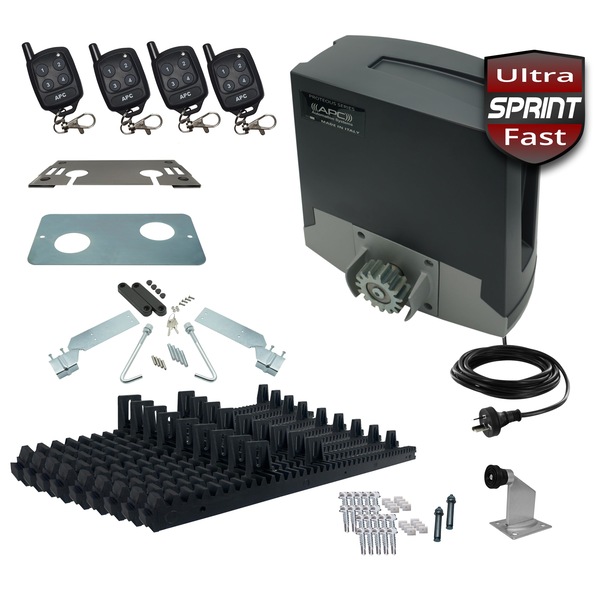

Gate Opener Kit Includes

• APC Proteous 450 Sprint ULTRA FAST Sliding Gate System(QTY: 1)
• APC Four Button Keyring Remote(QTY: 4)
• V4 520mm Nylon Rack(QTY: 10)
• 115mm High Bolt Down Galvanized Gate Stop(QTY: 1)

Product Information

At a glance

The Proteous 450 provides the ultimate in operational speed whilst supported by a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.

System Features

• Ultra Fast 36 CM per Second Speed
• 70% Duty Cycle (Can operate for up to 42 Minutes of every 60 minutes)
• Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
• 450KG Capacity
• Ultra long 10 metre gate capacity
• Only 150mm Narrow Depth

• Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
• Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
• Fast and Slow Speeds are adjustable
• Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
• Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
• Party Mode System to keep gates opened when configured for use with the automatic close feature
• Underside cable entry with grommets
• Simple to setup left and right side magnet system
• All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
• Strong STEEL Pinion Gear
• Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)

• Energy Saving Mode (5mA Standby Current)
• Optional battery backup system
• Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
• Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
• Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
• Induction Loop Compatible for auto opening or as a safety device
• Supports programmable timers

• Adjustable Over current adjustments
• Built in Encoder with adjustable sensitivity
• Safety Sensor connection input configurable for open and/or closing
• Supports Safety Edges
• Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times

Accessories Compatibility and Controlling Options

• Constant DC Accessories Output
• Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
• Remote controls
• Induction Loops
• Weekly Timers
• Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
• Keypads (Wired and Wireless Options Available)
• Exit/entry sensors
• Intercom system with dry contact output
• Automatic switching timer
• WiFi Control System (App Based Control)
• GSM Control Systems (Mobile Call/SMS based Control)
