Autogrow Mini Peristaltic Pump for IntelliDose - 120ML/Min - 24V DC

This single peristaltic pump is a perfect solution for growers. Deliver nutrients, additives and pH solution easily.

• Easy to install and maintain, peristaltic pumps are the easiest way to deliver nutrients, additives and pH solution to your reservoir.
• These pumps mount on the wall, above the reservoir.
• Automate dosing and watering with accuracy and precision.
• The Autogrow single peristaltic pump helps you manage and maintain all the essentials your crops need to thrive.

Features

• Eliminate hand measuring and minimize wasted nutrient
  • Automate the control of the Autogrow Peristaltic Pump 120mL to reliably manage the dosing of nutrients.
• Suitable for growers
  • Corrosion-resistant plastic – Enables the pump to be used with high concentration acids and alkalis* along with other chemicals that quickly erode general-purpose plastic.
• Long-lasting pharmaceutical-grade tubing
  • PharMed™ BPT tubing is compatible with almost all pH adjusters and hydroponic nutrients, lasting up to 30 times longer than silicone tubing.
• Long run time
  • Fan cooled motor allows for long run times delivering the quantity required for larger reservoirs.
• Small installation footprint
  • The ultra-compact pump is perfect for space-saving environments
• Replaceable cassette and tubing
  • User serviceable replacement components make it easy to perform preventative maintenance on your pump.
• Peristaltic Pump
  • Provide the best dosing accuracy using a self-priming suction method with long service life.

Specifications

• Flow Rate (Max.): 120 mL/min
• Discharge pressure (Max.): 90 KPa
• Operation temperature: 0 to 50 °C (no condensation, no freezing)
• Operation humidity: 2 20% to 85%
• Fluid temperature: 5 to 50 °C (41 to 122 °F)
• Input Voltage: 24 VDC
• Power consumption: 5 W (Peak in-rush current 600 mA)2
• Operation noise: ≈ 52 dB
• Motor endurance: > 1500 hours
• Tube:
  • Tube diameter (inner): 3 mm (1/8”)
  • Tube diameter (outer): 5 mm (13/64”)
  • Tube Material: PharMed BPT, USP Class VI
  • Tube endurance: > 750 hours
• Material (Cassette, Rotor): PSU (Polysulfone)
• Material (Base): ABS (Acrylonitrile Butadiene Styrene)
• Rollers: POM (Polyoxymethylene)
• Compliance: CE, FCC, RoHS
• Dimensions: 113 h x 68 w x 115 d mm (4.45 x 2.7 x 4.53 “)

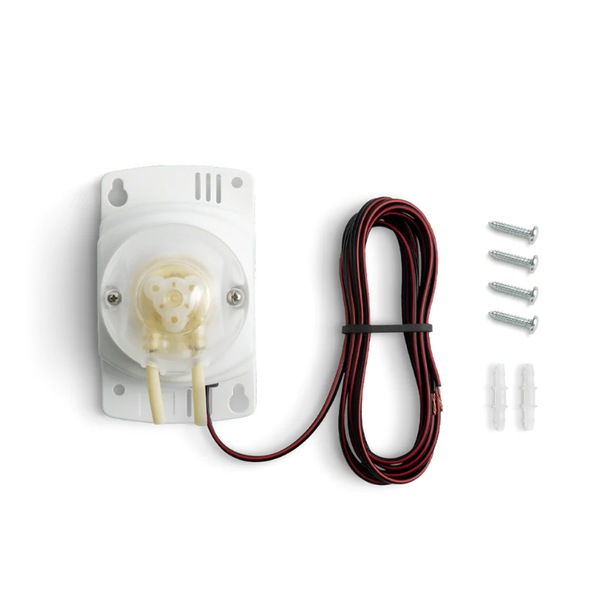

What's In The Box

• 1 x Peristaltic Pump 120 mL/min with 2.0 m (6.5’) of 24 VDC cable
• 4 x mounting screws
• 2 x 1/8” Barb straight through joiners
