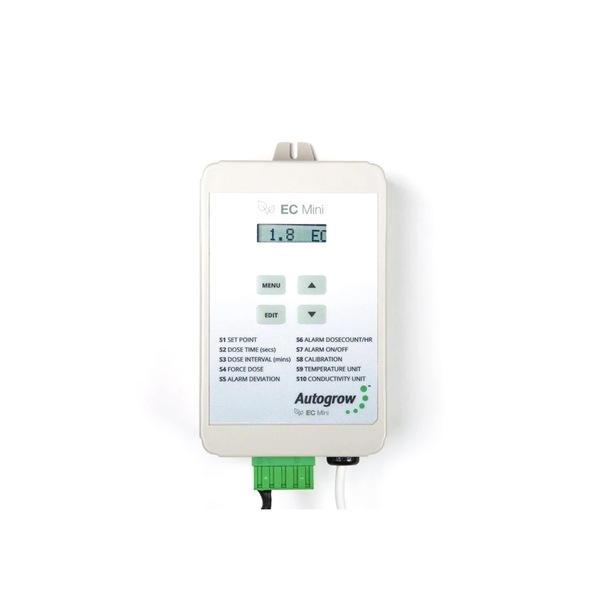

Autogrow EC Mini Controller Kit w/ 2 x Peristaltic Pump

The EC Mini is a mains-powered monitor with two peristaltic pumps. It is a fully functional dosing system, managing fluctuations in your EC.

This simple EC Mini will monitor and adjust your EC levels to maintain your desired set points. By adding two pumps, it becomes a fully functional dosing system, managing fluctuations in your EC. Adding peristaltic pumps will allow you to keep your EC adjuster in larger containers on the floor, avoiding issues associated with gravity-fed valves.

Features

Leak alarms

• ​Checking dose count is useful if a leak should develop or the pump fails and should prevent continuous dosing alarms. The alarms can be enabled to operate on the controller when the EC or DC/h deviates outside the user set-point.

Affordability

• ​The EC Mini is affordable enough to be used as a mains-powered monitor, continuously displaying the measured electrical conductivity. By adding solenoid valves or dosing pumps it becomes a low-cost dosing system.

Specifications

• Reading can be changed to EC or CF
• Timed dosing for easy set-up
• Range from 0 to 9.9mS (0 to 99CF)
• Resolution 0.01mS/cm (0.1CF)
• Two-year warranty
• Graphite electrodes for minimal contamination
• Easy to recalibrate by using 27.64CF standard solution
• Displays dose count
• If dose count per hour exceeds the user limit, an alarm sounds and the dosing stop
• Built-in alarm (can be turned off)

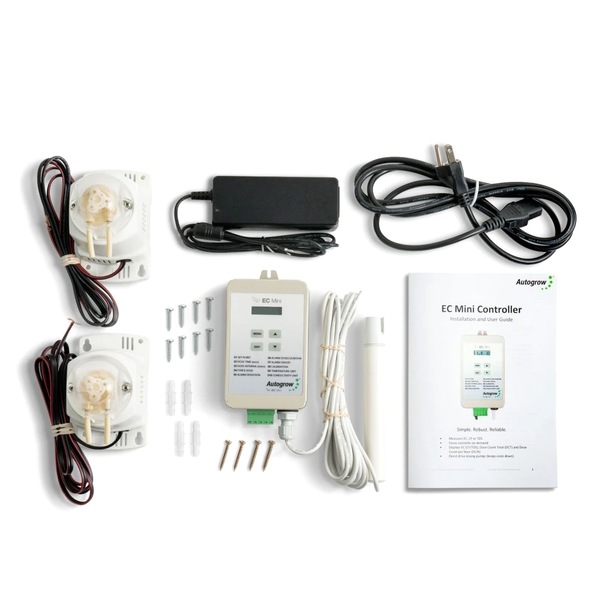

What's in the Box

• EC Mini Controller
• 24V DC 2.5A Power Supply with Universal Plug
• Standard EC Probe (hardwired)
• Mounting Hardware
• Instruction Manual
• 2 x 120/ml Mini Peristaltic Pumps
