Auto Fuses Standard, Mini, L P Mini, Micro2/3 5pc Packs

Automotive Fuses Standard (ATO), Mini (ATM), Low Profile Mini, Micro 2 & Micro 3

Genuine Littlefuse brand fuses - Only trust the genuine product to protect the electronics of your vehicle

5pc Packs - Handy to keep spares for an unexpected blown fuse

Protects your electronics from short circuit or overcurrent which is vital to safeguard passengers and drivers

Silver plated for added conductivity

Amp Rating: 3 amp - 30 amp *except for Micro3 which is 3 amp - 15 amp

Colour Coding
3 amp - Violet
5 amp - Tan
7.5 amp - Brown
10 amp - Red
15 amp - Blue
20 amp - Yellow
25 amp - Natural
30 amp - Green

Automotive Fuses Standard (ATO), Mini (ATM), Low Profile Mini, Micro 2 & Micro 3

Genuine Littlefuse brand fuses - Only trust the genuine product to protect the electronics of your vehicle

5pc Packs - Handy to keep spares for an unexpected blown fuse

Protects your electronics from short circuit or overcurrent which is vital to safeguard passengers and drivers

Silver plated for added conductivity

Amp Rating: 3 amp - 30 amp *except for Micro3 which is 3 amp - 15 amp

Colour Coding
3 amp - Violet
5 amp - Tan
7.5 amp - Brown
10 amp - Red
15 amp - Blue
20 amp - Yellow
25 amp - Natural
30 amp - Green

Automotive Fuses Standard (ATO), Mini (ATM), Low Profile Mini, Micro 2 & Micro 3

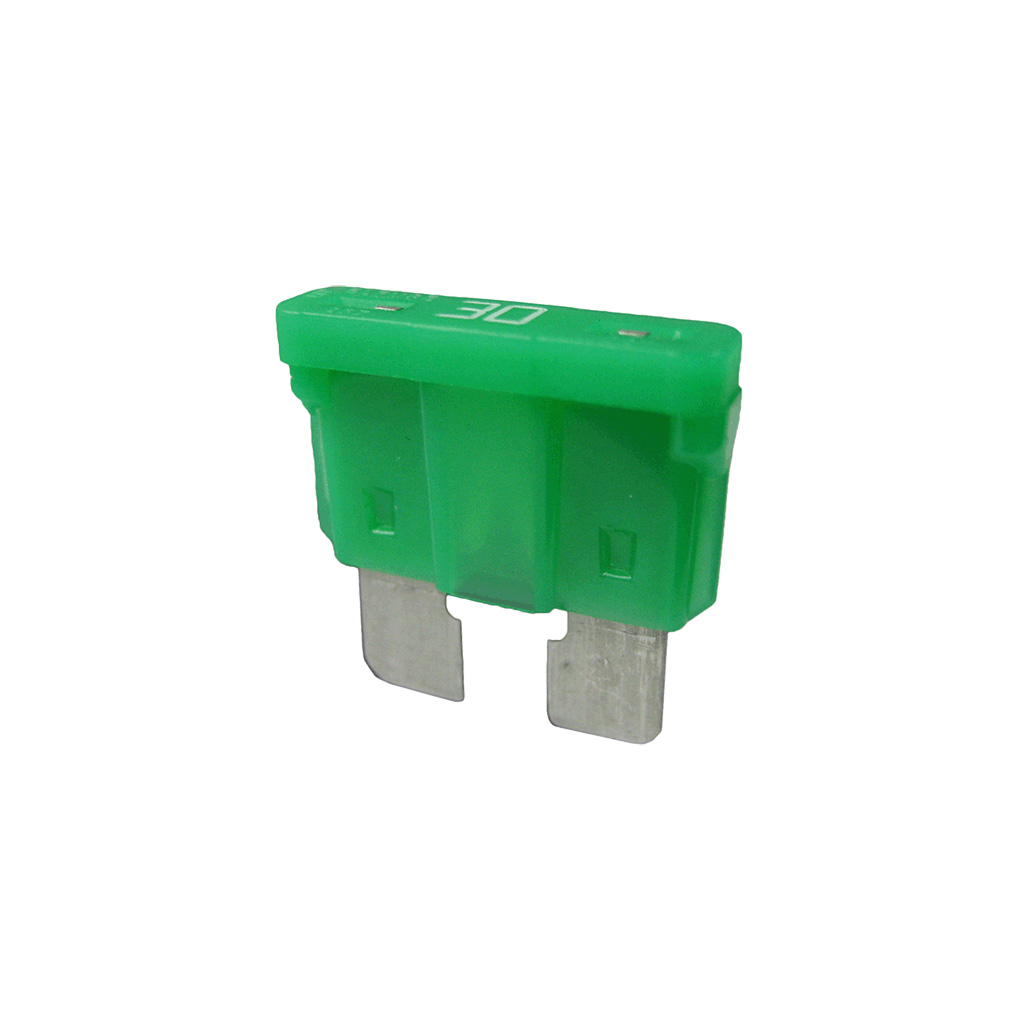

Standard ATO or ATC fuse was the first automotive blade fuse and was designed by Littlefuse
Overall Width: 19.2mm
Overall Height: 12.3mm
Leg Width (Outside to Outside): 14.5mm
Individual Leg Width: 4.1mm
Leg Height: 6.5mm

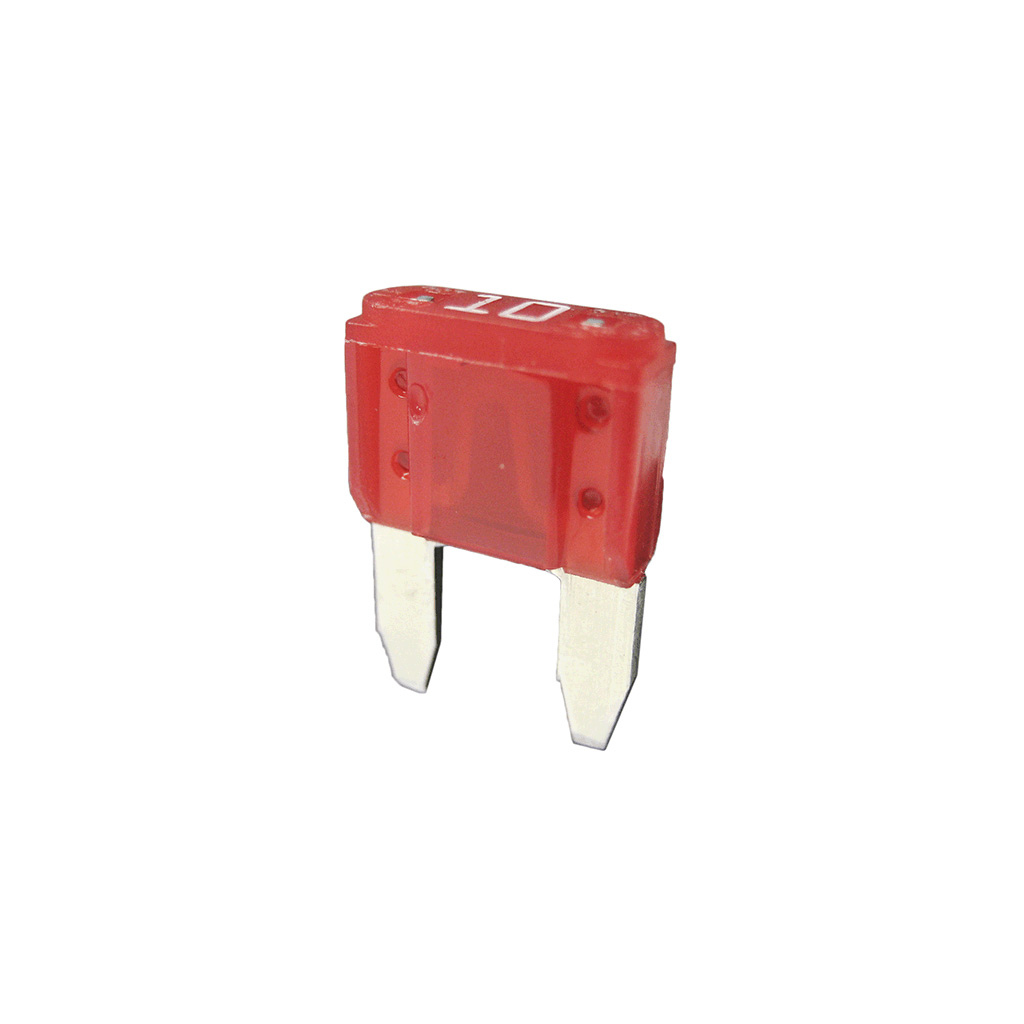

Mini Fuse (ATM)
Overall Width: 10.9mm
Overall Height: 16.3mm
Leg Width (Outside to Outside): 10.9mm
Individual Leg Width: 2.8mm
Leg Height: 7.5mm

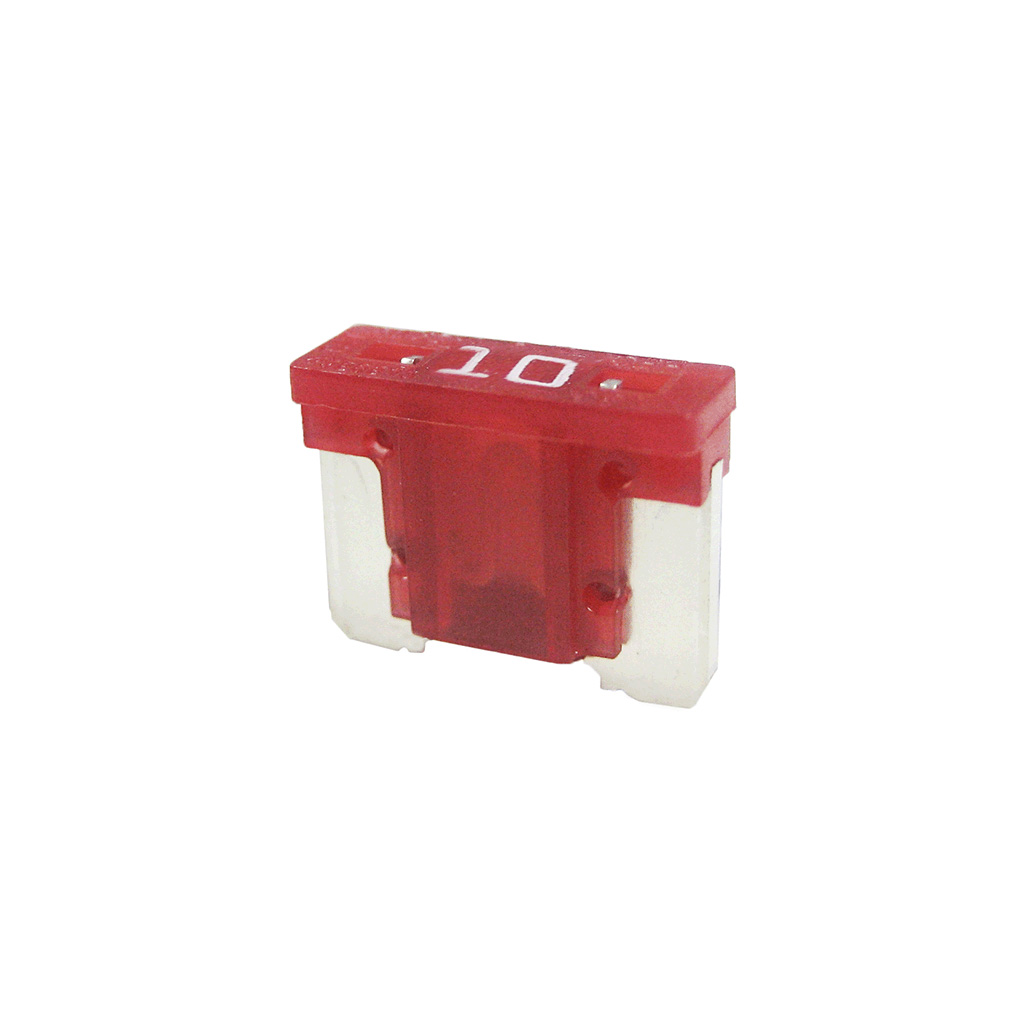

Low Profile Mini Fuse features a lower overall height, thereby reducing space requirements while still retaining similar performance to the standard Mini fuse
Overall Width: 10.9mm
Overall Height: 8.73mm
Leg Width (Outside to Outside): 10.9mm
Individual Leg Width: 2.22mm
Leg Height: 6.15mm

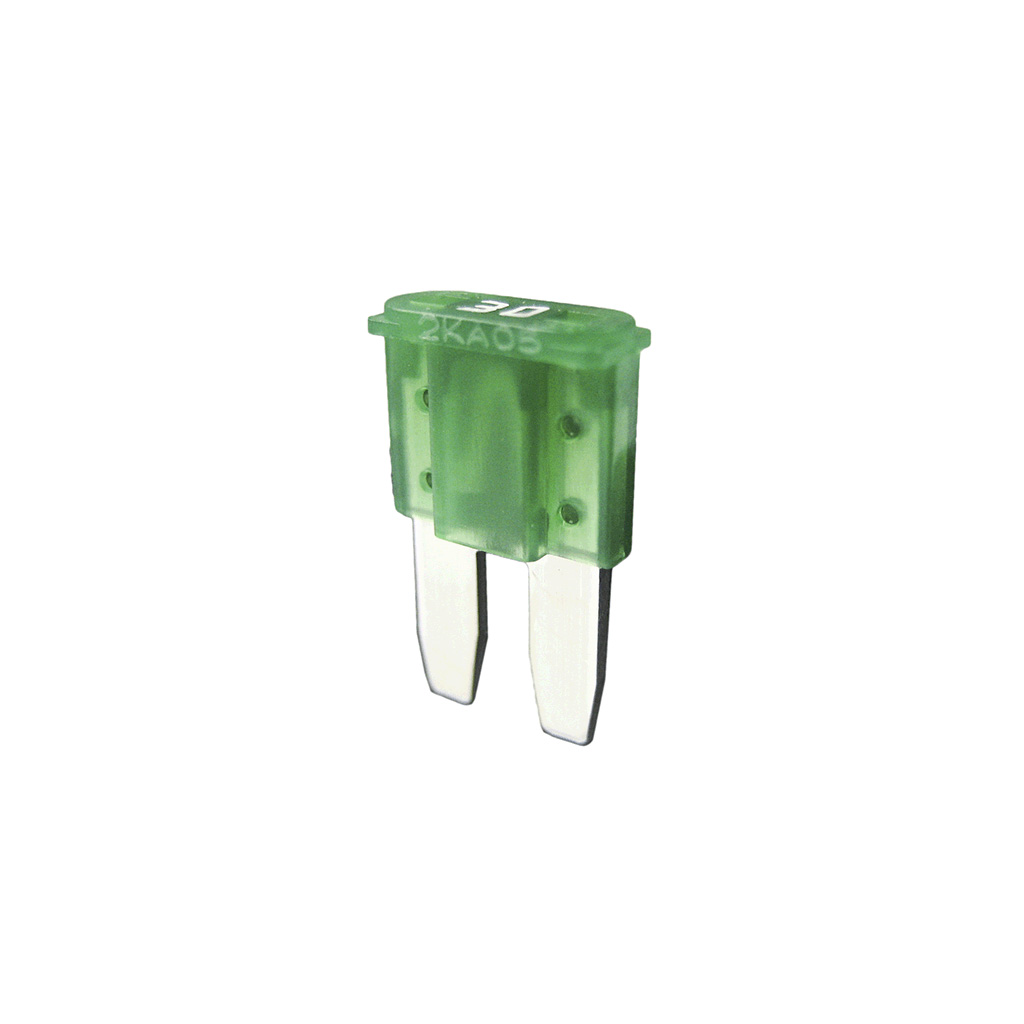

Micro2 Fuse
Overall Width: 9.1mm
Overall Height: 15.3mm
Leg Width (Outside to Outside): 7.8mm
Individual Leg Width: 2.8mm
Leg Height: 7.4mm

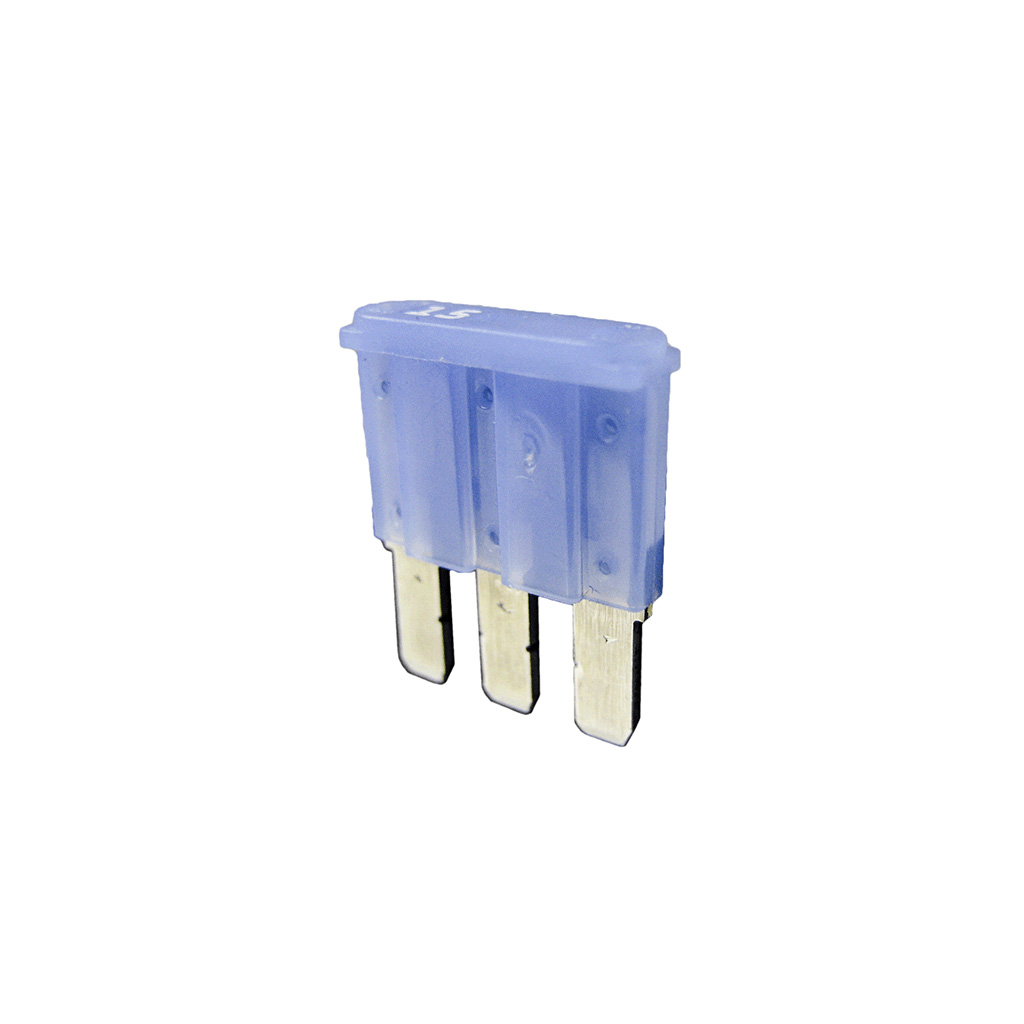

Micro3 Fuse has 3 terminals and 2 fuse elements with a common center terminal
Overall Width: 14.4mm
Overall Height: 18.0mm
Leg Width (Outside to Outside): 12.8mm
Individual Leg Width: 2.8mm
Leg Height: 7.4mm
