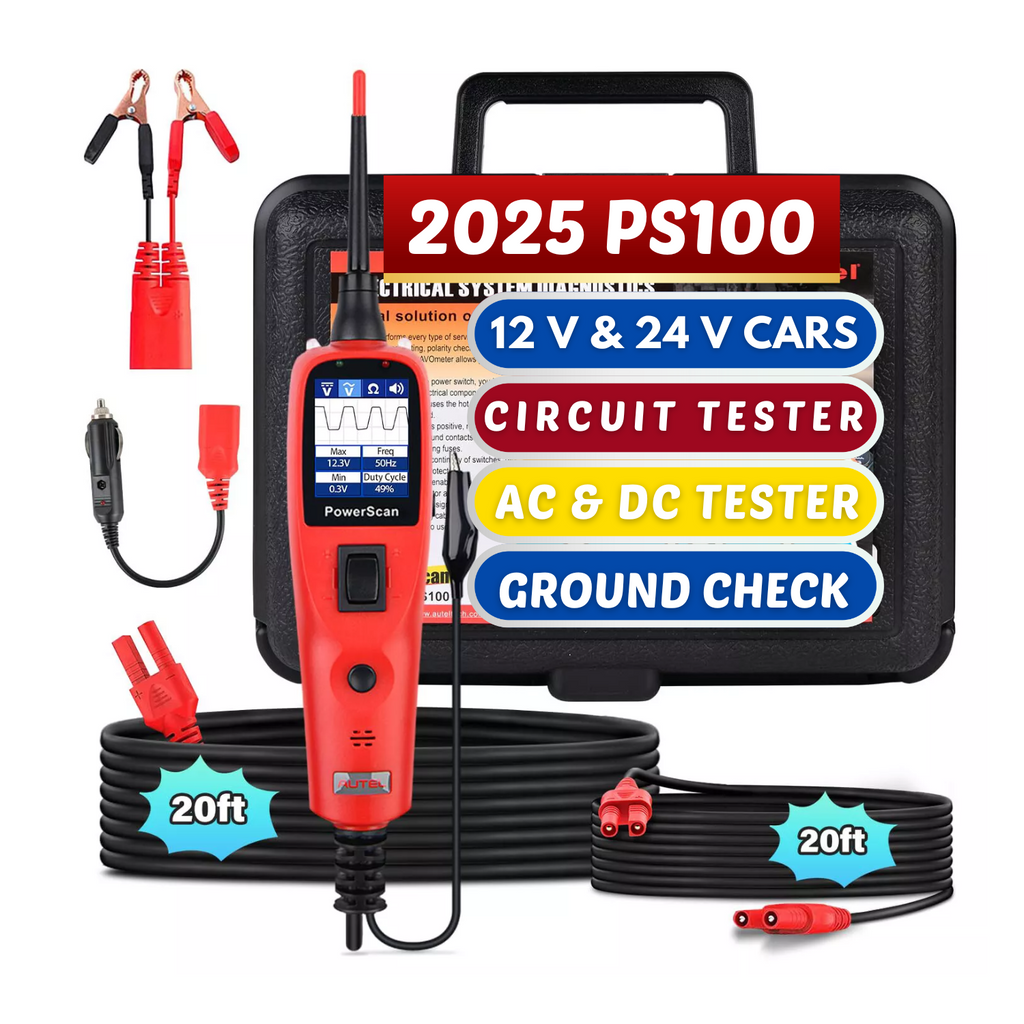

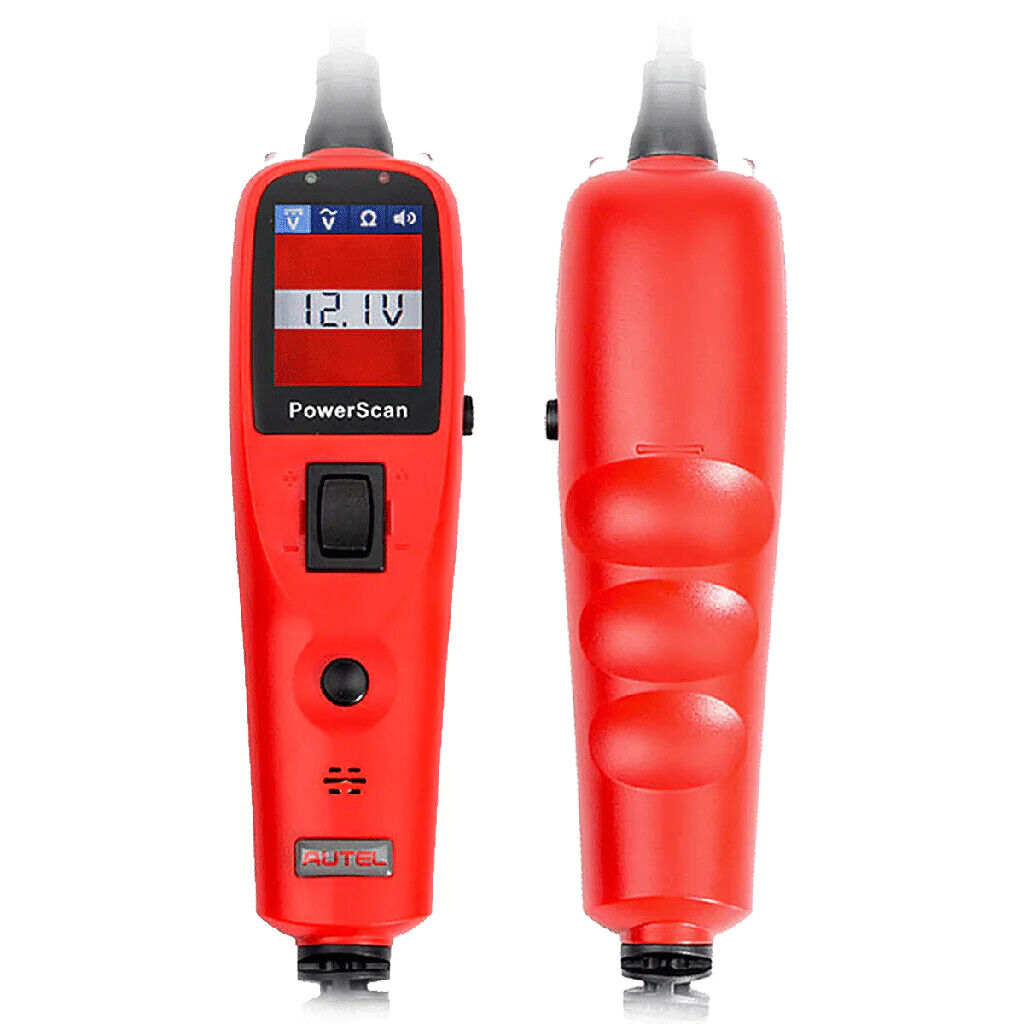

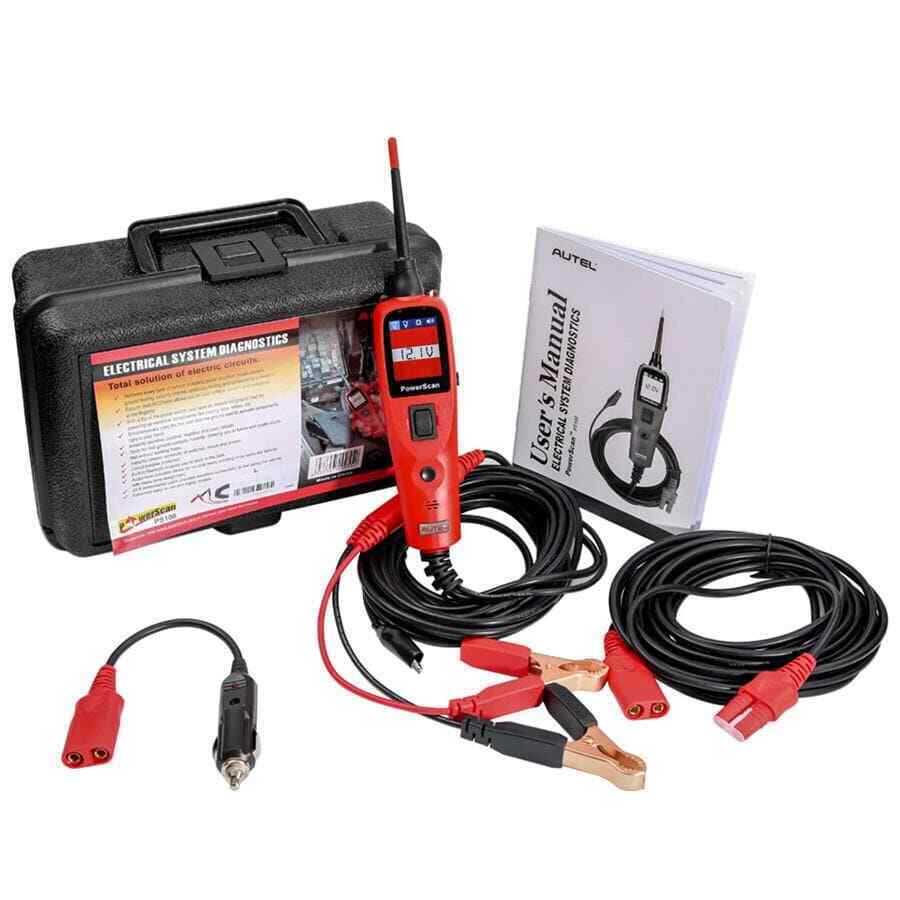

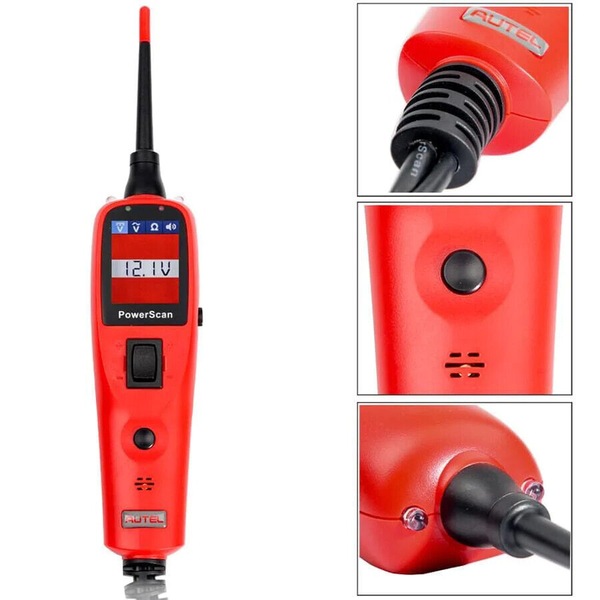

Autel PowerScan PS100 Automotive Power Probe Circuit Tester Diagnostic Tool

The Autel PowerScan PS100 is a powerful and versatile circuit tester designed for professionals and DIY mechanics. With advanced diagnostic capabilities, this tool simplifies electrical system troubleshooting, reducing testing time and improving efficiency. Whether you're diagnosing short circuits, testing continuity, or measuring voltage and resistance, the PS100 provides fast, accurate, and reliable results.

• Comprehensive Testing Capabilities – The PS100 combines multiple functions, including power injection, ground testing, continuity checks, and component activation, into a single tool.

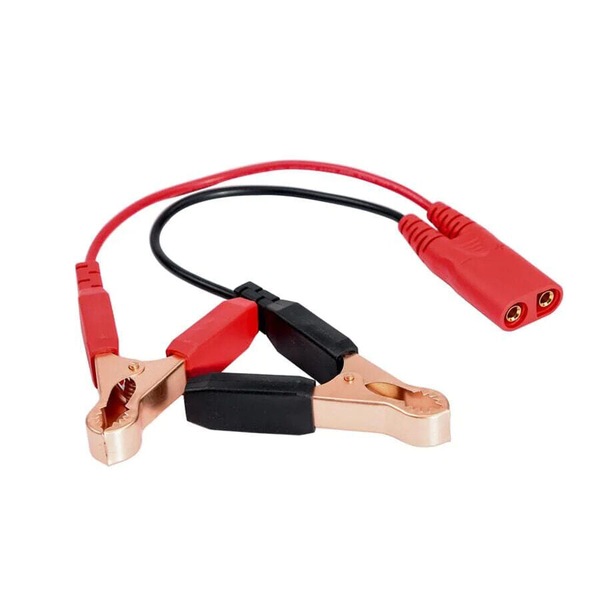

• User-Friendly Operation – A simple connection to the vehicle’s battery allows instant diagnosis of circuits without the need for multiple tools or complex setups.

• Time-Saving Design – Quickly determine if a circuit is positive, negative, or open without switching battery leads.

• Safe and Durable – Built with short-circuit protection and an internal circuit breaker, ensuring safety while preventing damage to electrical components.

• Extended Reach – The 20ft extendable cable provides full vehicle coverage, allowing you to test circuits from bumper to bumper without needing additional connections.

• Reliable and Efficient – Ideal for both automotive professionals and DIY users, the PS100 is designed to deliver accurate readings and enhance diagnostic efficiency.

• All-in-One Circuit Tester – Performs power injection, voltage measurement, ground testing, polarity checks, continuity testing, and component activation.

• Built-in AVOmeter – Provides instant voltage, current, and resistance readings for fast troubleshooting.

• Quick Power Testing – A flip of the power switch allows instant hot/ground lead activation for testing components such as cooling fans and relays.

• Component Activation – Uses both the hot lead and ground lead simultaneously to activate electrical components directly in your hand.

• Instant Circuit Identification – Quickly detects positive, negative, and open circuits with a single probe contact.

• Bad Ground Detection – Tests ground quality without the need for complex voltage drop tests.

• Continuity Testing – Instantly checks switches, relays, and diodes for faults.

• Short-Circuit Protection – Internal circuit breaker trips when overloaded, preventing damage.

• Built-in Flashlight – Allows work in low-light environments without additional lighting tools.

• Audio Tone Indicator – Provides menu scrolling assistance, allowing hands-free operation once the user becomes familiar with audio prompts.

• Long Cable for Accessibility – The 20ft (extendable) cable ensures you can test circuits anywhere in the vehicle without repositioning.

• Easy to Use and Highly Reliable – Designed for professional and home mechanics, making electrical diagnostics simpler and faster.

The PS100 features four different modes that help diagnose electrical circuits quickly and accurately:

1. DC Voltage Mode

   • Displays real-time DC voltage readings on the screen with 0.1V resolution.

   • Ensures accurate power delivery to components.

2. AC Voltage Mode

   • Shows maximum and minimum voltage, frequency, and duty cycle for AC circuits.

   • Useful for testing alternators, sensors, and complex electrical signals.

3. Resistance Mode

   • Measures circuit resistance by contacting the probe tip to the component.

   • Helps identify faulty wires, poor connections, and broken circuits.

4. Tone On/Off Mode

   • Provides audible feedback for circuit status, allowing hands-free operation.

   • Ideal for use in bright conditions where LED indicators may be hard to see.

   • The tone can be switched off for long-duration testing.

• Display: TFT Color Display (160 x 128 dpi)

• Operating Temperature: 0 to 60°C (32 to 140°F)

• Power Source: 12V or 24V from the vehicle battery

• Dimensions: 126mm x 46.5mm x 35mm (4.96" x 1.83" x 1.38")

• Weight: Lightweight for easy handling
