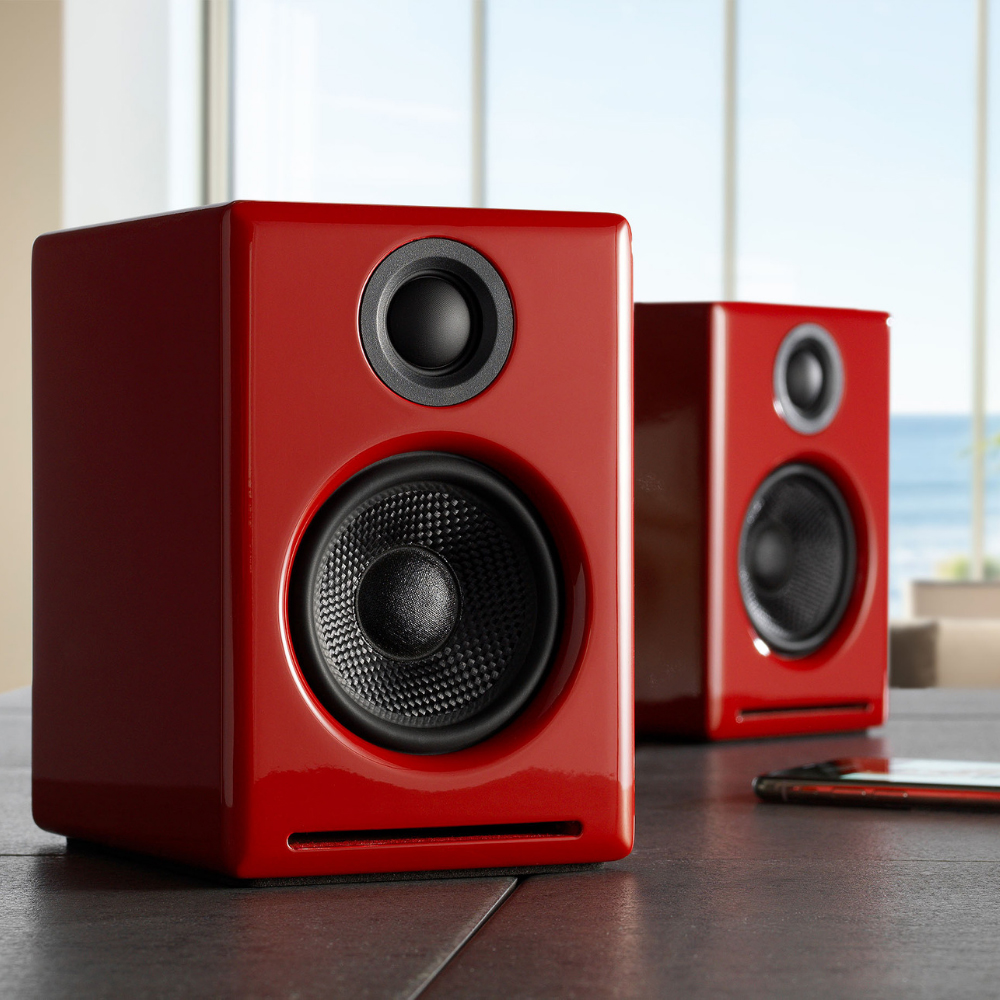

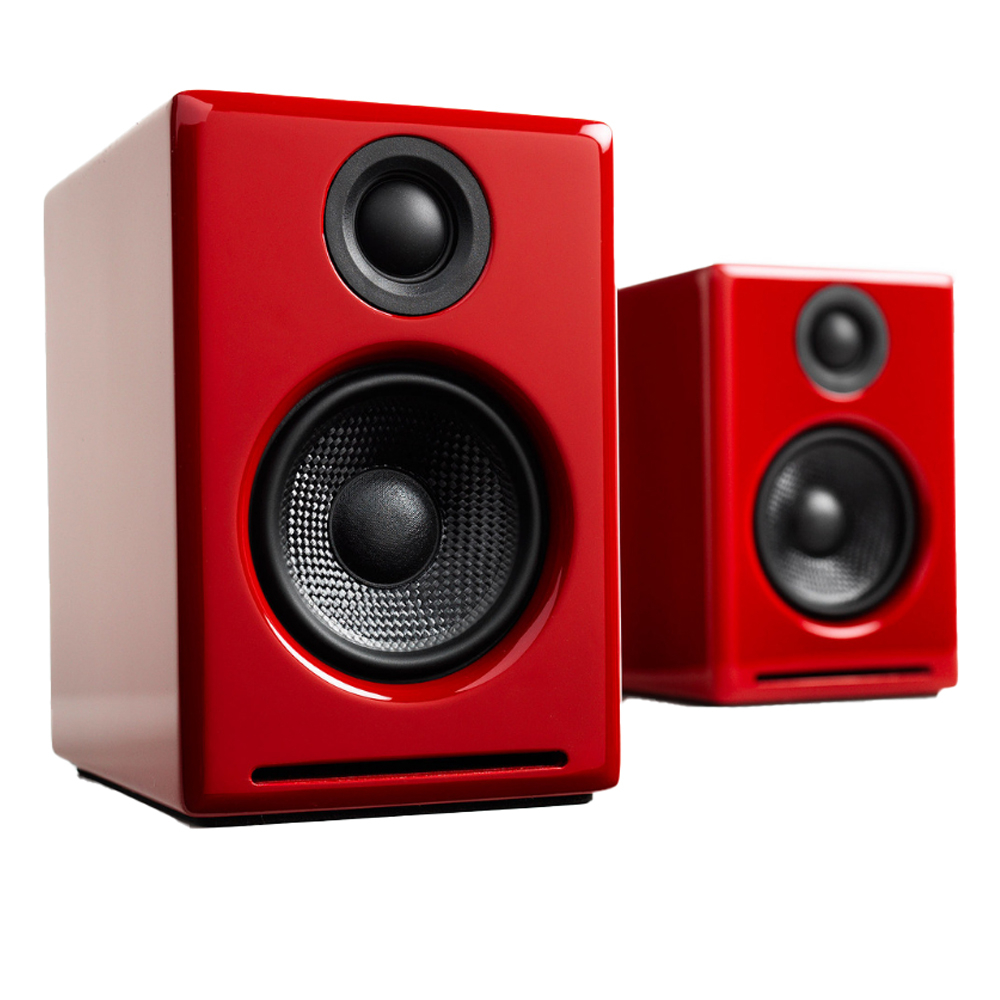

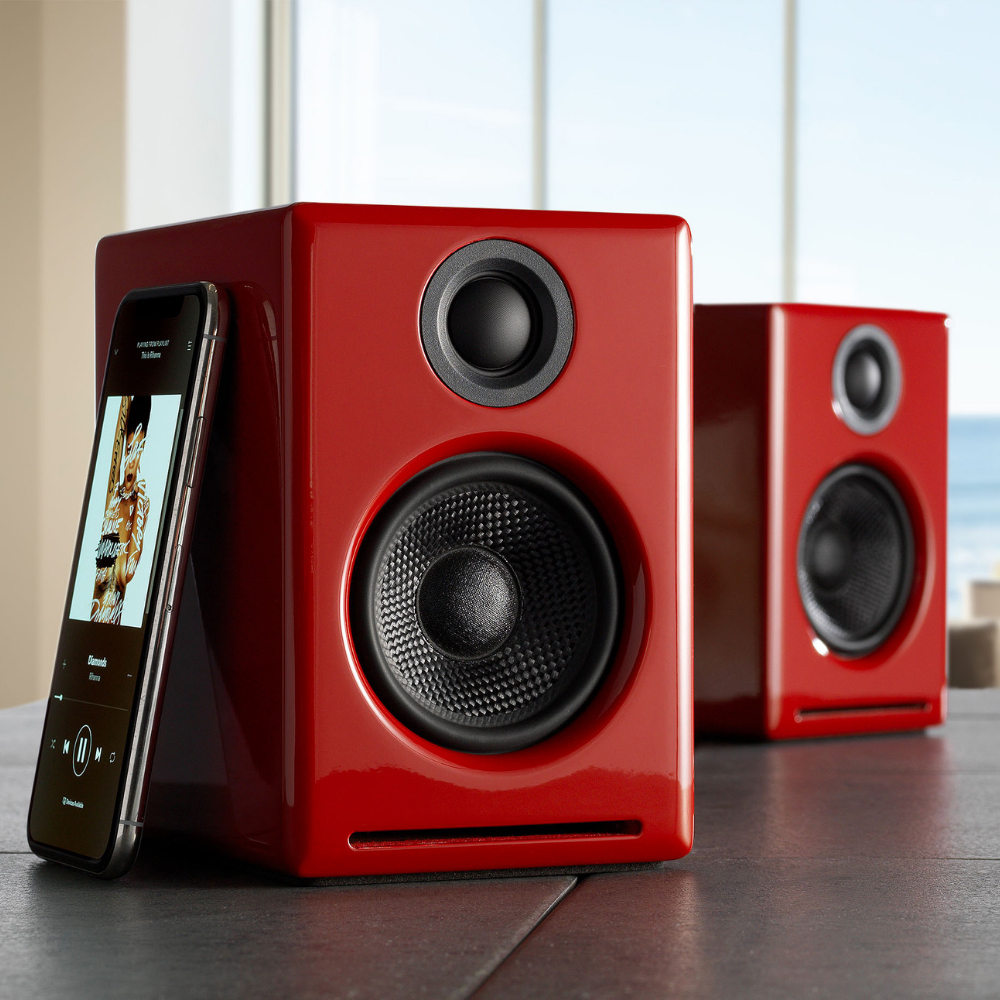

Audioengine A2+ Wireless Speakers (Red)

Specifications:

Amplifier type

• Dual class AB monolithic

Power output

• 60W peak power total (15W RMS / 30W peak per channel), AES

Drivers

• 2.75″ aramid fiber woofers, 3/4” silk dome tweeters

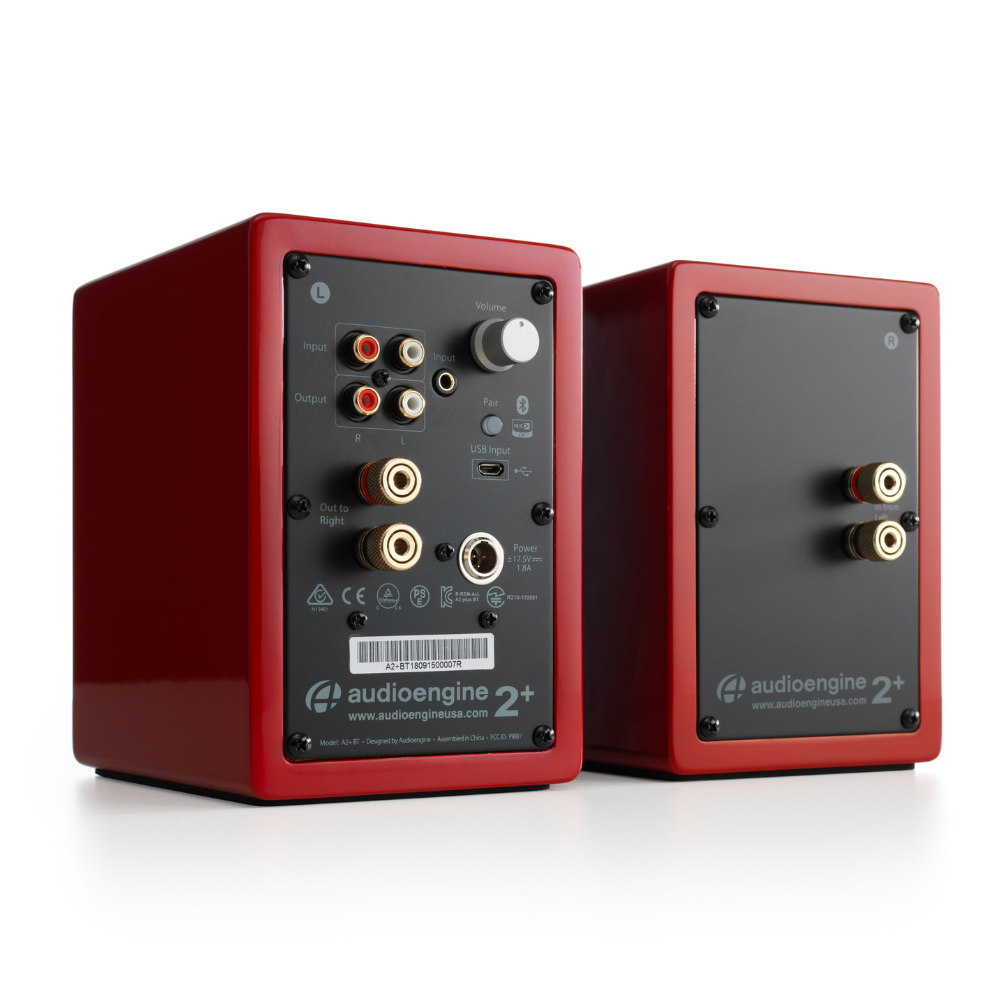

Inputs

• 3.5mm stereo mini-jack, RCA, USB, Bluetooth

Outputs

• RCA variable line-out

Mains voltages

• 100-240V 50/60Hz auto-switching

SNR

• >95dB (typical A-weighted)

THD+N

• <0.05% at all power settings

Crosstalk

• <50dB

Freq. response

• 65Hz-22kHz ±2.0dB

Input impedance

• 10K ohms unbalanced

Protection

• Output current limiting, thermal over-temperature, power on/off transient protection
• USB specifications

Connector type

• Micro USB

USB device class

• Type 1.1 and above

Internal D/A converter

• CSR8670

Input bit depth

• Up to 16 bits native

Input sample rate

• Up to 48KHz native

Internal BT receiver

• CSR8670

Input bit depth

• 16 bits

Bluetooth receiver type

• Bluetooth 5.0 audio

Supported codecs

• aptX, AAC, SBC

Wireless operation range

• Up to 100ft (30m) typical

Input data rate

• Determined by Bluetooth

Wireless latency

• ~30 milliseconds (ms)

Dimensions (each)

• 6”(H) x 4”(W) x 5.25”(D)

Weight (LEFT speaker)

• 1.6Kg/3.55lbs

Weight (RIGHT speaker)

• 1.4Kg/3.15lbs

Shipping weight

• 4.6kg/10lbs per pair

Shipping box dims

• 10.5” (H) x 15” (L) x 7” (W)

MATERIALS AND CONSTRUCTION

• 18mm thick MDF cabinets
• 3/4″ (20mm) silk dome tweeters with neodymium magnets
• 2.75″ aramid fiber woofers with advanced voice coils

FINISH OPTIONS

• Satin Black Paint
• Hi-Gloss White Paint
• Hi-Gloss Red Paint

ENVIRONMENTAL REQUIREMENTS

• Operating temperature: 32 degrees F to 95 degrees F
• Non-operating temperature: -4 degrees F to 113 degrees F
• Relative humidity: 5% to 95% non-condensing

CUSTOM COMPONENTS

• Audioengine designs and manufactures our own tweeters, woofers, and other critical components. In other words, these are not “box built” speakers with off-the-shelf parts but custom-designed to our specifications. What we do not fabricate directly in our factory we have made to our designs (parts such as transformers, magnets, and wiring harnesses, for example). The cabinets, drivers, bass port designs, amplifiers, and crossovers are all painstakingly tuned together for each Audioengine model. This, in turn, makes for a much more efficient system that requires much less power than passive speakers and a separate integrated amplifier or similar A/V components.

EFFICIENT INTEGRATED DESIGN

• The speaker cabinets, drivers, innovative bass port designs, amplifiers, and passive crossovers are all critically tuned together for each Audioengine model. This, in turn, makes for a much more efficient system that requires less power than passive speakers and a separate integrated amplifier or similar A/V components. We build all this goodness into the left speaker cabinet to make it super-easy to connect your smartphone, tablet, computer, TV, network player or any other audio product.

HIGH-QUALITY BLUETOOTH AUDIO

• The Bluetooth built into the A2+ Wireless speakers features aptX coding which is an advanced Bluetooth audio codec with very impressive sound. And even if your phone or tablet does not have aptX, the A2+ Wireless Bluetooth solution is backwards-compatible with SBC and AAC codecs, so you can wirelessly stream music from any Bluetooth-enabled device and still enjoy all your music. High-fidelity Bluetooth aptX that really works and sounds great.
• Extended wireless range. Most Bluetooth implementations have very limited range, typically within just one room. But with careful signal management circuitry and antenna tuning, we offer a superior solution that has up to 3 times the range of standard Bluetooth for multi-room use, with no degradation in audio quality.

AMPLIFIER DESIGN

• The amplifiers in powered Audioengine speakers are located in the left speaker and are a conservatively-rated class A/B analog monoblock design. This is a more traditional speaker/amplifier configuration which provides excellent quality audio and greater flexibility. All circuit boards for the power and preamp sections are vertically mounted for maximum mechanical shock protection.

DRIVER DESIGNS

• Audioengine uses audiophile-quality, ferrofluid-cooled silk dome tweeters with neodymium magnets. Silk tweeters hold up well under high power and the edge-driven design gives very smooth response. The woofers are aramid fiber woven glass composite with rubber surrounds. Aramid fiber is obviously very strong, which means the woofer retains its shape when being driven at high levels.

SHIELDING

• Both of A2+ Wireless speaker drivers are directly magnetically-shielded.
