Eurocable Ultra flexible Rubber & PVC sheath Audio & Microphone Cable Black 1m

Eurocable Ultra flexible Rubber & PVC sheath Audio & Microphone Cable Black 1m

Price	$19.90
	Collect 57 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

METRE CODE:
Please note that this product is sold in METRES.
Ensure that your order quantity matches your desired length (ie. 30 for 30m).
Length in brackets- eg. (100m) denotes available roll length.

Ultra flexible with rubber & PVC sheath, suits Cannon type mic connectors

2 x 23/0.12mm
O/D: 6.35mm
Insulation thickness: 0.71mm
Per metre

The Eurocable Extra Flex is the pro industry standard forapplications that requires the repeated rolling and unrolling of cable for staging performances, temporary gigs or PA setups. Amphenol connectors (like the AC3F) perfectly fit this cable.

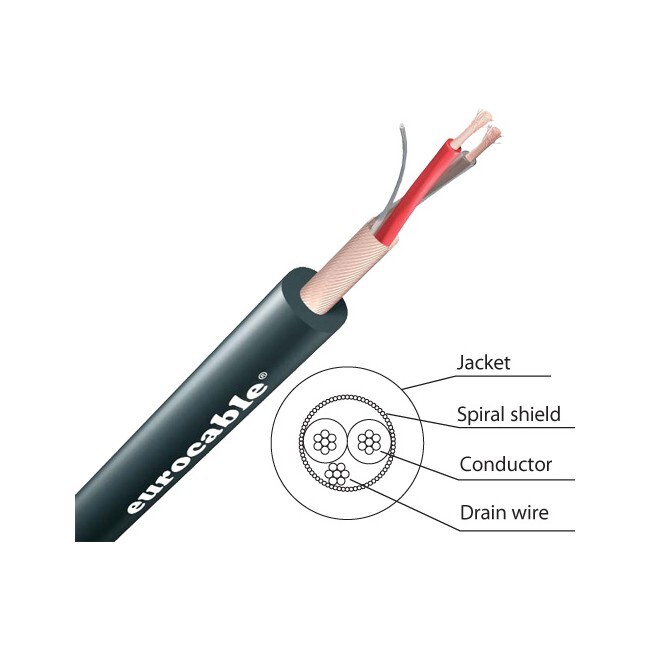

The6.0 mmmicrophonecablehas been designed forrugged applications.This extremely resistant cableisanti-tramplingwhile preservinghigh flexibilityin a wide range of conditions, even at temperatures below 0 °C. It consists oftwo insulated twisted conductors and drain wire, all shielded with a high density spiralcopper forhighly efficient shieldingfrom hum, noise, radio interference and electromagnetic fields.The insulation is made fromhigh quality polyethylenewhich does not shrink, nor misshape at high temperatures when soldering.

Producted in Italy with top quality materials, this6.0 mmmicrophonecableis particularly suitable for long runs in live applications.

Suitable for long runs in live applications
Extra flexible PVC jacket

Additional information

APPLICATION	Mobile
JACKET COLOR	Black, Blue, Green, Grey, Red, Yellow
STANDARD REEL	100 m on cardboard reels

Electrical data

D.C.R. AT 20°C	Conductor	< 78 ohm/km
Shield	< 39 ohm/km
CAPACITANCE	CDR/CDR 1 KHz	160 pF/m
CDR/SHD 1 KHz	80 pF/m
NOMINAL IMPEDANCE 1 KHZ	600 ohm/100 m
ATTENUATION 1 KHZ	0.50 db/100 m
INDUCTANCE	< 58 µH/100 m

General data

CABLE	O.D.	6.00 mm
Standard reels	100 m
Weight	4.60 Kg/100 m
Operating temperature	-5°C/+70°C
JACKET	Material	PVC
Nom. Thick.	1.00 mm
SHIELD	Material	Bare copper spiral shield plus 20 AWG tinned copper drain wire
Coverage	100%
CONDUCTOR	Qty	2
Strand	30 x 0.10 mm
Area/AWG	0.22 mm’�/24
Insul. O.D.	1.10 mm
Material	Bare copper polyethylene insulated

MPN: LK02N6E BLACK - 100M
