Battery Charger DC to DC 12V 20A MPPT System Kit Isolator Dual Atempower

Battery Charger DC to DC 12V 20A MPPT System Kit Isolator Dual Atempower

Price	$149.69
	Collect 298 Everyday Rewards points 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Features

Dual Input: This Charger is designed to effectively pull power from solar panel (up to 20A) or vehicle’s alternator to charge your auxiliary battery.
Multi-Stage Charging: This charger integrates standby, pre-charge, constant current charging, constant voltage charging, full charge and re-charge.
Multi Battery Selection: This DC to DC charger by ATEM POWER is compatible with Lead Acid, AGM, Gel, calcium, Li-ion batteries.
Built-In MPPT Regulator: The regulator is designed to harvest up more energy from the solar panel to reduce the load on your engine.

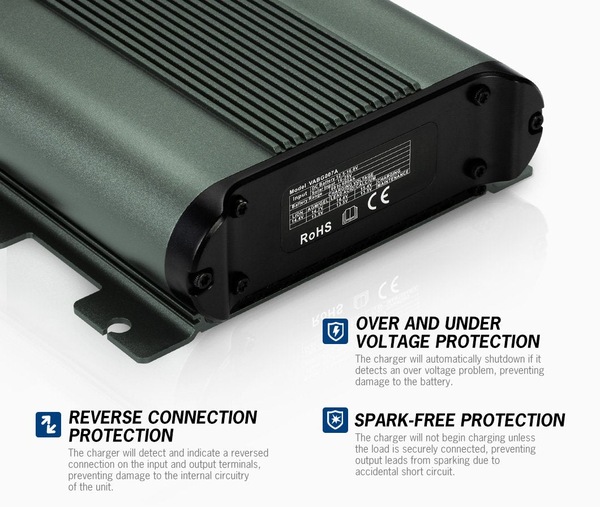

Multiple Protection: It integrates over-charge, short circuit, over-temperature, thermal load, solar input overload, input/output reverse polarity protection.
Internal Temperature Monitoring: This mechanism can effectively protect the circuit board to prolong the lifespan of the charger.
Sturdy Construction: Sturdy aluminum housing is built to resist harsh conditions and quality wires are built for durability.
Upgraded Charging Algorithm: This algorithm is designed to select the optimum charge mode and revive your discharged battery.
Smart Alternator Compatible: The ACC wire can be wired to the ignition to adjust voltage cut off, which is suitable for modern vehicle,trailers and caravans.
User Friendly Design: The LED indicator shows real-time stage of charging and memory function is integrated to make your charging more convenient.

Specifications

Type: Multi Stage
Warranty: 1 year
Input: DC Battery: 12.5~16.0Volts
Solar Input: 16.0-25.0 Volts
Output/Charging Voltage: 14.4~15.4 Volts(Stops charging when alternator output or vehicle battery below 12.5 volts)
Output Current: DC Output: 20A
Solar Output: 20A
Minimum Start Voltage: 2.5 Volts-For battery being charged
Soft Start: Yes
Soft Charge Current: DCDS20@20A
Bulk Charge Voltage: 14.7V(AGM/Gel)14.4V(Lead Acid)15.4V(Calcium)14.4V(Li-ion)
Absorption: Constant voltage with automatic amperage control
Equalisation: Automatic
Float Charge Voltage: 13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium)
Float Charge Current: 100mA
Battery Range: 60 to 600Ah
0-1 Metres: 12AWG
1-5 Metres: 8 AWG
5 Metres+: 6 AWG
Package contents: 1x ATEM POWER 20A DC-DC Charger, 1x Manual

Please note

Please allow some leeway in size dimensions due to hand measurements.

GTIN: 7446936329397
