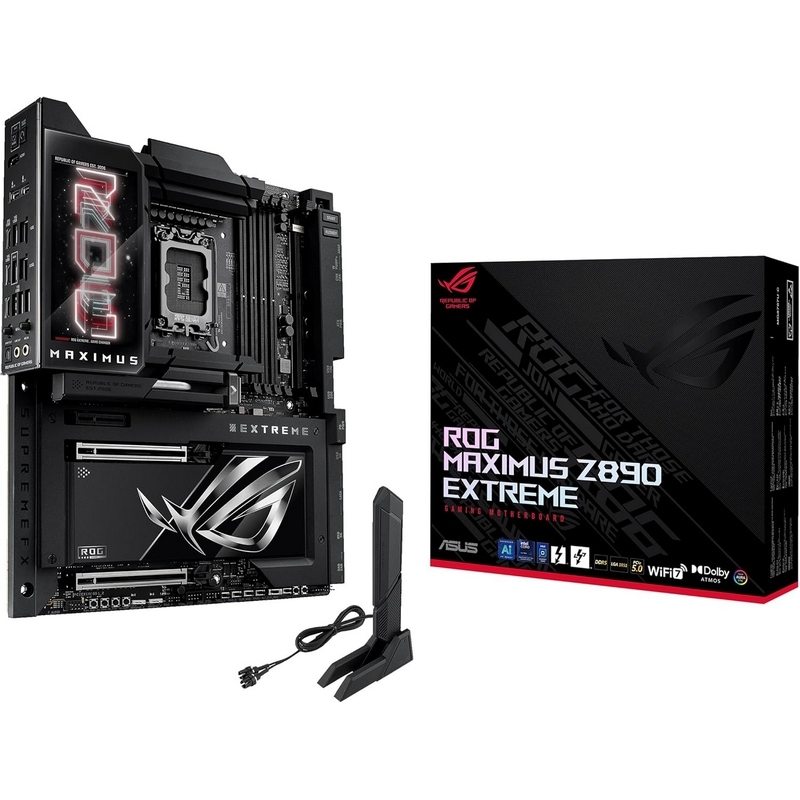

Asus ROG MAXIMUS Z890 EXTREME Motherboard, for Intel CPU, DDR5, LGA1851, E-ATX
3x

Asus ROG MAXIMUS Z890 EXTREME Motherboard, for Intel CPU, DDR5, LGA1851, E-ATX

Hurry! 2 items left!
Price
$1991.67
Collect 5973 Everyday Rewards points
Score 3x points on every order
Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply
Log in to MyDeal to link your card
Shipping
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change

24-48 hour dispatch
Quantity
Maximum item limit (2) has been reached.


ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and AI Cooling II, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS. * Availability of ASUS AI Advisor may vary by region.The ROG Overclocker’s Tooklit is a powerful set of hardware-level controls to enhance your overclocking experience. Some are quick and easy time savers, while others offer masterful functionality to help you smash benchmarks and break records.

Features:
  • Teamed Power Solution AI Networking II AI Cooling II One-click fan tuning Overclocking Effortless performance boost DDR5 Max. 192GB, NitroPath DRAM Technology, DIMM Flex, AEMP III Extensive Gen 5 x3 onboard M.2 slots, and x2 PCIe 5.0 x16 slots ROG Q-DIMM.2 Adds x2 M.2 slots in a DIY-friendly shell WiFi 7 EZ PC DIY Full Color 5” LCD Display
  • Thunderbolt™ 5
Specifications:
  • Model :ROG MAXIMUS Z890 EXTREME
  • News & Updates :2024/10/24: A new BIOS has been released addressing various bugs, including no d
    isplay from the graphics card when installing Windows 11 24H2. It is recommended
    to use the new EZ Flash tool to update directly using the ZIP file downloaded from the ASUS site.
    Please visit Asus website to check and download the latest updates.
  • CPU :Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    * Refer to Asus official site/support/download-center/ for CPU support list.
    ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset :Intel® Z890 Chipset
  • Memory :4 x DIMM slots, max. 192GB, DDR5
    Support up to 9200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP) memory module
    ASUS Enhanced Memory Profile III (AEMP III)
    Supports DIMM Flex
    DIMM Fit
    NitroPath DRAM Technology
    * Supported memory types, data rate (speed), and number of DRAM modules vary dep
    ending on the CPU and memory configuration, for more information please refer to
    CPU/Memory Support list under the Support tab of product information site or visit Asus official site/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  • Graphics :1 x HDMITM port**
    2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    **Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
    ***Supports up to 1 x 8K@60HZ(DSC mode)+2 x 4K@60HZ monitors, It is recommended to chain-connect the monitors using a verified Thunderbolt™ cable.
    ****For resolution support please check DisplayPort 2.1 specs.bandwidth limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s.
    *****In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total
    bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 s
    pecs. In DP alt mode, supports up to UHBR20.******VGA resolution support depends on processors' or graphic cards' resolution.
    *******While installing the operating system, please ensure that your monitor is
    connected to the HDMI port on the back I/O panel or to a discrete graphics card.
  • Expansion Slots :Intel® Core™ Ultra Processors(Series 2)*
    2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
    Intel® Z890 Chipset**
    1 x PCIe 4.0x4 slot
    * Please check the PCIe bifurcation table on the support site (https:// Asus official site/support/FAQ/1037507/).
    **M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, P
    CIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4
    are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.- To ensure compatibility of the device installed, please refer to https:// Asus
    official site/support/download-center/ for the list of supported peripherals.
  • Multi-GPU Support
  • "
  • Storage :Total supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*
    Support Intel® Core™ Ultra Processors(Series 2)*
    M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes)**
    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
    Intel® Z890 Chipset
    DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    *Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
    **M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, P
    CIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4
    are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
  • Ethernet :1 x Intel® 2.5Gb Ethernet
    1 x Marvell® AQtion 10Gb Ethernet
    ASUS LANGuard
  • Wireless & Bluetooth :Intel® Wi-Fi 7*
    2x2 Wi-Fi 7 (802.11be)
    Supports 2.4/5/6GHz frequency band**
    Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
    Bluetooth® v5.4***
    *Wi-Fi features may vary depending on the operating system
    For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, W
    indows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
    *** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  • USB :Rear USB (Total 10 ports)
    2 x Thunderbolt™ 5 ports (2 x USB Type-C®)
    1 x USB 20Gbps port (1 x USB Type-C®)
    7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)
    Front USB (Total 10 ports)
    1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*
    1 x USB 10Gbps connector (supports USB Type-C®)
    2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    USB Type-C® power delivery output: max. 5V/3A
    *USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
  • Audio :ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**
    - Impedance sense for front and rear headphone outputs
    - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
    - Supports up to 32-Bit/384 kHz playback on front panel
    Audio Features
    - SupremeFX Shielding Technology
    - ESS® ES9219 QUAD DAC
    - LED-illuminated audio jacks
    - Rear optical S/PDIF out port
    - Premium audio capacitors
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    ** The LINE OUT port on the rear panel does not support spatial audio. If you wi
    sh to use spatial audio, make sure to connect your audio output device to the au
    dio jack on the front panel of your chassis or use a USB interface audio device.
  • Back Panel I/O Ports :2 x Thunderbolt™ 5 USB Type-C® ports
    1 x USB 20Gbps port (1 x USB Type-C®)
    7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)
    1 x HDMITM port
    1 x Wi-Fi Module
    1 x Intel® 2.5Gb Ethernet port
    1 x Marvell® AQtion 10Gb Ethernet port
    2 x LED-illuminated audio jacks
    1 x Optical S/PDIF out port
    1 x BIOS FlashBack™ button
    1 x Clear CMOS button
  • Internal I/O Connectors :Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    2 x 4-pin Chassis Fan headers
    2 x 4-pin Radiator Fan headers
    2 x W_PUMP+ headers
    1 x WB_SENSOR header
    Power related
    1 x 24-pin Main Power connector
    2 x 8-pin +12V CPU Power connector
    1 x 8-pin PCIe Power connector
    Storage related
    4 x M.2 slots (Key M)
    1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 20Gbps connector (supports USB Type-C®)
    1 x USB 10Gbps connector (supports USB Type-C®)
    2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
    2 x Addressable Gen 2 header
    1 x Alteration PCIe mode switch
    4 x BCLK button
    1 x BIOS Switch button
    1 x FlexKey button
    1 x Front Panel Audio header (F_AUDIO)
    1 x LN2 Mode jumper
    18 x ProbeIt Measurement Points
    1 x ReTry button
    2 x RSVD switchs
    1 x RSVD header
    1 x Safe Boot button
    1 x Slow Mode switch
    1 x Start button
    1 x 10-1 pin System Panel header
    1 x Thermal Sensor header
  • Special Features :Extreme OC Kit
    - FlexKey button
    - LN2 Mode
    - ProbeIt
    - ReTry button
    - Safe boot button
    - Start button
    - Slow Mode
    Extreme Engine Digi+
    - 10K Black Metallic Capacitors
    - MicroFine Alloy Choke
    ASUS Q-Design
    - M.2 Q-Latch
    - M.2 Q-Release
    - M.2 Q-Slide
    - Q-Release Slim (with PCIe SafeSlot)
    - Q-Antenna
    - Q-Code
    - Q-Connector
    - Q-Dashboard
    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - Q-Slot
    - Q-DIMM.2
    ASUS Thermal Solution
    - Fan bracket
    - M.2 heatsink backplate
    - M.2 heatsink
    - Metal backplate
    - VRM heatsink design
    - 3D VC M.2 Heatsink
    ASUS EZ DIY
    - Backplate
    - BIOS FlashBack™ button
    - Clear CMOS button
    - CPU Socket lever protector
    - ProCool II
    - Pre-mounted I/O shield
    - SafeSlot
    - SafeDIMM
    Aura Sync
    - Addressable Gen 2 headers
    Dual BIOS
    Full Color 5" LCD Display
    ROG M.2 PowerBoost
    Front Panel USB 20Gbps with Quick Charge 4+ Support

    - Support: up to 60W fast charging and USB Wattage Watcher*
    - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
    - Compatible with PD3.0 and PPS
    * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
  • Software Features :ROG Exclusive Software
    - ROG CPU-Z
    - Dolby Atmos
    - Internet Security (1-year full version)
    ASUS Exclusive Software
    Armoury Crate
    - AIDA64 Extreme (1 year full version)
    - Aura Creator
    - Aura Sync
    - Fan Xpert 4 (with AI Cooling II)
    - GameFirst
    - HWiNFO
    - Power Saving
    - LCD Display
    ASUS AI Advisor
    ASUS Driver Hub
    Turbo Vcore
    ASUS GlideX
    Thunderbolt™ Share
    USB Wattage Watcher
    WinRAR (40 Days Free Trial)
    Adobe Creative Cloud (Free Trial)
    UEFI BIOS
    AI Overclocking Guide
    NPU Boost
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash
    - ASUS UEFI BIOS EZ Mode
    - ASUS MyHotkey
  • BIOS :2 x 256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability :WOL by PME
  • Accessories :Cables
    1 x 1-to-3 ARGB splitter cable
    1 x 1-to-2 ARGB splitter cable
    2 x 1-to-4 fan splitter cable
    2 x ROG weave SATA 6G cable packages
    1 x 3-in-1 Thermistor cables pack
    ROG Q-DIMM.2 with Heatsink
    1 x ROG Q-DIMM.2 with heatsink
    1 x M.2 pad package for ROG Q-DIMM.2
    2 x Thermal pad for ROG Q-DIMM.2
    Additional Cooling Kit
    2 x Thermal pad for M.2 22110
    1 x DDR5 Fan holder
    Miscellaneous
    1 x ASUS WiFi Q-Antenna
    1 x Q-connector
    1 x ROG logo plate sticker
GTIN: 4711387754160

Shipping Details



Shipping Policy: Please note: We generally do not ship to PO BOX or Parcel locker. Please concoct us for special arrangement before you place an order for these addresses. All items will be shipped to buyer's address. If you are in a Suburb/Town, please put the Suburb/Town name on the City line directly. Please double-check your shipping address when you make the payment. Buyer is responsible for any extra postage cost caused by incorrect shipping address. All items will be shipped within 24-72 business hours upon receipt of payment. In most cases, delivery takes around 1-7 business days, it's highly depended on the efficiency of the shipping carrier. Estimated delivery date is calculated by carrier's system, delivery times may vary, especially during peak periods.

Address Changes: If you enter the incorrect name or shipping details and the item is returned to us, you will be subject to a RTS(return to sender) fee if we are unable to change the details before dispatch, and well as a reshipping fee (dependent on the items weight). We are not responsible for these changes if there is a mistake entered by the buyer. This fee is typically anticipated to be $10.50 for RTS + stander postage for re-shipment, regardless of Sale value



30 DAY MONEY BACK RETURN POLICY

If you are unhappy with your item for whatever reason, simply return it to us for a replacement, or refund.

The item must be returned in its original packaging/condition for change of mind purchases, please note a 20% deduction fee applies to any change of mind returns, minimum $10. The buyer is liable for the return postage. This also applies to orders cancelled when the item has already been dispatched from our warehouse.

Please note we only accept change of mind returns if it is returned in a saleable condition with original packaging. By saleable condition we mean that the item hasn’t been opened with factory sealed, is still in its original packaging and all manuals, packaging and accessories are included. If the item is missing the original packaging, or in the original packaging but damaged, or unsaleable condition, then unfortunately we won't accept this return. All items we sell come with a unique serial number. The serial number of the returned item must match the item we sell.

DOA Warranty Claims Policy
For items Dead on Arrival (DOA), Damaged in Transit, Faulty, or Delivered Incorrectly, please immediately contact our Customer Service team. We will assist you in resolving any concerns by possibly having the product returned in suitable packaging (preferably its original packaging).

Please Note:
A replacement or refund will be issued after the faulty item has been returned to us. Assessment may apply in some circumstances before a refund or replacement can be issued.

Standard Warranty Claims Policy

Items found to be faulty outside of the DOA period will be subject to standard warranty terms. ALL of our products are supported by a minimum 12 month return to base warranty. This warranty covers all manufacturer faults with the product. Please contact the product's manufacturer for troubleshooting first and more details about warranty terms.

Please note:
The customer will be responsible for any return postage costs.
The processing time is generally 2-4 weeks from when we receive the faulty unit.
The Warranty claim may result in a repair, new or refurbished replacement, or refund depending on manufacturer approval.
The customer should provide their invoice number and item's serial number when contacting us.



Refund Guarantee Icon
Shop with peace of mind
All marketplace products are covered by our MyDeal Refund Guarantee Learn More

Estimated Delivery Time Frame: 1-7 business days

Have a question about this product? Click here
Secure ways to pay at checkout
Buy Now, Pay Later
From $10/week with
Zip
4 interest-free instalments of $497.92 (excluding shipping) by AfterPay
Pay in 4 interest-free payments of $497.92 with PayPal
Sold & shipped by Best Deal Computers
cashback icon
platinum Seller
A seller's rating is an overall score calculated from performance metrics. Learn More
97.43%
Proudly growing a MyDeal Forest
Proudly growing a MyDeal Forest
By purchasing from MyDeal, you’re helping us plant 7.8 hectares of trees per year with Greenfleet. Learn More

More from this brand

Reference ID: 13214882

Reviews (0) Add Review

No reviews yet
