ASUS IoT PV100A +HDC Cable Full Version Edge computer i.MX8M, Quad Core, 1.3 GHz 2G/16G 1xHDMI, 2xEthernet ports, 3xUSB, 4xRS232, 2xNano-SIM, 4xDI/DO, Linux Yocto

Intelligent Edge Computer, PV100A

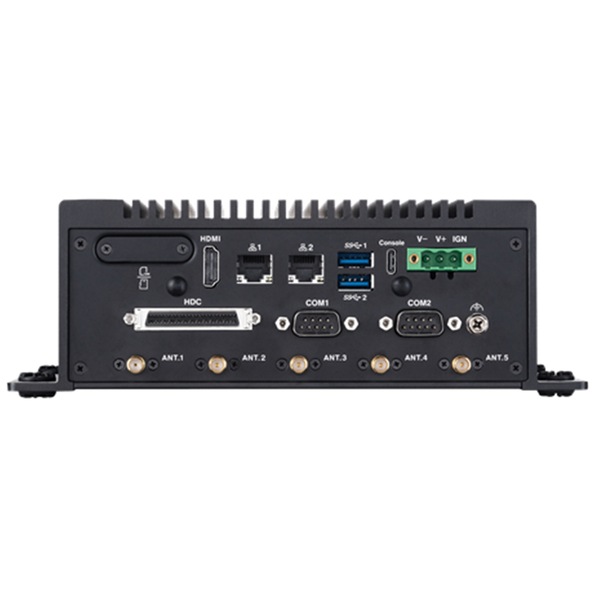

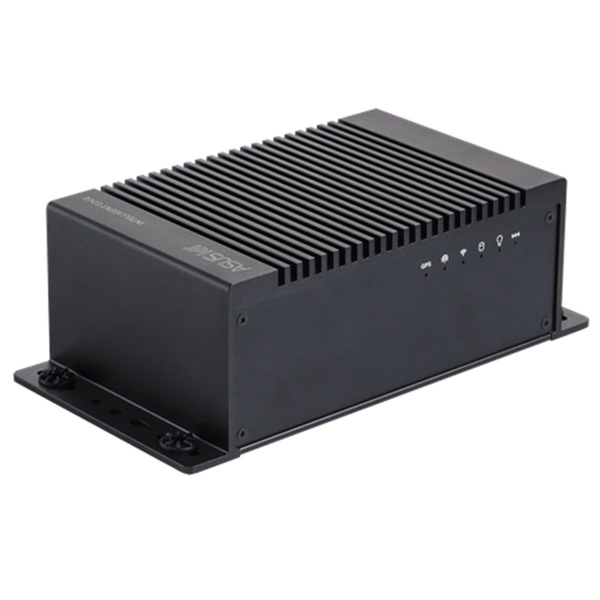

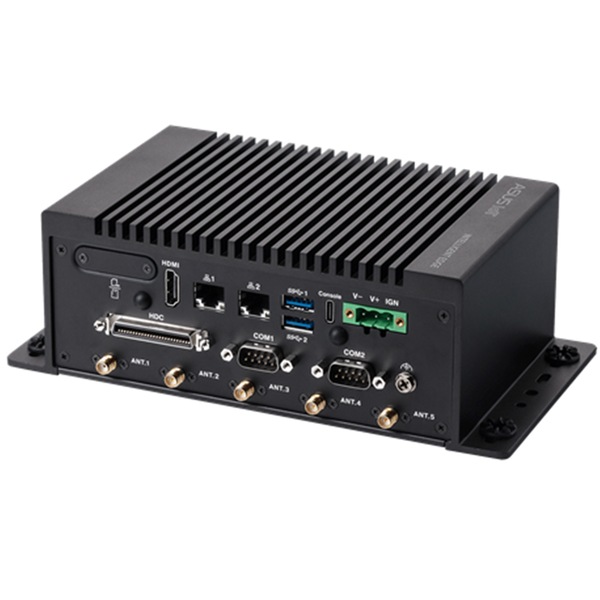

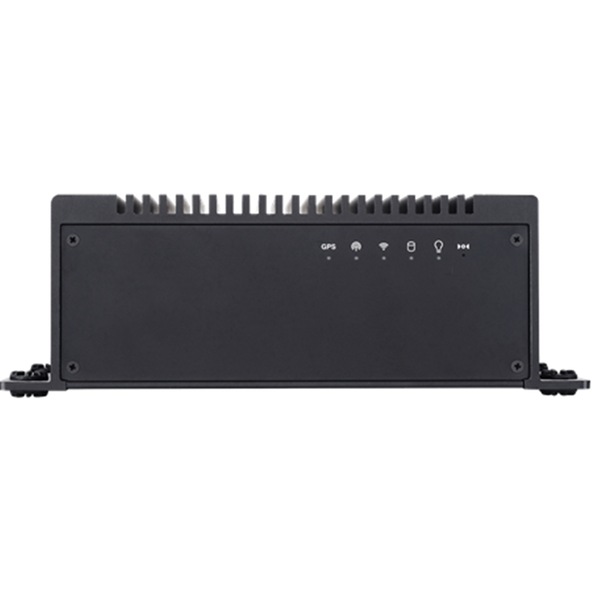

NXP i.MX8M chipset embedded in-vehicle edge gateway with one-sided I/O, full-line LED indicator, multiple essential I/O and expansion cable
ASUS PV100A is a powerful in-vehicle edge gateway that encompasses versatile I/O such as HDMI, triple USB, dual COM, dual Lan, etc. Above the palm-sized compact aluminum chassis, extra I/Os are perfectly feasible through high density cable. Ran by NXP i.MX8M, this fanless edge computer is capable of multiple connectivity, intelligent ignition power control, and wake up event setting. Under the rugged in-vehicle environment such as harsh shock & vibration and wide temperature, PV100A is validated by MIL-STD reliability, wide temperature testing, E-Mark, etc.
- Vehicle diagnostic interface support: dual CAN (2.0 A/B, CANOpen, J1939, OBD-II)
- Built-in GNSS (Supports UDR), Wi-Fi, BT, WWAN modules
- Intelligent vehicle power management: Ignition On/Off delay
- -20~60°C wide-operating temperature with 4G LTE + Wi-Fi + GPS solution integrated
- Vehicle regulation: E-mark, EN50155, SAE J1455, ISO 7637-2

ASUS IoT Intelligent Ambulance Management
ASUS IoT PV100A is an intelligent in-vehicle edge gateway for ambulances, which enables remote healthcare professionals to receive first-aid instructions via a cloud-based platform - including real-time video calls. Back at base, the control center is able to relay key information about the ambulance, including the location and both the vehicle and driver status, enabling staff to make informed decisions on dispatch.

Realize real-Time & Efficient First Aid Operation
An intelligent ambulance could help in administering timely first-aid instructions from specialized doctor. This could save 10 minutes or more of medical time. It could also decrease medical disputes based on SOP management
An emergency medical-division control center could leverage a cloud-based fleet-management system enable real-time dispatch for emergencies. Simultaneously, the hospital resources could prepare in real-time, with less than 30 seconds to preparation for task execution.
In the cabin of ambulance, real-time video surveillance could assist a remote doctor in monitoring and issuing instructions to the mobile medical personnel who are escort the patient. As well, vital-sign sensors could be connected for real-time data to the hospital information system - enabling the awaiting doctor to perform diagnostics and preparation in advance of the patient's arrival.

ASUS IoT PV100A application
ASUS IoT PV100A in-vehicle edge gateway has a broad selection of I/O for connecting to sensors and peripherals. Use cases include:
Touch display as HMI via HDMI interface could deliver information to the driver.
Ethernet port could connect IP camera for real-time video surveillance to enable remote first-aid instruction
DIO could control and manage siren during emergency mission.
Intelligent power management could manage PV100A power status remotely, and also monitor battery condition of the vehicle.
CAN bus could retrieve big data from the vehicle engine for vehicle-condition diagnostics and driver-behavior management.
GPS could provide real-time location for centralized fleet-management solution.
ASUS PV100A could serve as the ideal in-vehicle edge gateway to implement the 'internet of ambulances' vehicle concept.

Download data sheet: https://dlcdnets.asus.com/pub/ASUS/mb/Embedded_IPC/PV100A/PV100A_Datasheet_20230217.pdf?model=PV100A
*Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details. Brand and product names mentioned are trademarks of their respective companies.
The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.

System
CPU
i.MX8M, 4 x Cortex-A53 Quad Core, 1.3 GHz
Memory
2 GB DDR4 onboard
OS Storage
16 GB eMMC onboard
Environment
Operating Temp.
-25~70°C w/ all module operating (industrial parts)
0~40° w/ all module operating (commercial module)
Storage Temp.
-40~85°C
Relative Humidity
5 to 95% (non-condensing)
EMC
CE (ITE), FCC, VCCI, RCM, CCC
Vehicle Regulation
E-Mark (12/24V), ISO-7637-2, SAE J1455, EN50155
Military Standard
MIL-STD-810H
Safety
UL, CE-LVD, CB, CCC, BSMI
Shock
Operating: IEC 60068-2-27 (w/ SD card), MIL-STD-810H
Vibration
Operating: IEC 60068-2-64 (w/ SD card), MIL-STD-810H
Green
GA (RoHS)
Power
Power
9 to 36 VDC, 3-pin terminal block
*supports ignition ON/OFF control and remote power button
Mechanical
Mounting
Wallmount with 4 shock absorb rubber
Dimensions
216(L) x 112(W) x 70.5(H) mm
Weight
1.62 kg
External Interfaces
Video
1 x HDMI 2.0, supports up to 3840 x 2160 @60Hz
Ethernet
2 x 10/100/1000 Mbps Ethernet ports, RJ45
USB
2 x USB 3.2 Gen.1, Type-A
1 x USB 3.2 Gen.1, supports OTG, Type-C
COM
1 x RS-232/422/485, DB9
1 x RS-232/422, DB9
SIM
2 X Nano-SIM slot
High Density Connector
4 x isolated DI, 4 x isolated DO
2 x RS-232/422/485
1 x Mic-in, 1 x Line-out
2 x CANbus (CAN2.0 A/B, CANOpen, J1939, OBDII)
*all interfaces are integrated in one high density connector, please purchase high density cable from optional accessory list
Storage
Micro SD
1 x Micro SD Card slot (on-board)
M.2 E Key
1 x mSATA slot (shared with Mini PCIe socket)
Expansion Slot
Mini PCIe
1 x Mini PCIe socket (supports SATA & PCIe & USB signal, supports mSATA up to 512 GB)
* 2 signal configurations can be selected via SW: (1) PCIe & USB (2) SATA & USB
M.2 B Key
1 x M.2 2242 B-key socket (supports UDR GPS module)
M.2 E Key
1 x M.2 2230 E-key socket (supports BT/Wi-Fi module)
Others
Watch dog timer
Yes. HW WDT Enable (WDT_EN)
G-sensor
Triple-axis accelerometer (±2g/4g/8g)
Operating System
Linux Yocto
- MPN: 90AE0070-S0P001

MPN: 90AE0070-S0P001
