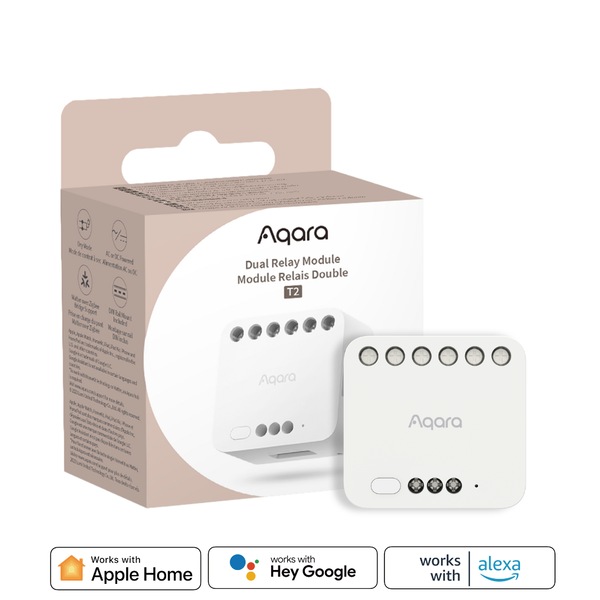

Aqara Dual Relay Module T2

Aqara Dual Relay Module T2

Be the first to review this product

Hurry! 6 items left!

Price	$69
	Collect 69 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

The Aqara Dual Relay Module T2 utilises Zigbee technology to regulate power, managing on and off functions for a variety of devices including motors, garage doors, lights, switches, and sockets. It operates in two modes: dry contact and wet contact, enhancing the intelligence and potential of traditional equipment. When connected to the Apple Home platform, the device seamlessly integrates with the Apple Home app. Moreover, it boasts broad compatibility with various third-party platforms. With the assistance of a hub, features such as app-based remote control, timing control, and power statistics can be easily implemented.

A Versatile Solution for Your Home: The T2 is a versatile device that can be employed in various applications. It can be installed in ceiling lights for smart control, or in regular wall switches and sockets for remote access. Additionally, it's well-suited for automating coffee machines, air fresheners, electric heaters, roller blinds, and garage roller doors in homes.
Wide Compatibility: The T2 is compatible with Apple Home, Google Home, and Amazon Alexa. It transforms traditional devices into smart ones and seamlessly integrates with multiple third-party systems. This facilitates automated setup and linkage with other compatible products, offering a versatile and user-friendly experience.*
Matter Compatible: The Dual Relay Module T2 is also compatible with Matter, enabling seamless connectivity with a wide range of smart home manufacturers.**

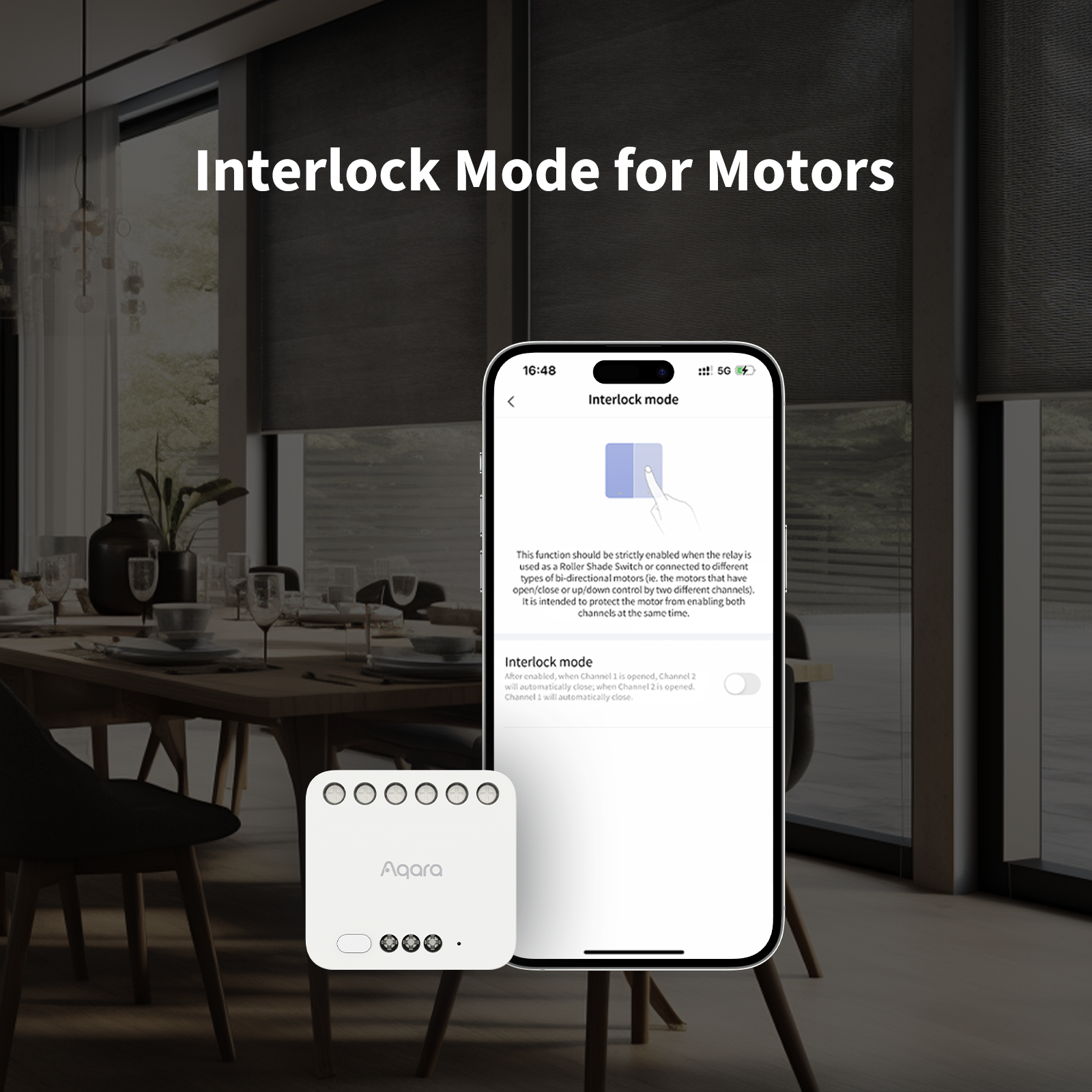

Interlock and Motor Control: Connecting the Dual Relay Module T2 to bidirectional motors is easy and ensures safety. Now, the T2 can be utilised to control tubular motors, serve as a roller shade switch, and even function as the core of the system.

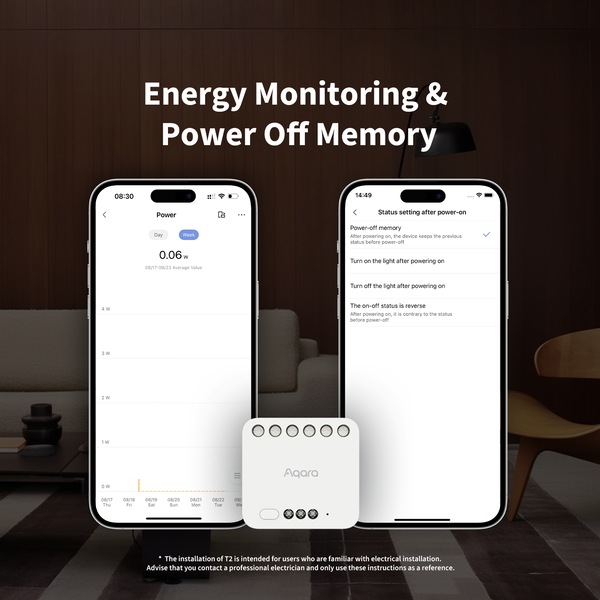

Energy Monitoring and Power Memory: The Dual Relay Module T2 includes a power on/off state memory function, retaining the last state even after a power failure. Additionally, it offers power metering and statistics features.

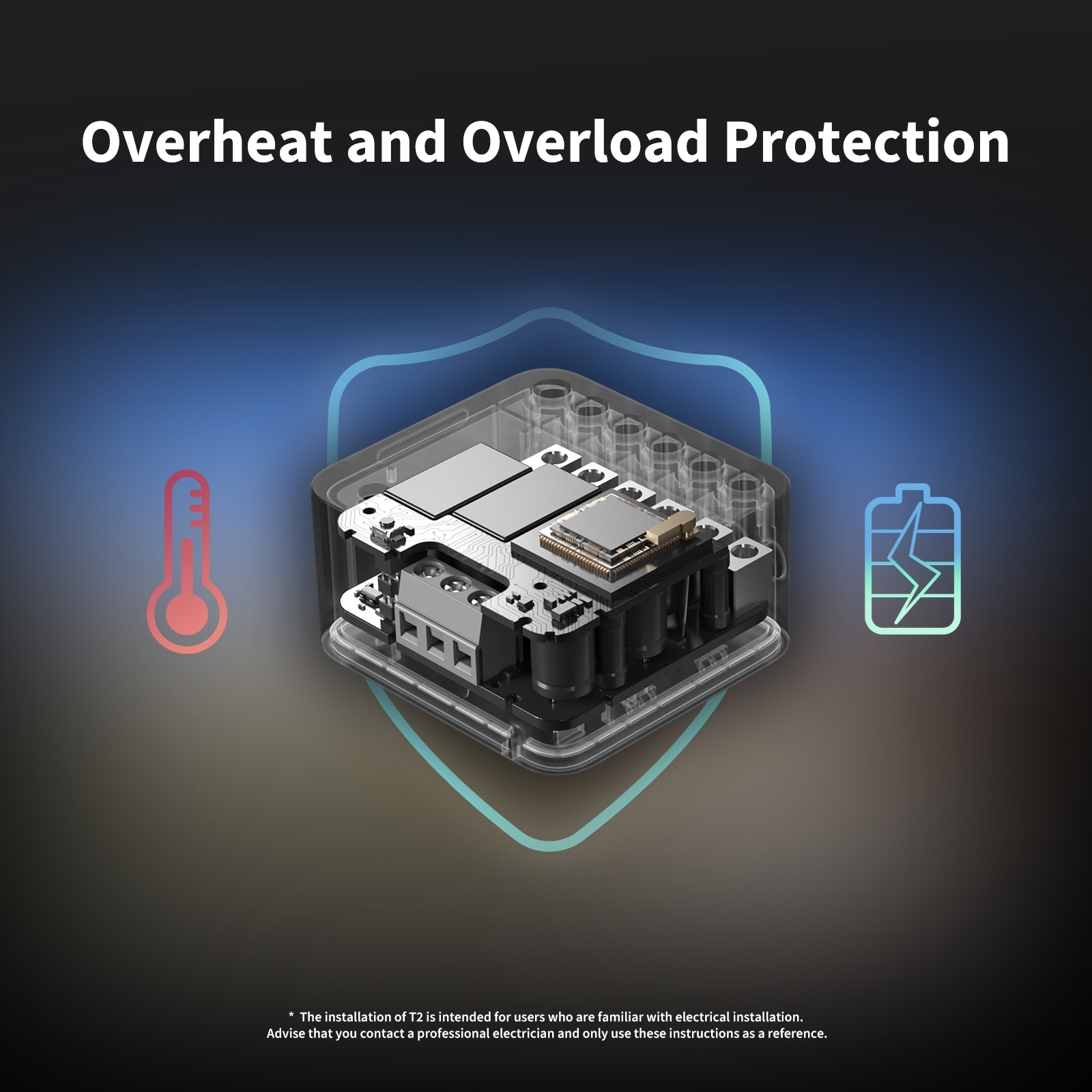

Enhanced Safety and Security: Safety is our top priority when dealing with electrical equipment. The Dual Relay Module T2 is not a DIY item and should be installed by a licensed electrician only. Our commitment to safety includes the Dual Relay Module T2 automatically turning of the power supply in cases of abnormal waking states to ensure safety.***
Wireless Switch Mode: The conversion to wireless switch mode is also supported. With this feature, the existing wall switch can be transformed into a scene controller, allowing you to arm or disarm the security system and control curtains or lights using your old wired switch.****

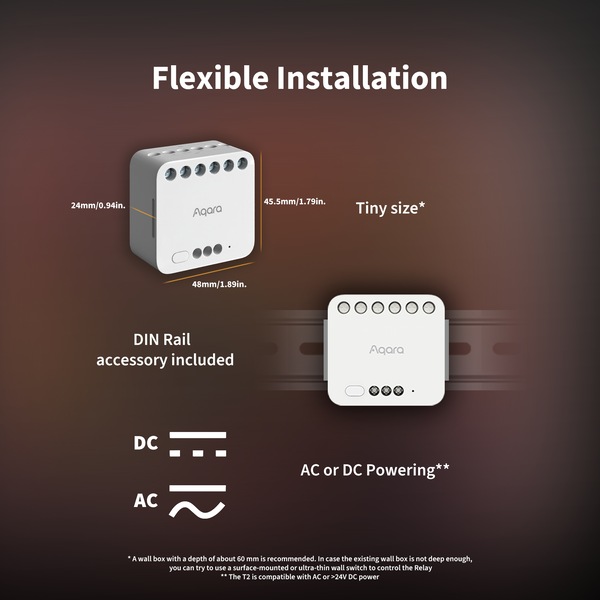

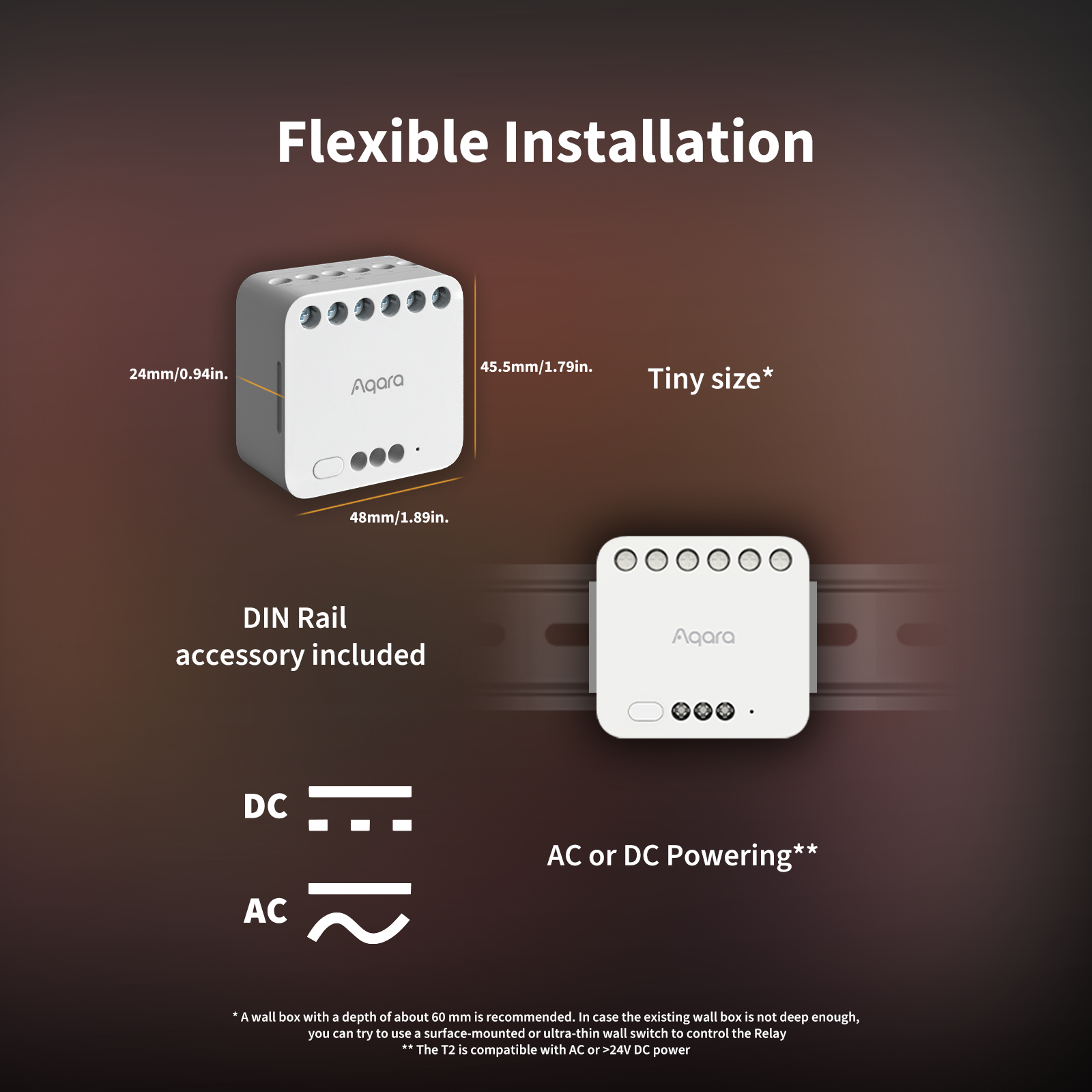

Easy to Use and Installation: The relay's DIN rail-mounted design makes it easy to install in electrical cabinets and other confined spaces.*****

*Aqara hub is require to connect to Apple Home, Google, Alexa, and Matter.

** Border router is required to connect to matter over Zigbee.

*** The installation of the T2 is designed to be installed by licensed electricians only. We provide these instructions solely as a reference.

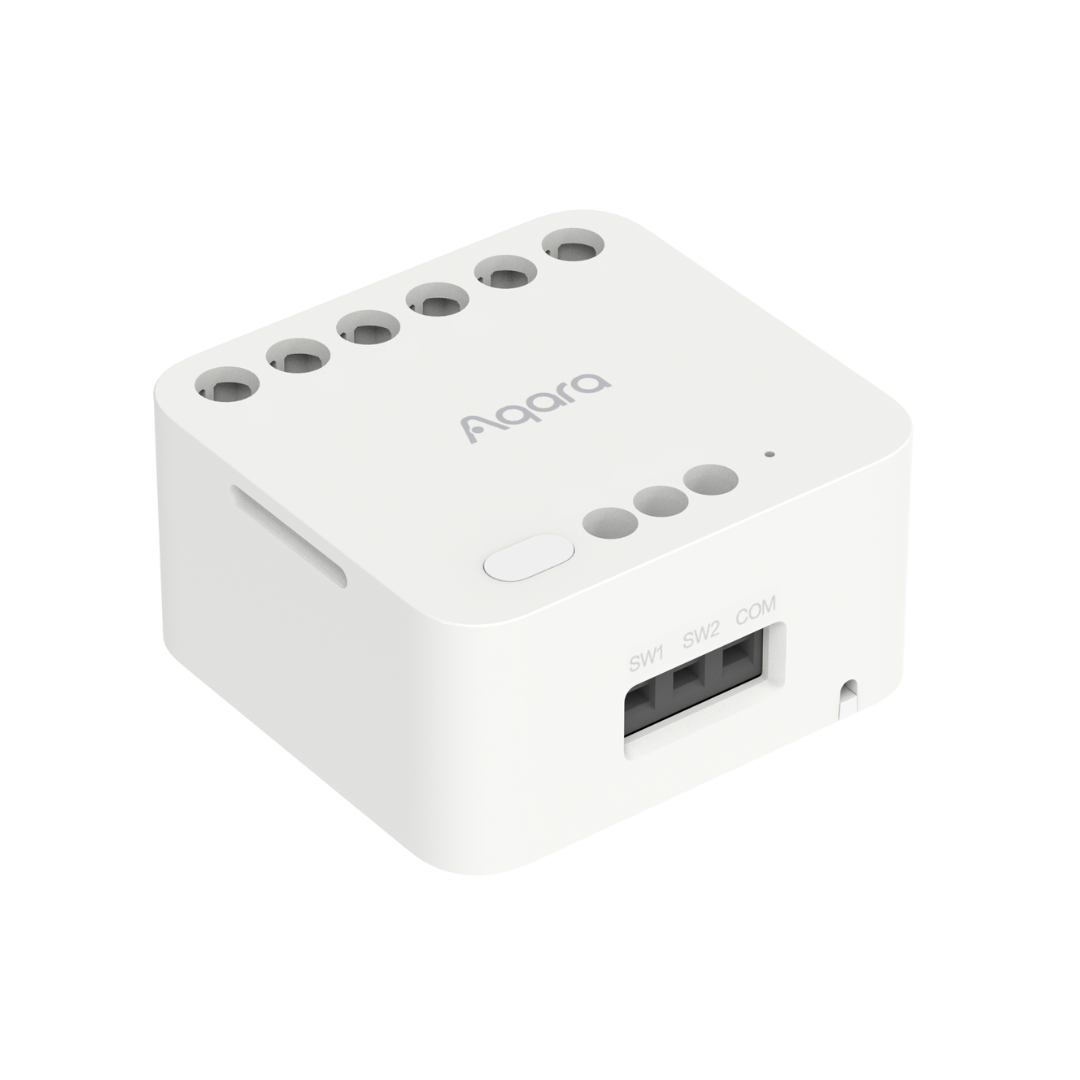

****Please note: the sensor or a switch connected to S1/S2/COM contacts should support the voltage supplied to the Relay.

*****Please note: The T2 supports a maximum current of 10A, and we recommend a wall box with a depth of about 60 mm. If the existing wall box is not deep enough, you can explore using a Wireless Remote Switch H1 or a surface-mounted or ultra-thin wall switch to control the Relay.

Automation Capabilities:

Garage Door Controller

IF you arrive within 500m from your home

Then open the garage door.

Thanks to the dry-contact mode, the Relay T2 can turn your existing garage door into a smart one*. Simply wire the garage door opener, and you can incorporate the garage door into automations and integrate it with third-party systems. Additionally, the Relay serves as a repeater for your Aqara Door and Window sensor, ensuring a strong signal.

*Note: The garage door opener should be controllable using dry contacts.

(Requires: Dual Relay T2 + Hub + Door & Window Sensor)

Install It Behind Wall Switches & Outlets

IF a presence is detected

THEN Turn on a light switch or a heater connected to the outlet.

Simply install the T2 behind your existing wall switch or outlet, and you can convert it into a smart one. This allows existing outlets and switches to participate in automations and gain access to the power consumption statistic function.

(Requires: Dual Relay T2 + Hub + Presence Sensor FP2)

Speci cations

Model: DCM-K01
Wireless Protocols: Zigbee
Dimensions:5 x 48 x 24 mm

Rated Parameters:

100-250V, 50/60Hz/Max 10A, Max 2500W

Incandescent Lamp Max 1A, Max 250W

LED, CFL Fluorescent Lamp Max 1A

Motor Max 1/4 HP

24-30V: Max 10A, Max 300W (Resistive Load)

30-60V: Max 1A, Max 60W (Resistive Load)

Operating Temperature: -10 oC ~ 40 oC
Operating Humidity: 0 ~ 95% RH, no condensation
Zigbee Operation Frequency: 2405-2475 MHz
Zigbee Maximum Output Power: 13 dBm

Supports: Aqara Home, Apple HomeKit*, Google Home*, Alexa*

*Requires Aqara Hub

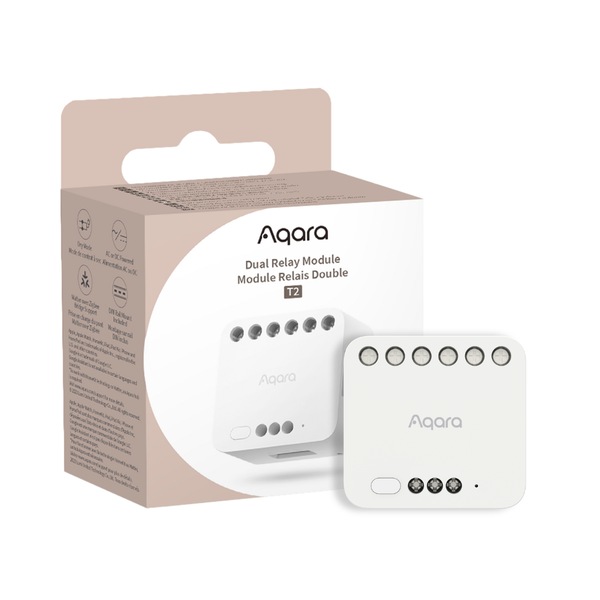

What's in the Box

Dual Relay Module T2 x 1, User Manual x 1, DIN Rail Accessory x 1, Jumper Wire x 1

GTIN: 6970504218635
