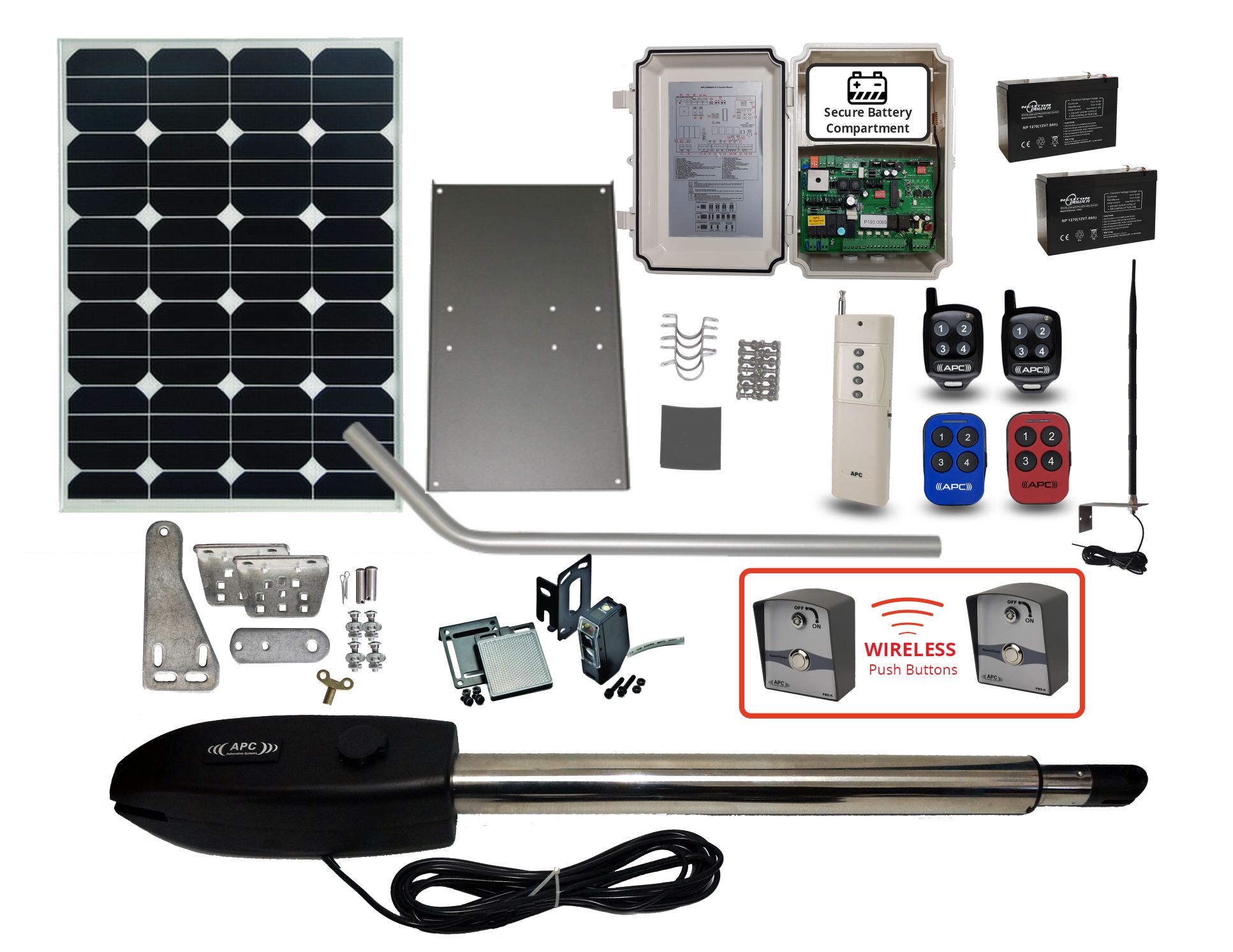

Gate Opener Kit Includes
- APC-T575L Actuator Kit (QTY: 1)
- APC Weatherproof Control Box with Built-in Battery Compartment (QTY: 1)
- APC Four Button Keyring Remote (QTY: 2)
- APC Sun Visor Remote (QTY: 2)
- APC Four Button Long Distance Remote (QTY: 1)
- APC 433mhz Booster Antenna (QTY: 1)
- APC Wireless Single Push Button Switch with Key Isolation (QTY: 2)
- 9aH High Capacity Battery (QTY: 2)
- 24v 60 Watts Solar Panel (QTY: 1)
- Solar Panel Fence Post Bracket for APC 60 Watt Solar Panels (QTY: 1)
- APC Retro Reflective Safety Sensor - for gate opening system safety | Retro Reflective Gate Sensor (QTY: 1)
Product Information
Heavy Duty Slimline Stainless Steel Telescopic Linear Actuator
Heavy-Duty 24V Motor with powerful and quiet operation comprised of a cast alloy rear housing and a stainless steel piston for the ultimate compact design and neat appearance Easy to use manual override using the supplied butterfly key in an emergency situation. The system can handle light and heavy gates up to 250kg maximum weight, or up to 3m maximum lengths.
Emergency Clutch Override
Easy manual override in case of an emergency using the supplied butterfly key, slot in and turn clockwise to operate the gates manually.
All Metal Gears
Powerful and whisper-quiet 24V motor and all-metal gears
Specifications
| Gear Type | Metal Lead Screw, All Metal Gears |
| Motor Voltage | 24v DC |
| Manual override | Via override butterfly key supplied |
| Working temperature | -10° - 50° |
| Duty Cycle | 20% |
| Maximum stroke | 350mm |
| Gates size | 3m max |
| Gate weight | 250kg max |
Weatherproof Control Box
The CBSW24 series smart control panel is easy to connect, simple to set up and feature-rich control box vast amount of features as listed below:
Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
System Features
Standalone Solar System
High Capacity Battery System
Built-In Solar Regulator
Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra-High-Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes
Safety Features
Adjustable Overcurrent adjustments
Safety Sensor connection input
Automatic Courtesy Light Output
Special Features
Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be used to control the Lock 2 function.
Accessories Compatibility
Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Smart Opening Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Lock Output
Controlling Options
Any or all of the following may be connected to operate the gate
Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
| 24V 60 Watt Solar Panel |
| The SP-24V-60 is a 60 Watt, 24 Volt solar panel, and will provide enough power to trickle charge a 24V vehicle or deep cycle battery. Helps run pumps, lights, fans, and small appliances such as stereos, televisions and VCRs in caravans, boats or cabins. A heavy-duty anodized aluminium frame provides strength and convenient mounting access. Cells are laminated between high transmissivity, low-iron, 3mm tempered glass and sheet of tedlar-polyester-tedlar (TPT) material by two sheets of ethylene Vinyl acetate (EVA). This protects against moisture penetrating into the module. | |
| Open Circuit Voltage | 42.48V | | Optimum Operating Voltage | 36V | | Short Circuit Current | 1.83A | | Optimum Operating Current | 1.66A | | Dimensions | 805 x 535 x 30MM | | Cells | Mono Crystalline | |
| Solar Panel Post Bracket for APC 60 Watt Solar Panel |
| This solar panel post bracket set is suitable for the APC 60 watt solar panels.
| |
| Kit Contents |
- Solar Panel Mounting Post
- Solar Panel Mounting Plate
- Nuts, Bolts and Washers
- Saddle Clamps
- Rubber Pads
- T Brackets | |
24V 9aH Battery System
Supplied with the automation kit the 24V 9aH battery system will allow for continued use of the gate system whether day or night. The system can operate for up to one week of regular residential use without any charge from the solar panel (winter months/wet season) and will automatically recharge from sunlight. When the system batteries are fully charged it will continue to float charge to keep the batteries topped up ready for use. In the case of extended use requirements or higher duty, there are upgrade options to 17aH and 33aH battery systems.
Specifications
| Power Input | 20W 24V Solar Panel (Upgradable) |
| Regulator | Built-In On Board Regulator |
| Motor Output Voltage | 24v DC |
| Battery System | 24V 9aH (Upgradable) |
| Working temperature | -10° - 50° |
| RF | APC Rolling code 433.92mhz |
| Lock Output (Primary) | 24V DC |
| Lock Output (Secondary) | 12V DC |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 24V DC |
| Overcurrent | 1A to 5A |
Long Distance Remote
The APC-RC450S Long range remote is capable of achieving operating distances of up to 400 metres, coupled with the add on booster antenna it can reach up to 800 metres. With these distances, you can operate the gate system from around the property, at the home or from the workshop. Multiple long-range remotes can be used on one system.
APC Booster 433mhz Antenna
The APC booster antenna is suitable for gate automation systems, garage doors, receivers and any other devices using the 433mhz or 433.92mhz radio frequency band.
As a general rule of thumb on a properly functioning system, you can expect to see results of doubling the range of the transmitter.
The antenna can also help in resolving issues where the transmitter range is decreased due to installation methods such as a receiver being behind a metal fence, brick pillar, metal box and numerous other range decreasing factors
Compatible devices
- APC-RC4S Four Button Keyring remote, up to 80m operating distance
- APC-RC4-SV Four Button Sun Visor Remote (six colour choices), up to 100m operating distance
- APC-RC450S Long Distance Remote, up to 800m operating distance
- APC-KP2W Two Channel Wireless Keypad APC-KP2W, up to 40m operating distance
- APC-PBS-KW Single Wireless Button with Isolation Key, up to 10m operating distance
- APC-PBD-KW Double Wireless Button with Isolation Key, up to 10m operating distance
- APC-PBS-KW (2nd Generation) Single Wireless Button with Isolation Key, up to 100m operating distance
- APC-PBD-KW (2nd Generation) Double Wireless Button with Isolation Key, up to 100m operating distance
Specifications
- Suits all 433MHz and 433.92MHz motors
- Can potentially double the specified operating range
- 5m RG58 Pre-wired Coaxial Cable
- Stainless Steel Mounting Bracket
- Long Range 6.5dbi
APC-RR-11 Retro-Reflective Sensor
The retro-reflective Safety sensor set is used to prevent the closing cycle occurring during the case of the sensor path being interrupted by vehicles, trailers or any other obstacles.
If the gate begins to close and the sensor path is interrupted then the gate will stop and return to the open position.
The sensor ( which is the transmitter and receiver) is wired back to the control box of the gate system using the pre-connected cable. There is no requirement for wiring across the driveway using this type of sensor.
- Up to 11 Metres Infrared beam operating distance
- Only powers on when the command is given to close the gates
- Alignment Misalignment led to assist in the installation process
- Resin filled for the ultimate weatherproofing
Wireless Push Button with Isolation Key
The wireless push button switch is a simple and easy to use method to operate the gate. It is mounted in the general area of the gate and can be isolated by using the supplied keys without affecting the rest of the system, this is handy if you want to continue using the remotes or any other method of operation but wish to stop the use of the push-button itself.
The wireless push button communicates with the control board using the same rolling code 433mhz frequency as the remote thus eliminating the need for any extra add ons. If required the wireless push button can be upgraded to a wireless keypad for higher access security using a pin number.
