UPAPC-AP4424A

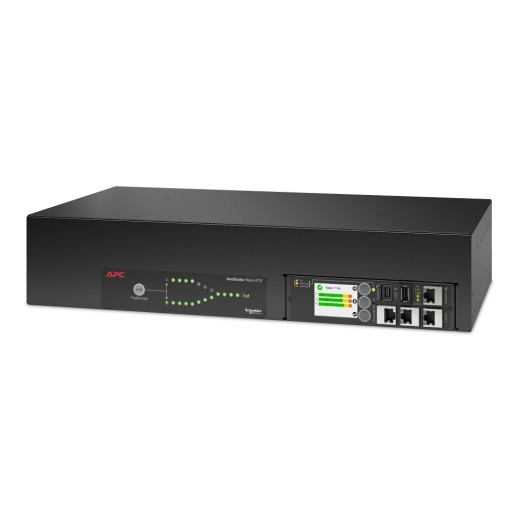

APC Netshelter Rack Automatic Transfer Switch, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz
APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4424A is single phase 2U Rack ATS with 32A rated current, 230V rated voltage and 7400VA load capacity. It comes with inbuilt circuit breaker protection, 2 IEC 309 inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
Main Input Voltage 230 V AC 1 phase
Main Output Voltage 230 V AC 1 phase
Input Connection Type IEC 60320 IEC 60309 32 A 2P + E, IEC 60320
Number of rack unit 2U
Cable length 2.44 m
Number of cables 2
Provided equipment Mounting hardware, Rack mounting brackets
Network frequency 50/60 Hz
Permissible voltage 207 253 V
Load capacity 7400 VA
Ambient air temperature for operation -5 45 C
Relative humidity 5 95 %
Operating altitude 0...10000 ft
Ambient air temperature for storage -25 65 C
Storage Relative Humidity 5 95 %
Mounting mode- Rack mounted
Compatible Mounting- AP7768, AP7769
Sensors- AP9335T, AP9335TH
