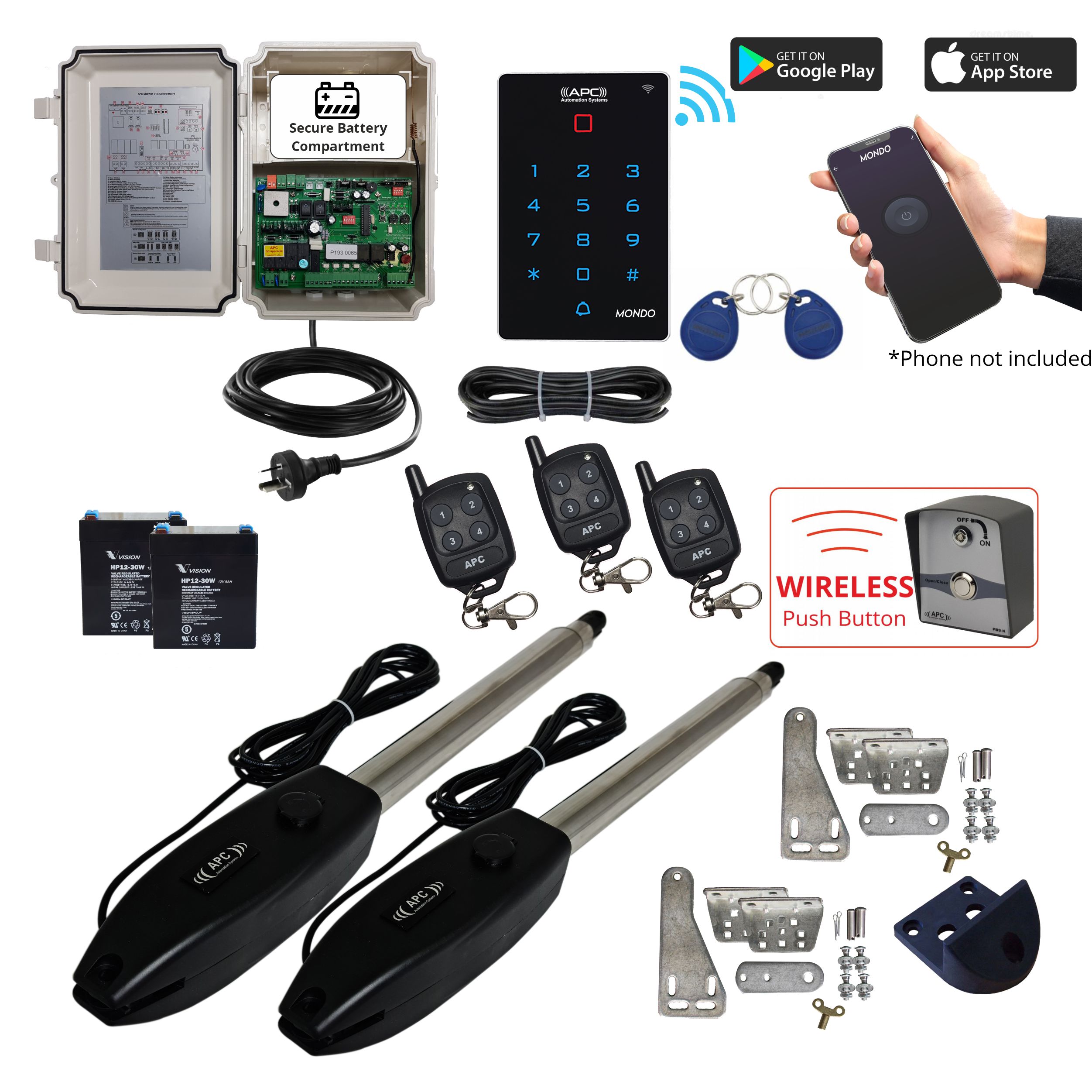

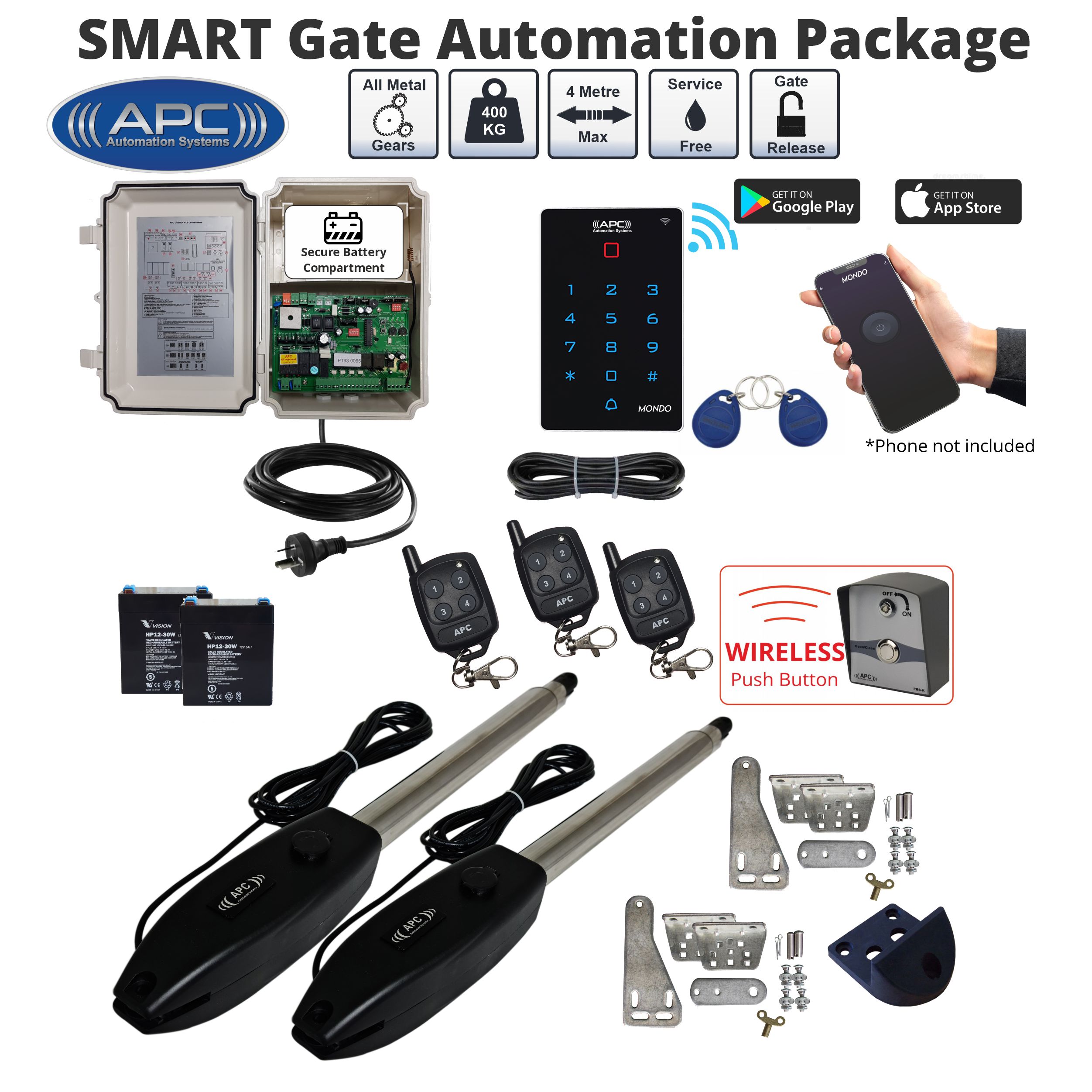

Gate Opener Kit Includes
- APC-T575L Actuator Kit(QTY: 2)
- APC Weatherproof Control Box with Built-in Battery Compartment and 1.2m Power Cord (Ready to Plug-In)(QTY: 1)
- APC Four Button Keyring Remote(QTY: 3)
- 5aH Battery Backup(QTY: 2)
- 65mm High Centre Driveway Rubber Gate Stop with Steel Base(QTY: 1)
- APC Mondo Wi-Fi Keypad with APP Control and Swipe Tag Reader
- 10m 4 Core Non-Shielded Cable
- Em Swipe Tag
- APC Wireless Single Push Button Switch with Key Isolation
Product Information
Heavy Duty Slimline Stainless Steel Telescopic Linear Actuator
Heavy-Duty 24V Motor with powerful and quiet operation comprised of a cast alloy rear housing and a stainless steel piston for the ultimate compact design and neat appearance Easy to use manual override using the supplied butterfly key in an emergency situation. The system can handle light and heavy gates up to 200kg maximum weight each or up to 2m maximum length each.
Emergency Clutch Override
Easy manual override in case of an emergency using the supplied butterfly key, slot in and turn clockwise to operate the gates manually.
All Metal Gears
Powerful and whisper-quiet 24V motor and all-metal gears
Specifications
| Gear Type | Metal Lead Screw, All Metal Gears |
| Motor Voltage | 24v DC |
| Manual override | Via override butterfly key supplied |
| Working temperature | -10° - 50° |
| Duty Cycle | 20% |
| Maximum stroke | 350mm |
| Gates size | 2m max each |
| Gate weight | 200kg max each |
Weatherproof Control Box
The CBSW24 series smart control panel is easy to connect, simple to set up and feature-rich control box vast amount of features as listed below:
- Fully weatherproof with a seal
- Pre Connected Weatherproof Glands for Wiring Connections
- Hinged door with a padlock slot for added security
- Pre-Wired and ready to plug into a regular 10A power point
System Features
- Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gates
- Automatic Feature Learning will learn all features of the remote with a simple pairing process
- Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
- Adjustable Automatic Close time up to 3 minutes
- Pedestrian Function allows for only one of the gates to be operated, this can be toggled by remote, keypad or push button
- Second Motor Delay Time, the second gate motor can operate simultaneously with the first gate motor or be delayed by 3 to 5 seconds.
Safety Features
- Adjustable Overcurrent adjustments
- Safety Sensor connection input
- Automatic Courtesy Light Output
Special Features
- Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
- Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.
Accessories Compatibility
- Constant 24V DC Accessories Output
- Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
- Open/Stop/Close Inputs for Single Gate Operation and Double Gate Operation
- Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
- Smart Opening Closing LED indicators: Green LED on during opening and Red LED on during the closing
- Automatic Electric Magnetic Lock Output
Controlling Options
Any or all of the following may be connected to operate the gate
- Remote controls
- Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
- Keypads (Wired and Wireless Options Available)
- Exit/entry sensors
- Intercom system with dry contact output
- Automatic switching timer
- WiFi Control System (App-Based Control)
- GSM Control Systems (Mobile Call/SMS based Control)
Battery Back-Up
Supplied with the automation kit the backup battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.
APC Mondo Wired Keypad with Wi-Fi and APP Control and Swipe Tag Reader (Two Swipe tags and 10m Cable included)
The APC Mondo Wi-Fi Keypad can be used as a simple keypad access control device or alternatively as an advanced unit. Its special features allow the system to be operated by Pin Code, Swipe Tag and even remotely by APP whether on-site or off-site (anywhere in the world).
Key Feature Set:
- Full operational control by Tuya APP
- Resin Filled for best weatherproofing
- 12-24V DC Compatible
- Low Power Consumption
- Backlit Touch Keys
- Up to 2000 Users
- Pin Code, Swipe Tag or DUAL AUTHENTICATION Swipe Tag then Pin Code
- Adjustable Relay Time from 0-99s or Latching ON/OFF
- Doorbell Contacts to connect to your doorbell system
- Both NO and NC Circuits
- Suits most automatic gates
- Suits most electric strikers
Specifications
| Working Voltage | 12-24V DC |
| Card Reading Distance | 1~3CM |
| Working Temperature | -40°~60°C |
| Load Output | Up to 3A |
| Standby Current | 70mA 12V, 30mA 24V |
| Capacity | 2000 Users |
| Working Humidity | 10-90% |
| Relay Time | 0~99s |
APC Wireless Push Button Switch with Isolation Switch
Please note: This switch is compatible with the APC brand of gate opening systems. If used with any other brand, the operation of the switch cannot be guaranteed under warranty.
This wireless APC single push button switch with isolation key is a stand-alone unit powered by a durable 12V internal battery.
This switch is wireless and DOES NOT require any wiring or external power to operate any of the APC automatic gate openers.
The isolation key switch is used to turn ON and OFF the operation of the push button switch.
Example: The user can switch the key switch OFF using the supplied key to de-activate the usage of the push button switch or switch ON to allow visitors access to the property.
The Pushbutton is highly weather-resistant, neat in appearance and consists of a rubber seal casing at the back of the switch to further protect from weather and to accommodate installation on uneven surfaces.
Usage:
- Automatic Gates
- Automatic Garage Doors
- Automatic Shutters
- Electric Locks or Strikers
- Industrial Roller Doors
Please note: The wireless switch can be used to operate the above devices when paired with an APC receiver which can be found in our store.
Compatible Equipment:
- Swing Gate Systems:
- APC-CB-12
- APC-CB12-4CH
- APC-CBSW-12 (ALL)
- APC-CB24-4CH
- APC-CBSW-24 (ALL)
Sliding Gate Systems:
- APC-CBSG12-4CH
- APC-SGH-12
- APC-SGX-12
- APC-CBSG-12 (ALL)
- APC-SGH-24
- APC-SGX-24
- APC-CBSG-24 (ALL)
Boom Gate Systems:
Remote Receivers:
See the videos below for pairing examples to several APC Automation Systems equipment:
- Single Swing Gate System Pairing Procedure
- Sliding Gate System Pairing Procedure
Specifications:
- Switch Type: Momentary
- Wireless Frequency: 433.92Mhz
- Key switch Type: Latching ON or OFF
- Switch(s) Status: Normally Open (NO)
- Battery: 12V DC
- Expected Battery Life: 2-3 Years
- Material: ABS Plastic
65mm Rubber Gate Stop
The supplied 65mm rubber gate stop with steel base is used to for the gate alignment and tension whilst they are in the closed position, it also allows the gates to be mounted up to 50mm off the ground.
Being that the minimum vehichle height from the ground is 100mm it will not interfere with the vehicle. In the case that the vehichle was lower than the typical minimum the stopper would not cause any damage as it is constructed from solid rubber but retains its general strength from the steel plate used at the bottom side contacting the driveway.
