APC Automatic Electric Single Swing Gate Opener System with Wi-Fi Controller. Electric Automatic Motorized Driveway Gate Automation for Swing Gates

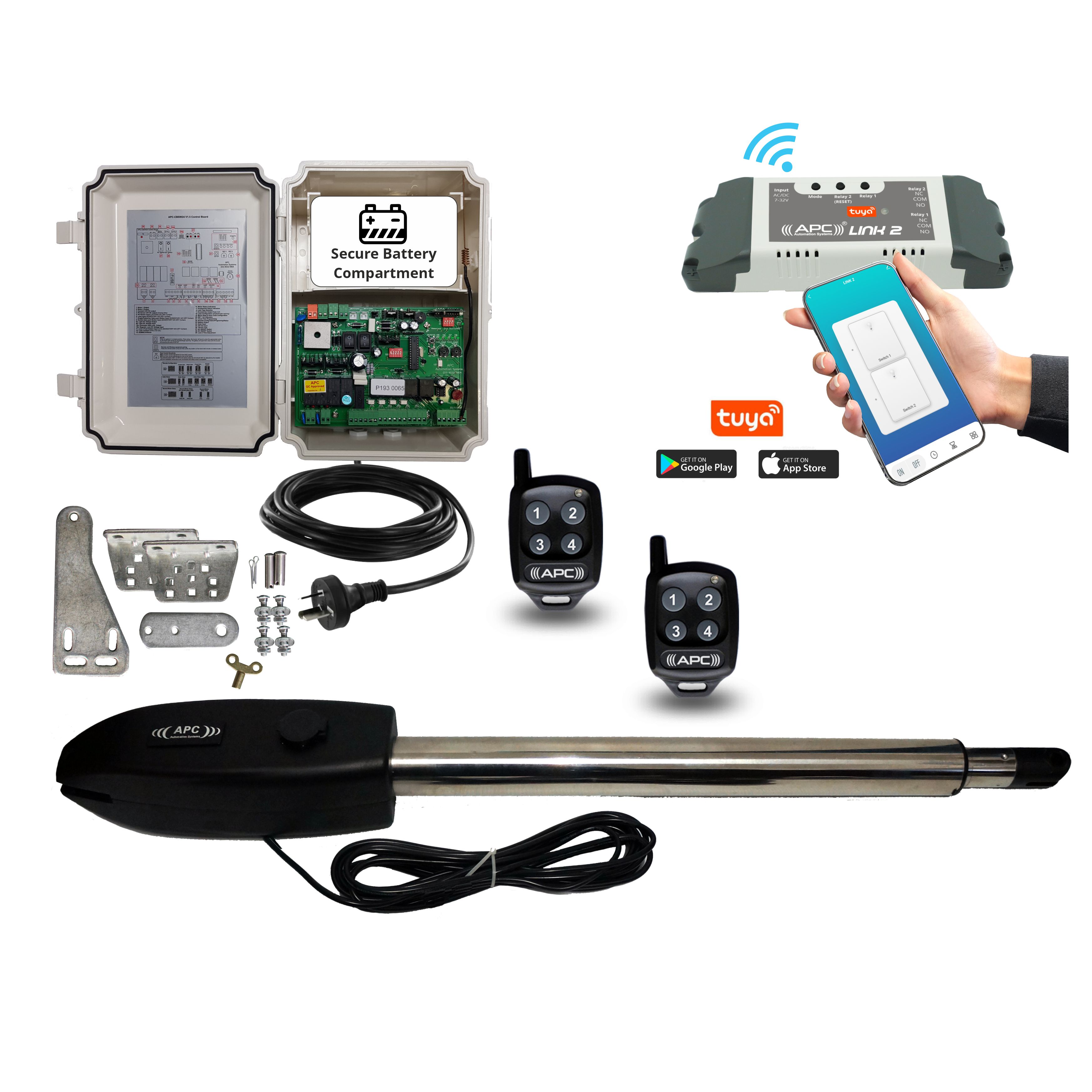

Gate Opener Kit Includes

• APC-T575L Actuator Kit Gate Automation System (QTY: 1)
• APC Weatherproof Control Box with 1.2m Power Cord (Ready to Plug In) (QTY: 1)
• APC Link 2 WiFi Switch Controller(QTY: 1)
• APC Four Button Keyring Remote (QTY: 2)

Product Information

Heavy Duty Slimline Stainless Steel Telescopic Linear Actuator

Heavy Duty 24V Motor with powerful and quiet operation comprised of a cast alloy rear housing and a stainless steel piston for the ultimate compact design and neat appearance Easy to use manual override using the supplied butterfly key in a emergency situation. The system can handle light and heavy gates up to 250kg maximum weight or up to 3m maximum length.

Emergency Clutch Override

Easy manual override in case of an emergency using the supplied butterfly key, slot in and turn clockwise to operate the gates manually.

All Metal Gears

Powerful and whisper quiet 24V motor and all metal gears

Specifications

Weatherproof Control Box

The CBSW24 series smart control panel is an easy to connect, simple to setup and feature rich control box vast amount of features as listed below:

Fully weatherproof with a seal
Pre Connected Weatherproof Glands for Wiring Connections
Hinged door with a padlock slot for added security
Pre-Wired and ready to plug into a regular 10A power point

System Features

Automatic Setup Feature to learn the Ramp Up and Slow Down points of the gate
Automatic Feature Learning will learn all features of the remote with a simple pairing process
Ultra High Security Rolling Code remote system allows for the highest form of security for entry to your property
Adjustable Automatic Close time up to 3 minutes

Safety Features

Adjustable Over current adjustments
Safety Sensor connection input
Automatic Courtesy Light Output

Special Features

Party mode: The automatic closing can be cancelled using button 3 on the remote control buttons when expecting a visitor to arrive, reversing a trailer and numerous other uses.
Service Gate Function (12V 250mA max.). Using the second lock output will allow the user to power and control a second electric striker installed on a pedestrian access gate the second lock is powered from the control panel and controlled using button 4 on the remote. APC Wired and wireless Accessories can also be use to control the Lock 2 function.

Accessories Compatibility

Constant 24V DC Accessories Output
Switched 24V DC Output for closing direction (used for safety devices to conserve power, powered on when required)
Open/Stop/Close Inputs for Gate Operation
Loop Detector Connection Input for an Open Only Toggle along with a return to open if closing
Smart Opening Closing LED indicators: Green LED on during opening and Red LED on during the closing
Automatic Electric Magnetic Lock Output

Controlling Options

Any or all of the following may be connected to operate the gate

Remote controls
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)

Battery Back Up (Optional)

The back up battery system will allow for continued use of the gate system for up to three days of regular use and will automatically recharge upon power restoration. Whilst the system is powered it will continue to float charge to keep the batteries topped up ready for use.
