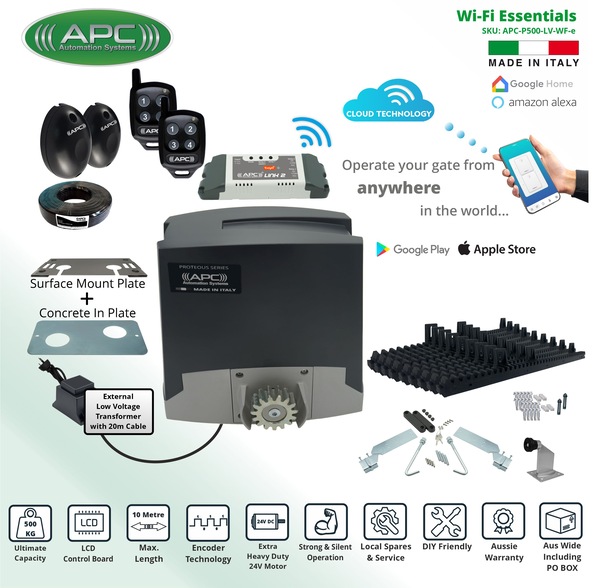

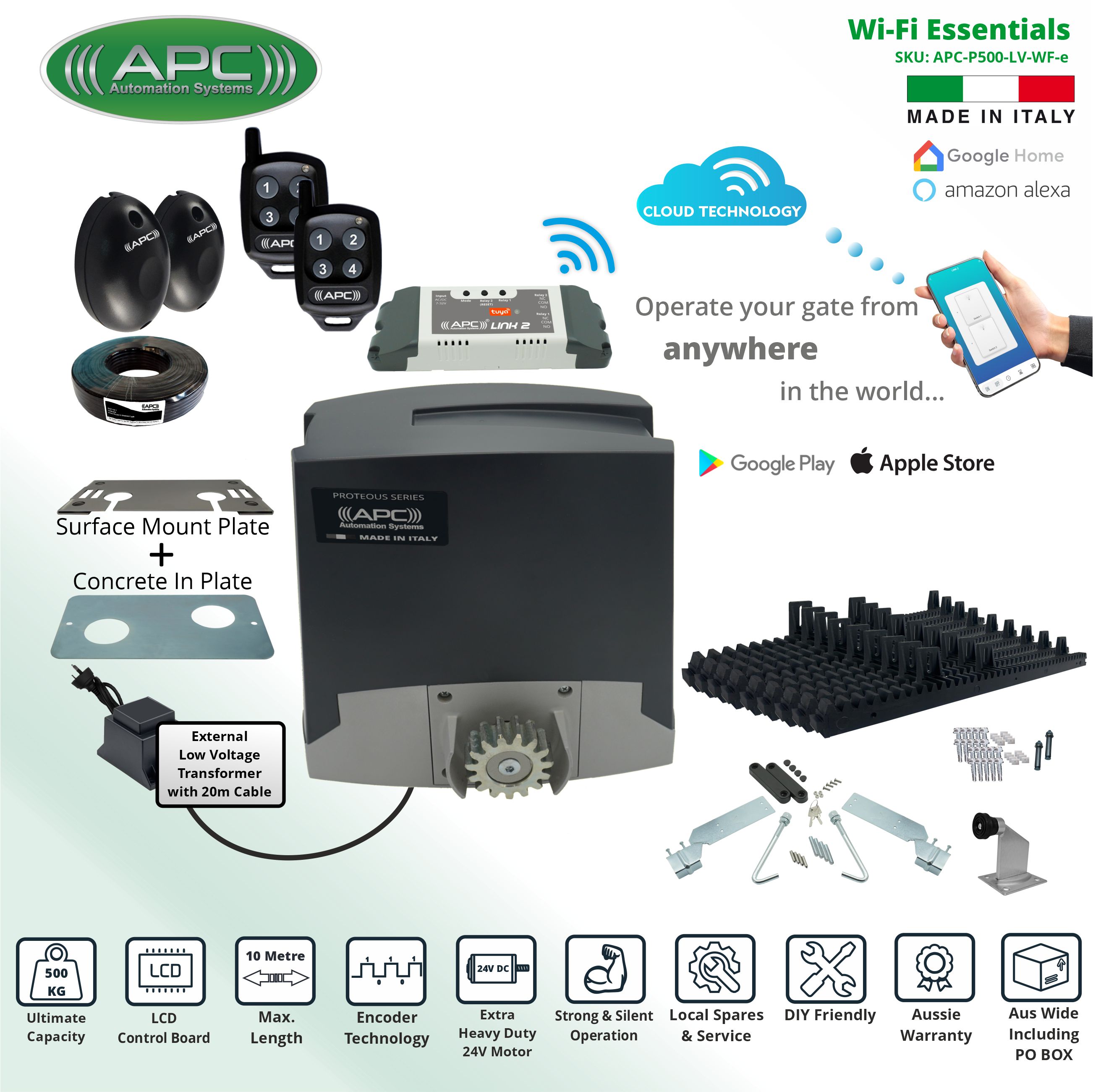

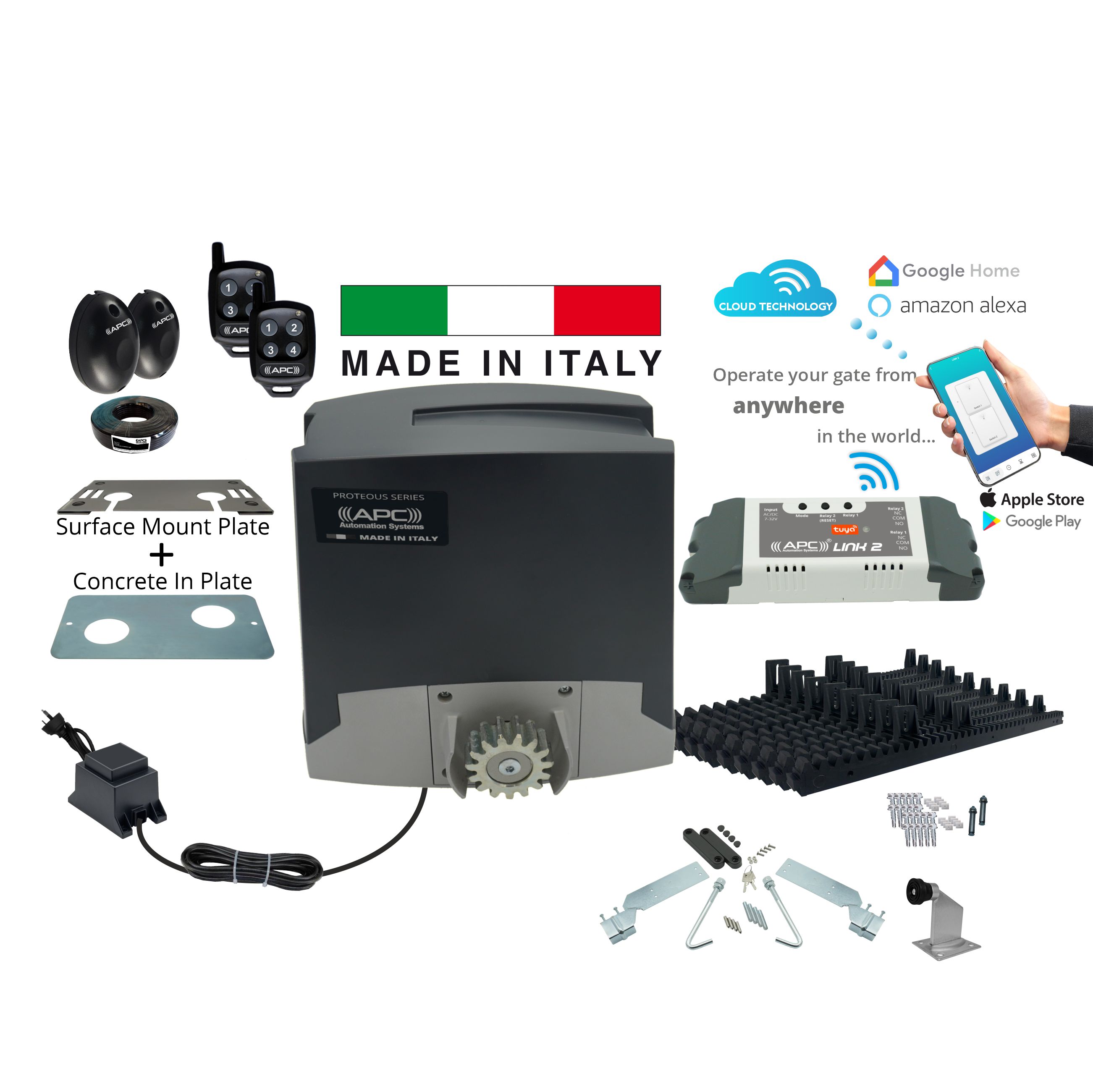

Gate Opener Kit Includes
- APC Proteous 500 FEATURE RICH Sliding Gate System (QTY: 1)
- APC Four Button Keyring Remote (QTY: 2)
- V4 520mm Nylon Rack (QTY: 8)
- Weatherproof External 24V Transformer with 20m Low Voltage Cable (QTY: 1)
- 115mm High Bolt Down Galvanized Gate Stop (QTY: 1)
- APC Link 2 WiFi Switch - Wifi Remote Smart Switch Gate Garage Door Openers Single Relay IOS and Android APP Control(QTY: 1)
- 115mm High Bolt Down Galvanized Gate Stop (QTY: 1)
- Concrete In Plate (QTY: 1)
- Surface Mount Plate (QTY: 1)
- Installation hardware
- Bag of bolts and screws set
Product Information
Heavy Duty Feature Rich 24V Italian Sliding Gate Motor
At a glance
The Proteous 500 boasts a cutting edge and rich feature set of full programmability using the onboard intuitive LCD interface suitable for the novice user with simple setups all the way to 100% commercial sites with its advance features and its high duty cycle system There is no function or feature that this system cannot perform. See the full details below.
Capacity
90% Duty Cycle (Can operate for up to 54 Minutes of every 60 minutes)
Full Feature MODERN Programmability by LCD Display (No DIP Switches or Dials)
500KG Capacity (1/2 a Tonne)
Ultra long 10 metre gate capacity
Only 150mm Narrow Depth
Everything and more as standard..
Automatic learning of gate travel limits and automatic introduction of soft start and soft stop points
Configurable pedestrian operation travel amount which can be operated by remote, keypad, button, APP control (module available) and induction loop
Fast and Slow Speeds are adjustable
Simple ONE PRESS full feature remote Ultra High Security Rolling Code learning system (and service free remote learning options)
Ultimate Auto close settings adjustable from 5 seconds to 20 Minutes
Party Mode System to keep gates opened when configured for use with the automatic close feature
Underside cable entry with grommets
Simple to setup left and right side magnet system
Pre-Wired and ready to plug into a regular 10A power point or can be hardwired if preferred
All installation connections are low voltage (except in the case of high voltage driveway lights(low voltage can be used))
Strong STEEL Pinion Gear
Solid Alloy Housing with FOUR POINT tilt leveling adjustment system (30mm in any or all direction)
Special Features
Energy Saving Mode (5mA Standby Current)
Optional battery backup system
Standalone low voltage/high voltage driveway light control by remote (completely separate to the safety light)
Soft Start/Soft Stop (Ramping feature) with adjustable cut in points
Supports Bi-Parting Sliding Gates using only one set of accessories using the APC SYNCRO module system
Induction Loop Compatible for auto opening or as a safety device
Supports programmable timers
Safety Features
Adjustable Over current adjustments
Built in Encoder with adjustable sensitivity
Safety Sensor connection input configurable for open and/or closing
Supports Safety Edges
Automatic Courtesy Light Output (Blinking or Static illumination) with adjustable pre-operating courtesy times
Accessories Compatibility and Controlling Options
Constant DC Accessories Output
Open/Stop/Close Inputs for Full Gate Operation and Pedestrian Gate Operation
Remote controls
Induction Loops
Weekly Timers
Entry and Exit push button with isolation key switches (Wired and Wireless Options Available)
Keypads (Wired and Wireless Options Available)
Exit/entry sensors
Intercom system with dry contact output
Automatic switching timer
WiFi Control System (App Based Control)
GSM Control Systems (Mobile Call/SMS based Control)
External Transformer (Extendable up to 80 metres cable distance)
24V External weatherproof designed to be used in a low voltage cabling application of up to 80 meters, supplied with a pre-connected 20 meter cable this is a perfect solution when running mains power to the gate is not a viable option due to costs, difficulty or just simply to DIY.
Specifications
| Transformer | 24V AC |
| Rectification | In Housing Rectifier |
| Motor Output Voltage | 24v DC |
| Max Operating Power | 300 Watts |
| Maximum Gate Length | 10 Metres |
| Maximum Gate Weight | 500 KG |
| Speed | 28 cm/s |
| Working temperature | -20° - 50° |
| RF | APC Rolling code 433.92mhz |
| Motor Duty Cycle | 90% |
| Auxiliary Inputs | 0V Momentary Pulse |
| Accessories Voltage | 34V DC |
| Operator Inbuilt Safety | Over current + Encoder Sensitivity |
