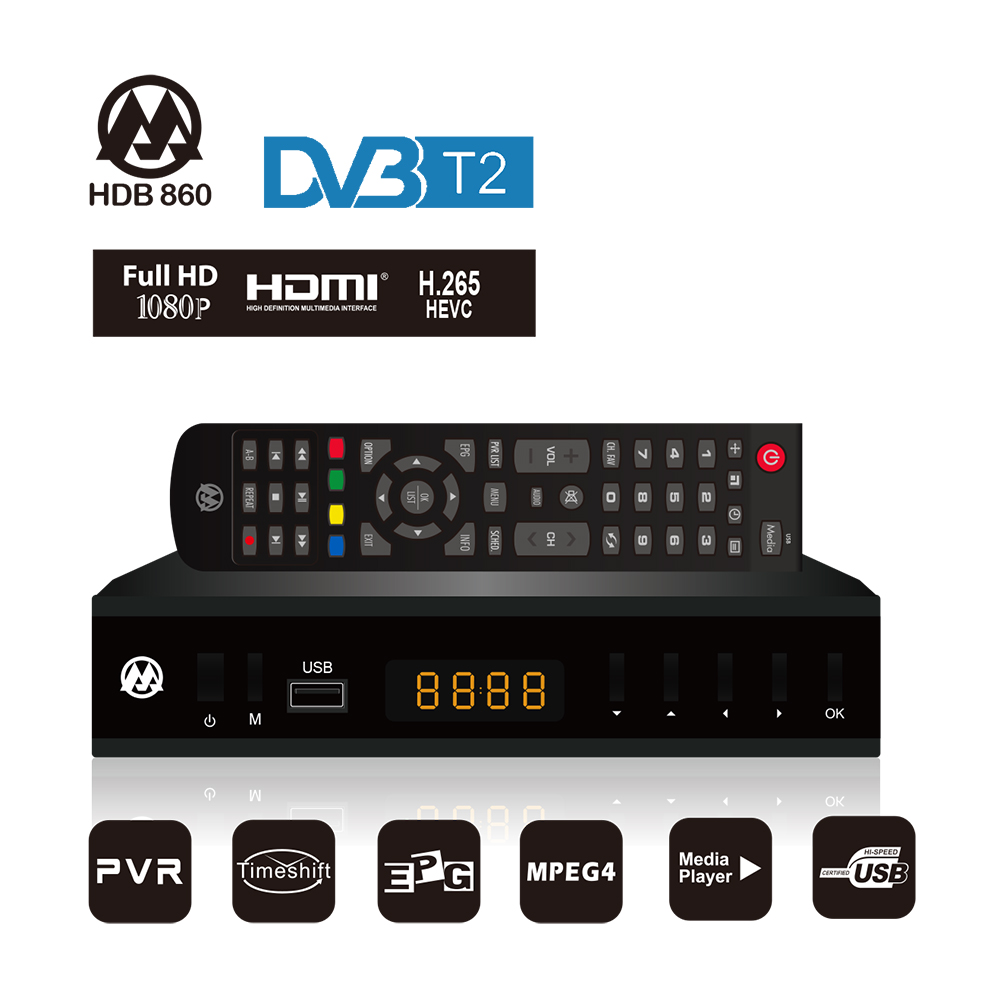

AOA HDB860 FHD DVB-T2 HDMI H.265 IPTV USB PVR Record Media Play Set Top Box

Full HD H.265 Digital Set Top Box with USB Recording

AOA HDB860

This is the best set-top box on the market for under $50. It features the latest decoder chip with DVB-T2 H.265 decoding capability and is compliant with the next generation of Australian digital TV standards.

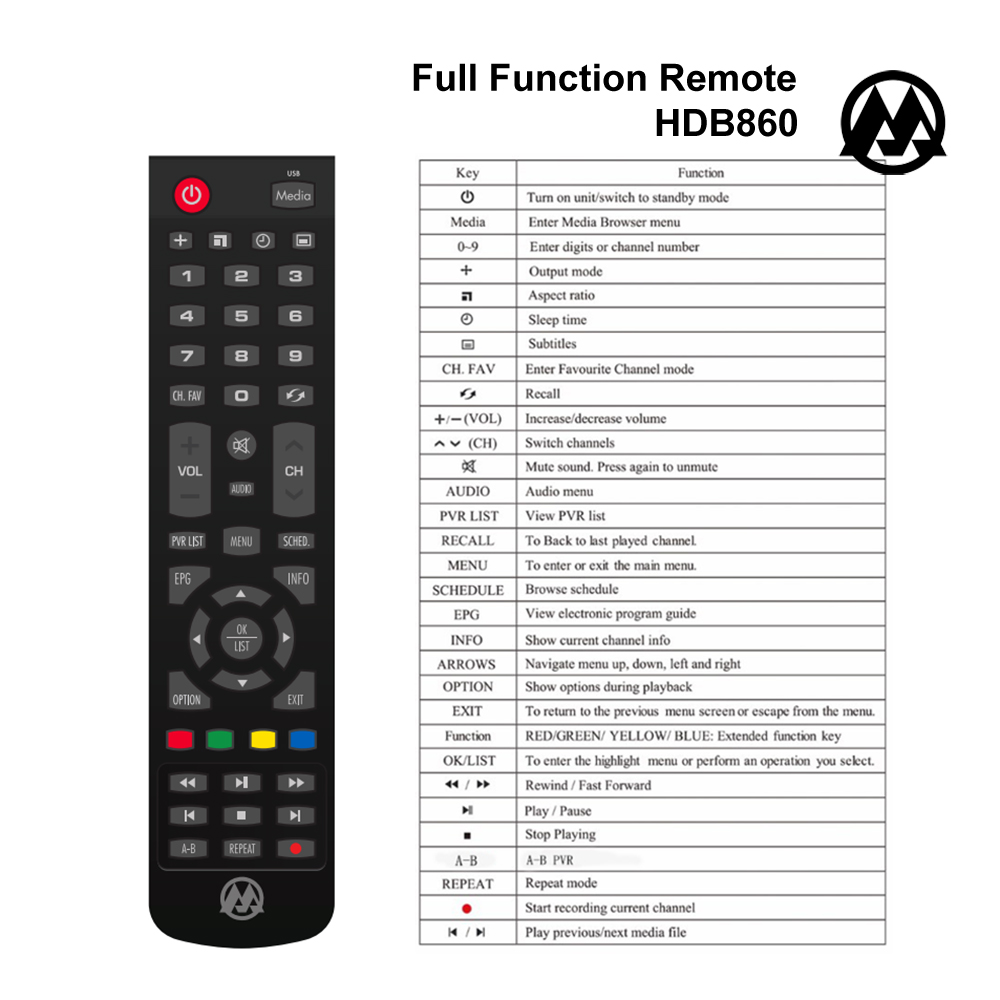

Unlike other similar products, this product offers a full size, fully functional set-top box remote control. It is simple and easy to use. The unique Record LIST and Schedule LIST buttons allow quick and efficient use of the PVR functions.

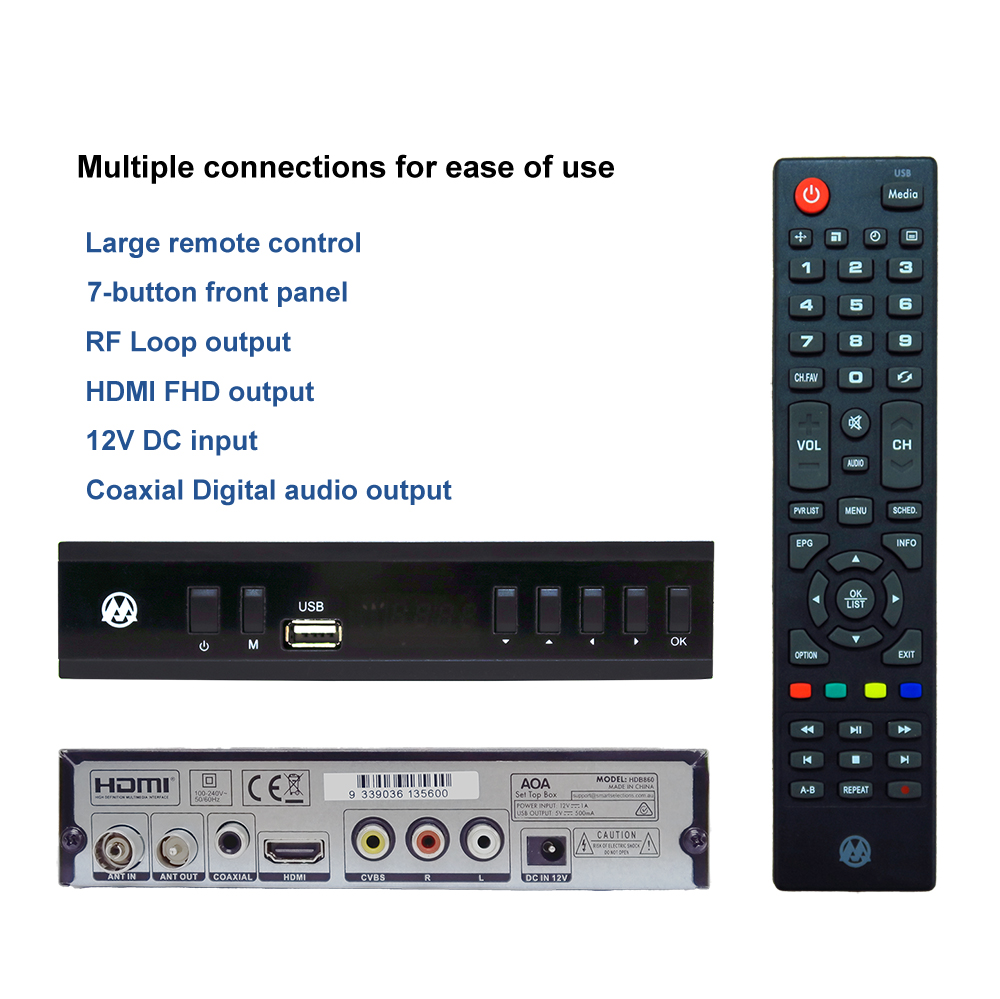

In addition to the HDMI output port which provides a 1080P full HD picture, there is also an AV port which can support the connection of CRT TVs, plasma TVs, LCD (LED) TVs, MONITOR and projectors. In addition to the analogue output for audio, there is a digital coaxial output with built-in Dolby decoding. Let you enjoy the full benefits and beauty of digital TV.

You can use it to watch TV, record programmes, and play movies and videos on USB. Don't buy the expensive one, just the right one.

Specification

• DTV
  • Terrestrial Receiver Standard: DVB-T/T2
  • Frequency Range: 170-230MHz, 470-860MHz
  • Band width: 7/8MHz
  • Australia DTV Standard: AS/NZS 4399.1-2010
• Connections
  • TV/CATV RF: IEC Female 75-ohm x 1
  • USB: USB2.0x 1
  • Wifi Dongle: RT5370 or MT7601 not included (This product can play Internet video, operating instructions will be sent with the product)
  • HDMI out: 1.4 x 1
  • Digital Audio out: Coaxial RCA1 x 1, PCM/Bitstream
  • AV out: RCA3 x 1
  • RF Loop out: IEC male x 1
• Decoder
  • Video System: MPEG-1/2/4, H.264, H.265, HEVC, VC-1
  • Audio System: MPEGI layer1/2, MPEGII Layer II, Dolby, AAC LC, HE-AAC v1/V2, MP3
  • Multi-Media System: ts, mpg, mp4, avi, mkv, ogg, jpeg
  • Basic Function: Display Resolution/Aspect ratio/EPG/Subtitle/LCN
  • Extra Function: Media Play/PVR/Time-Shifting
• USB System
  • Disk Format: FAT16/FAT32
  • Play back: Play, Pause, Stop
  • Function: Fast Forward/Fast Backward 2/4/8/16/32
• Power
  • Power input: AC 110-240V 50Hz, DC 12V/1A
  • Standby: <1W
  • Energy Saving: AS/NZS 62087.2.1:2008+A1+A2 and 62087.1:2010
• Measurements
  • Gross Weight: 0.3kg
  • Net Weight: 0.48kg
  • Dimensions: 168x 95 x 36mm
  • Gift Box Dimensions: 215 x 150 x 50mm
• 2 year Warranty
