Tesla ADM65SC | 1 Phase 60Amp Kilowatt Hour Meter DIN Rail | Digital

This Kilowatt Hour Meter is used for private metering as it is not NMI-approved (billing applications)

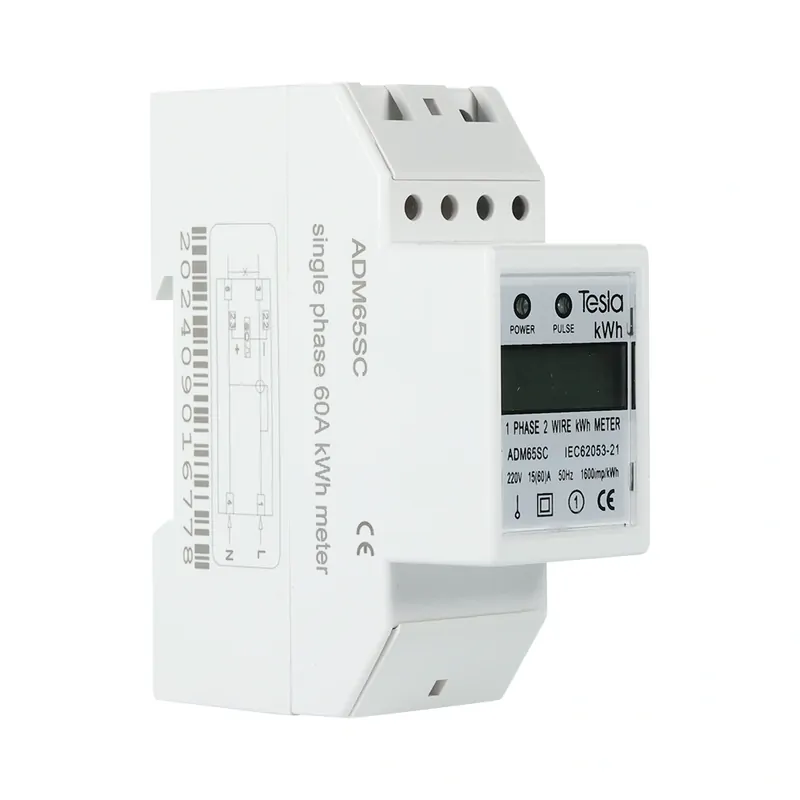

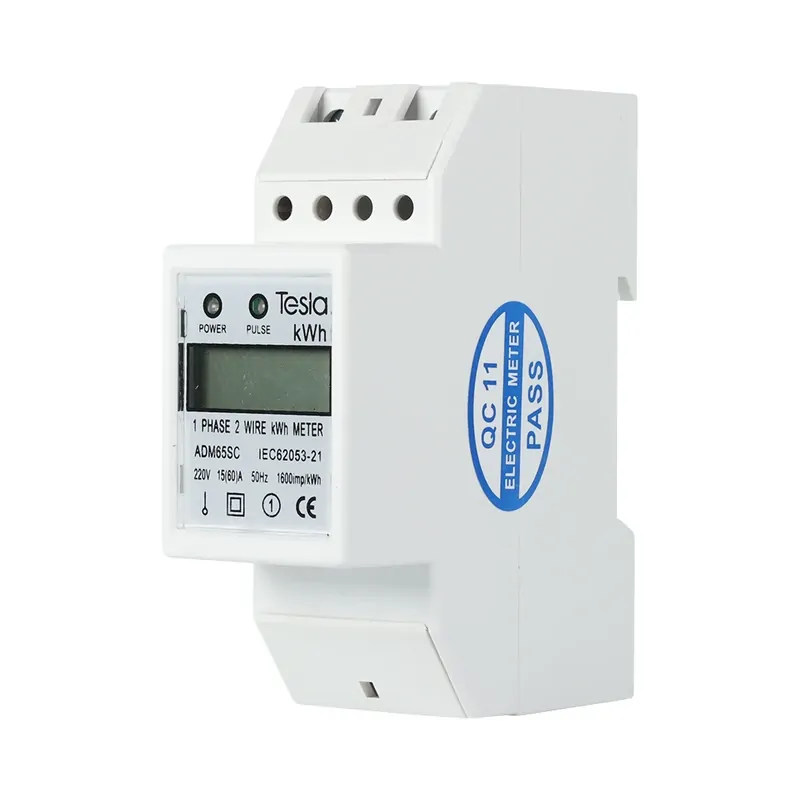

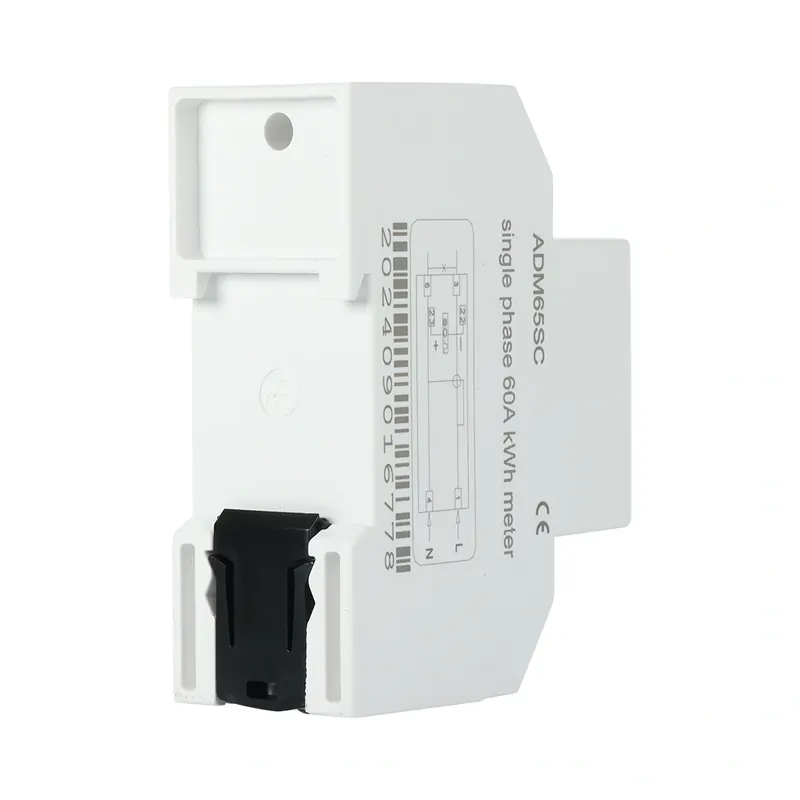

The Tesla ADM65SC is a compact and reliable single-phase kilowatt-hour meter designed for accurate energy monitoring. It features a digital backlit LCD for clear readings and supports DIN rail mounting for easy installation. With a maximum current capacity of 60A, it measures energy consumption in standard 120/230V AC circuits, making it suitable for various applications.

Built for durability, this meter has an IP53 rating for protection against dust and moisture and retains data for up to 20 years without power. It operates within a wide voltage range of 84-156V AC and withstands up to 4kV AC voltage for one minute, ensuring reliability in demanding environments. With a pulse output rate of 500 pulses per kWh, it provides precise energy tracking for billing or monitoring purposes.

Key Features:

60A digital kWh meter designed for single-phase 120/230V AC circuits.

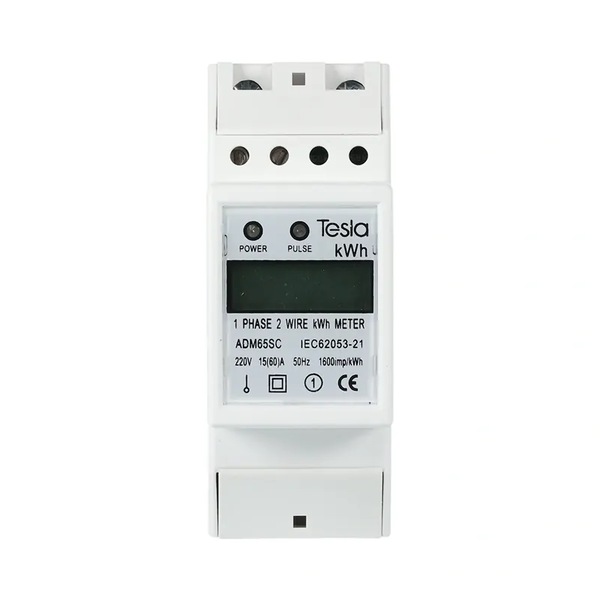

Backlit LCD display with a 7+1 digit screen for clear readings in any lighting condition.

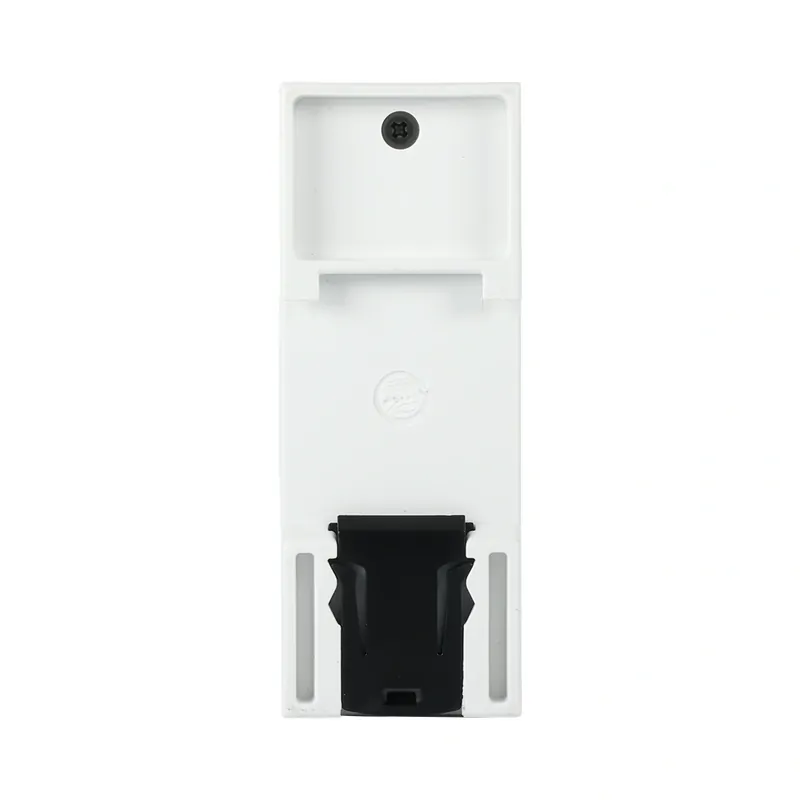

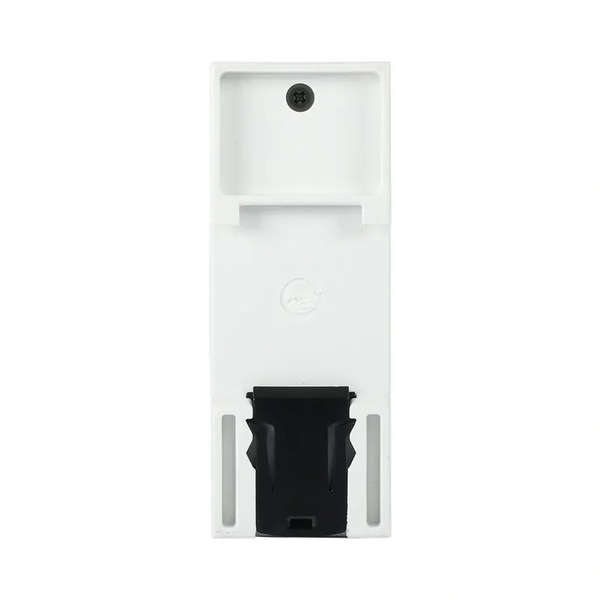

DIN rail mounting allows for quick and secure installation.
IP53 rated protection against dust and moisture for enhanced durability.
20-year data retention ensures stored energy consumption data even during power loss.
High accuracy & pulse output with 500 impulses per kWh for precise energy tracking.

ADM65SC FAQ

Q: What voltage range does this meter support?
A: It operates on 120/230V AC with an operational range of 84-156V AC.

Q: Can this meter be installed on a DIN rail?
A: Yes, it is designed for DIN rail mounting for quick and secure installation.

Q: Does this meter retain data if power is lost?
A: Yes, it has a 20-year data retention capability to store energy usage information.

Specifications:

Specification	Details
Nominal Voltage	120/230V AC
Operational Voltage	84-156V AC
Operating Frequency Range	50/60Hz ± 10%
AC Voltage Withstand	4kV for 1 minute
Basic Current	5A/10A/10A/20A
Maximum Current	60A/60A/63A/100A
Operational Current Range	0.04A-60A / 0.08A-100A
Overcurrent Withstand	1800A / 3000A for 0.01s
Internal Power Consumption	≤2W/10A
Test Output Flash Rate	500 impulses per kWh
Pulse Output Rate	500 pulses per kWh
Backlit LCD Display	7+1 digits
Data Retention	20 years

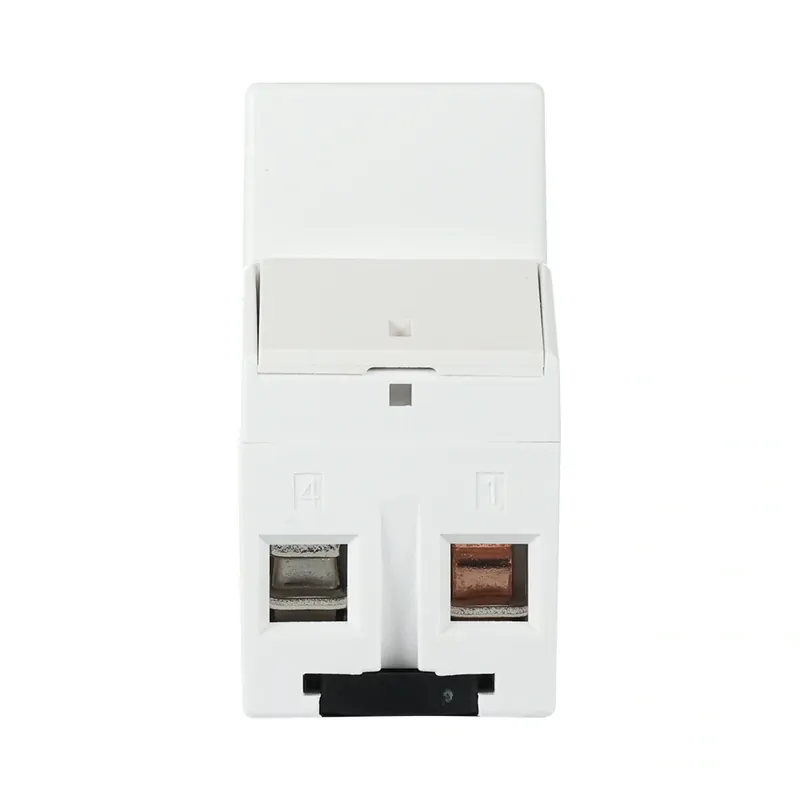

Maximum Cable Capacity	25mm²
Operating Temperature	-10°C ~ 50°C
IP Rating	IP53
Insulation Protection Class	Class II

Warranty starts from Invoice Date

Domestic Use: 1 Year
Commercial Use: 1 Year
Warranty Method: Return to Sparky Direct

GTIN: 9337376005201
