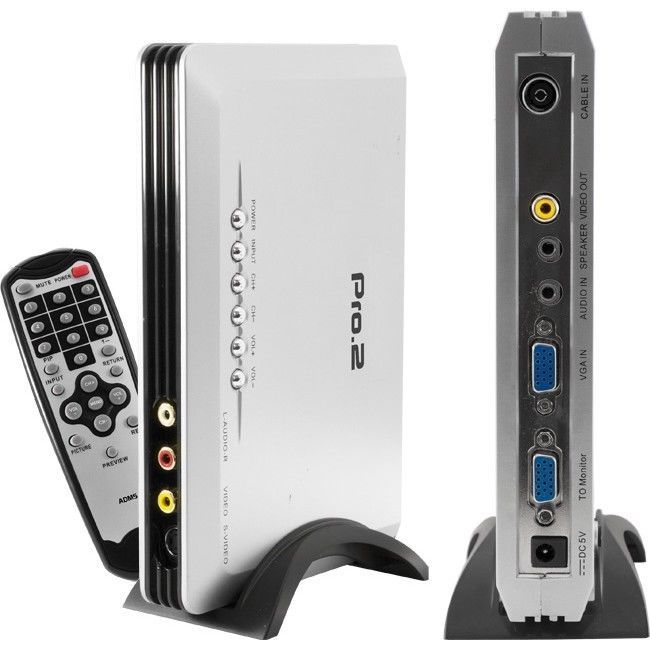

The ADM5 offers the perfect solution for all your LCD, PDP and projector to be a multi-media display. It also lets you turn any display into a high definition full screen TV and multi-media display centre. The ADM5 offers multiple video input/output connections compatible with modern equipment like DVD players, digital cameras, game consoles and more...
Features:
1920x1200, 1920x1080 Support
PIP (Picture in Picture)
POP (Picture on Picture)
Supply High Resolution
Compatible with monitors, LCD and projectors with resolutions up to 1920x1200 for 24bit RGB true color.
System Support
Supports the following TV systems: NTSC, PAL-I, PAL-D/K, PAL-B/G, SECAM-L, SECAM-D/K and SECAM B/G
Great TV Video Technology
Supports de-interlace and progressive scan
Superior Noise Reduction
Video Entertainment on your PC
Supports: RF, S-Video, Composite RCA, VGA
Easy to use remote control
Auto Scanning
All channels scan of TV broadcast ad cable TV channels. Also supports full channels with fine tuning function
Sleep timer
Back Mounting
Specifications:
Frequency 55.25~801.25MHz(NTSC) / 48.25-855.25MHz(PAL)
Connector
Input 75 ohm Coaxial TV antenna/cable
S-Video
One composite video, RCA left/right for Audio in
3.5mm Audio (from sound card)
15-pin H-D female connector (from VGA card)
Output Video Output
3.5mm Audio Jack(to speaker)
15-pin H-D female connector (from VGA card)
Power DC-In Jack
Controls
Physical POWER, INPUT, CH+, CH-, VOL+, VOL-
OSD RE-SET, TINT, Brightness
Remote Control 24-Key IR Remote Control
Video Output Mode
Resolution@refresh rate 800 x 600 @60Hz
1024 x 768 @ 60Hz / 75Hz
1280 x 720 @ 60Hz / 75Hz
1280 x 1024 @ 60Hz / 75Hz
1440 x 900 @ 60Hz / 75Hz
1600 x 900 @ 60Hz
1680 x 1050 @ 60Hz
1920 x 1080 @ 60Hz
1920 x 1200@ 60Hz
Power
Input 100-120 VAC, 60Hz 220-240 VAC, 50Hz
Output 5 Vdc / 1A(U.L, CE)
Type Power Adapter
Regulations FCC Class B, CE
Accessories Main unit, plastic stand, remote control
AC/DC adapter, VGA cable, audio cable
AAAx2 batteries, Manual
