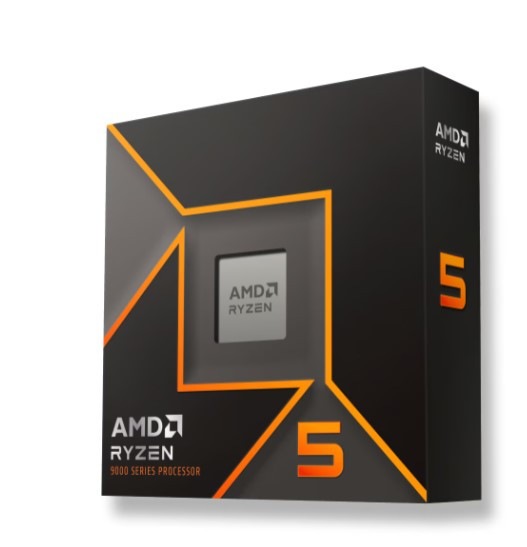

AMD Ryzen 5 9600X 6Cores/12Threads, 65 watts, Max Boost Clock 5.4 GHz, PCIE 5.0, 32MB Cache, Radeon(TM) Graphics, 2200 MHz Frequency
General Specifications
Form Factor: Desktops , Boxed Processor
Market Segment: Enthusiast Desktop
AMD PRO Technologies: No
Former Codename: Granite Ridge AM5
Architecture: Zen 5
# of CPU Cores: 6
Multithreading (SMT): Yes
# of Threads: 12
Max. Boost Clock: Up to 5.4 GHz
Base Clock: 3.9 GHz
L1 Cache: 384 KB
L2 Cache: 6 MB
L3 Cache: 32 MB
Default TDP: 65W
Processor Technology for CPU Cores: TSMC 4nm FinFET
Processor Technology for I/O Die: TSMC 6nm FinFET
Package Die Count: 2
CPU Socket: AM5
Supporting Chipsets; A620 , X670E , X670 , B650E , B650 , X870E , X870
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions:
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB): Not Included
Recommended Cooler: Premium air cooler recommended for optimal performance
*OS Support:
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 3.2 Gen 2 (10Gbps) Ports: 4
Native USB 2.0 (480Mbps) Ports: 1
PCI Express(R) Version: PCIe(R) 5.0
Native PCIe(R) Lanes (Total/Usable): 28 , 24
Additional Usable PCIe Lanes from Motherboard
X870E 8x Gen4
X870 4x Gen4
X670E 12x Gen4
X670 12x Gen4
B650E 8x Gen4
B650 8x Gen4
NVMe Support: Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type: DDR5
Memory Channels: 2
Max. Memory: 192 GB
System Memory Subtype: UDIMM
Max Memory Speed
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
Graphics Model: AMD Radeon(TM) Graphics
Graphics Core Count: 2
Graphics Frequency: 2200 MHz
USB Type-C(R) DisplayPort(TM) Alternate Mode: Yes
Product ID Boxed: 100-100001405WOF
