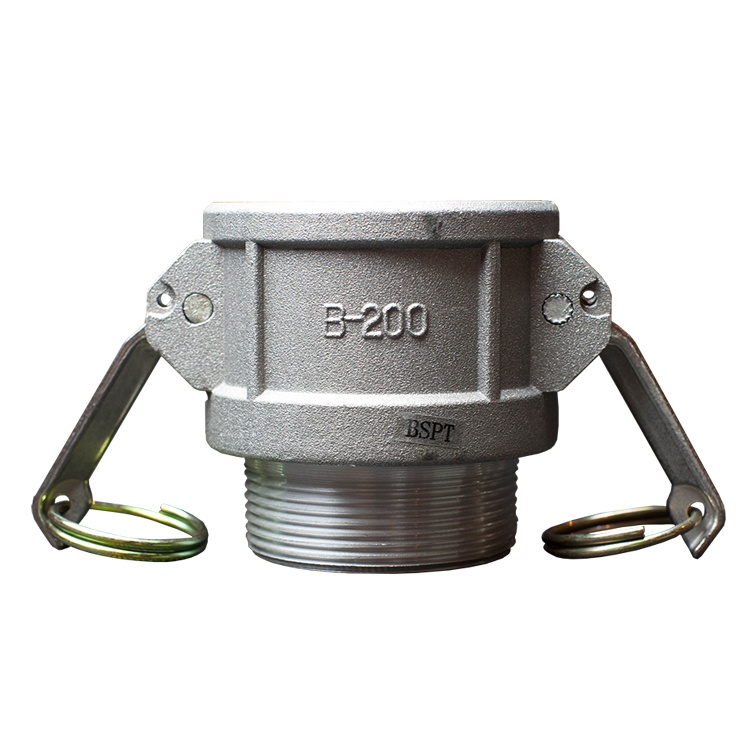

Aluminium Camlock Fitting Type B

Camlock fittings, also known as cam and groove couplings, are sturdy connectors that are used to join pipes or hoses. These connectors stand out for their ease of use. Camlock fittings, unlike many high-performance couplings, attach quickly and without the use of tools. This advantage stems from their distinct design, which aligns the external locking arms with the internal gasket for easy and quick sealing. A camlock fitting type b is one of several types of camlock fittings with a male thread that can be used to connect a pump or pipe system.

Key Features of Camlock Fittings Type B

  • The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The cam arms are then closed under normal hand pressure to complete the joint.
  • Manufactured to interchange with all product produced to Specs MIL A-A 59326 / MIL C-27487. (Size 1/2" (15mm) fittings are not covered by Mil Spec A-A 59326, this size is to manufactures specification only)
  • Reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials, oil, powder, cosmetics, foodstuffs, offshore, pumps, adhesives, dyes, pharmaceuticals, pellets, some hydrocarbon, chemicals and many more. Note: Not to be used for compressed air and steam application.
  • Standard Buna-N seal installed
  • Aluminium alloy material
CAMLOCK FITTINGS TYPES
TYPE DESCRIPTION
Type A Male Adaptor - Female BSP
Type B Female Coupler - Male BSP
Type C Female Coupler - Hose Tail
Type D Female Coupler - Female BSP
Type DC Dust Cap Female End Coupler
Type DP Dust Plug Male End Adaptor
Type E Male Adaptor - Hose Tail
Type F Male Adaptor - Male BSP

Camlock Fittings Type B Specifications Female Coupler x Male BSP - Aluminium
Part Number Coupling Size (In) Coupling Size (mm) A (mm) B (mm) E (mm) G (mm) Thread Type WEIGHT (kg)
6201.02.15 1/2" 13 14 48 32 53 BSPT 0.08
6201.02.20 3/4" 19 14 53 32 53 BSPT 0.10
6201.02.25 1" 25 24 62 40 60 BSPT 0.17
6201.02.32 1. 1/4" 32 28 66 48 78 BSPT 0.21
6201.02.40 1. 1/2" 38 35 71 49 85 BSPT 0.24
6201.02.50 2" 51 51 77 54 96 BSPT 0.28
6201.02.65 2. 1/2" 63 58 85 59 110 BSPT 0.44
6201.02.80 3" 76 72 92 60 127 BSPT 0.56
6201.02.94 4" 102 98 95 62 156 BSPT 0.99
6201.02.96 6" 152 150 102 62 240 BSPT 1.76
