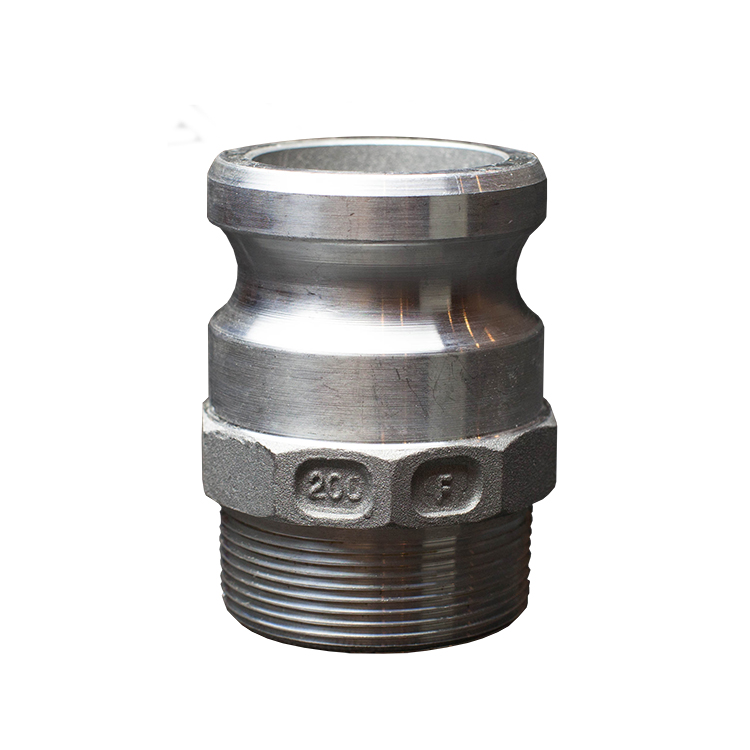

Aluminium Camlock Fitting Type F

Camlock fittings, also known as cam and groove couplings, are sturdy connectors that are used to join pipes or hoses. Aluminium camlocks are lightweight and corrosion-resistant, making them ideal for use in many industries, such as farm, civil and construction industry. A camlock fitting type F is one of several types of camlock fittings with a male thread and male adaptor that can be used to connect a pump or pipe system. These connectors stand out for their ease of use. Camlock fittings, unlike many high-performance couplings, attach quickly and without the use of tools.

Key Features of Camlock Fittings

  • The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The cam arms are then closed under normal hand pressure to complete the joint.
  • Manufactured to interchange with all product produced to Specs MIL A-A 59326 / MIL C-27487. (Size 1/2" (15mm) fittings are not covered by Mil Spec A-A 59326, this size is to manufactures specification only)
  • Reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials, oil, powder, cosmetics, foodstuffs, offshore, pumps, adhesives, dyes, pharmaceuticals, pellets, some hydrocarbon, chemicals and many more. Note: Not to be used for compressed air and steam application.
  • Standard Buna-N seal installed
  • Aluminium alloy material
CAMLOCK FITTINGS TYPES
TYPE DESCRIPTION
Type A Male Adaptor - Female BSP
Type B Female Coupler - Male BSP
Type C Female Coupler - Hose Tail
Type D Female Coupler - Female BSP
Type DC Dust Cap Female End Coupler
Type DP Dust Plug Male End Adaptor
Type E Male Adaptor - Hose Tail
Type F Male Adaptor - Male BSP

Type F Camlock - Male Adaptor X Male BSP - Aluminium
Part Number Coupling Size (In) Coupling Size (mm) A (mm) B (mm) C (mm) E (mm)? Thread Type WEIGHT (Kg)
6201.06.15 1/2" 13 13 60 32 39 BSPT 0.03
6201.06.20 3/4" 19 21 61 32 39 BSPT 0.06
6201.06.25 1" 25 24 71 40 48 BSPT 0.09
6201.06.32 1. 1/4" 32 28.5 81 48 56 BSPT 0.16
6201.06.40 1. 1/2" 38 36 79 56 61 BSPT 0.19
6201.06.50 2" 51 45 87 67 62 BSPT 0.26
6201.06.65 2. 1/2" 63 56.5 97 83 69 BSPT 0.44
6201.06.80 3" 76 73 100 96 74 BSPT 0.48
6201.06.94 4" 102 98 114 127 79 BSPT 0.96
6201.06.96 6" 152 150 118 175 77 BSPT 1.52
