Alloy A102ESC-ASF
PCI-e 100Base-FX Multimode NIC (SC) with ASF

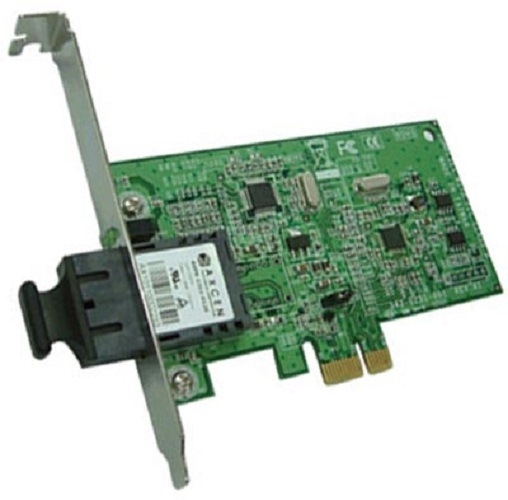

The A102ESC-ASF is a model from Alloy's A102E-ASF series of PCI-e 100Base-FX Network Adapters. The Adapter has an SC connector, and supports the ASF 2.0 standard, enabling complete remote management of an ASF 2.0 compliant computer.
The A102ESC-ASF is a 100Base-FX Network Adapter with an SC type port connector, which supports up to 2 kilometres range over multimode fibre optic cable. The card is installed in a PCI-e bus slot.
The A102ESC-ASF is a member of Alloy's new generation 102E-ASF Series of PCI-e bus 100Base-FX Network Adaptors. This series, which includes multimode and singlemode models, supports the latest edition of the Alert Standard Format - ASF V2.0. This standard enables comprehensive remote monitoring, management and control of computer systems in both OS-present and OS-absent environments, and significantly minimises on-site maintenance tasks.
102E-ASF Series Network Adapters are fully comply with the 802.3u and 100Base-FX standards, and provide up to 100Mbps connectivity to your existing or newly created Fast Ethernet fibre infrastructure - or 200Mbps in full duplex mode. With advanced functions such as VLAN Filtering, Multicast Frame Filtering and PXE (Preboot Execution Environment), RPL (Remote Program Load) and BOOTP (Bootstrap protocol) remote booting capabilities, the 102E-ASF Series offers an affordable solution for secure, high performance workstation fibre optic connectivity.
Features
PCI-Express x1 Interface
SC connector
2 kilometres maximum range over multimode fibre optic cable
IEEE 802.3x Full Duplex Flow Control
Multicast Frame filtering
Supports Asymmetric/Symmetric Flow Control
802.1q VLAN Tagging
RoHS compliance
PXE Remote boot support
ASF 2.0 support for remote monitoring, management and control of computer systems
