HANDSFREE INTERCOM MASTER AIPHONE

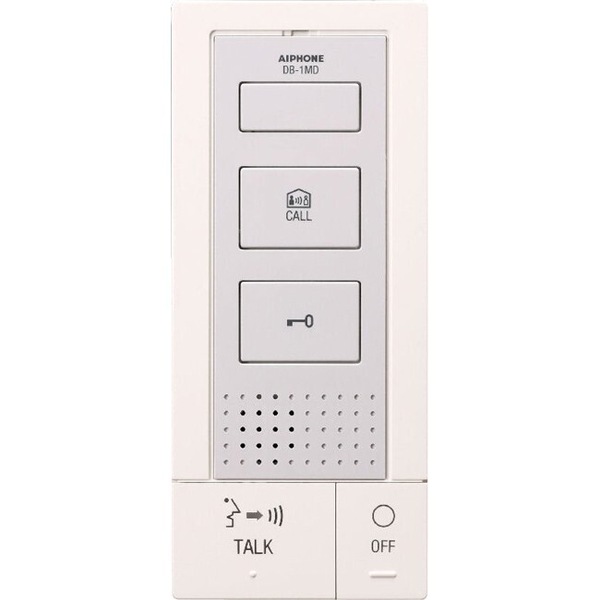

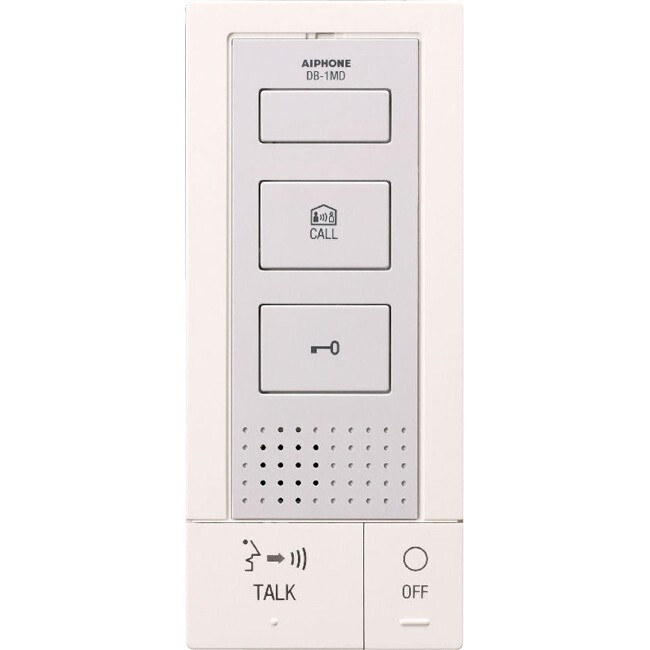

The DB-1MD is the master station for the DB SERIES
The Aiphone DB series intercom is designed for small apartment blocks or single residences. Up to five hands free stations can be installed in each residence.
The Aiphone DB system requires a 15 volt AC power supply and is designed for use with AC operated strikes.
An Aiphone IER2 call extension unit is also available which will ring when a call is made from the door station
Simplified Two-Wire Door Entry Kit when the DA-1DS door station is added ( DBS-1A kit )
Aiphone's DB series residentialaudio intercom provides audio comminication from a door station to up to 5 internal handsfree stations. The DB Series features simple two wire cabling, AC operationby inexpensive plug pack and AC door release operation. The DB series is available either in boxed sets containinga single door station and room station or as individual components for 2 or 4 call door station and individual handsets.>
NOTE: When expanded to 5 internal units system requires 3x power supplies
FEATURES:
Also available are two button and 4 button door stations suitable for small apartment blocks. In addition the DB Series features an option button that can be used for either a second door release function or to trigger an entrance light etc. Single call door stations available in silver only whereas 2 and 4 call door stations available in grey and silver.
SPECIFICATIONS:
Power Source: AC 15V, supplied from Power Supply
Power Supply: Requires 15 V AC 1100mA power supply. (1ps per 2 units)
Calling: Electronic tone.
Communication
Approx. 1 min.
AUTOMATIC (Hands-Free); to activate, momenarily press TALK button.
MANUAL (Press-to-talk/Release-to-listen); to activate, press TALK button for 1 sec. or more.
Weight
DB-1MD: approximately 370 g.
DB -1SD: approximately 370 g.
Wiring
2 wires, polarised from door to DB-1MD.
6 wires, polarised DB-1MD - DB-1SD.
Distance
From door to master station (Wire Diameter: 0.6 mm - 110 m ) ( 0.8 mm- 200 m ) ( 1.0 mm - 310 m )
Master station to Power supply (Wire Diameter: 0.6 mm - 55m ) ( 0.8 mm - 100 m ) ( 1.0 mm - 155 m )
From master to furthest sub (Wire Diameter: 0.6 mm / 0.8 mm / 1.0 mm - 100 m )
DB-1SD sub master station
DA-1DS door Station ( for single dwelling )
DA-2DS / DA-4DS door stations ( for multi tennant dwellings )
IER-2 Call extension
AC-10S Access control Key pad
EL-12S door lock
AC1615 power supply
This item comes with a 12 months warranty
