Acquasaver 25mm 1 Inch Mains Diversion Valve

AcquaSaver is an automatic hydraulically operated mains to rainwater changeover valve. Ideal for rainwater harvesting which switches from mains to tank whenever tank water is available and automatically defaults to mains in the event of a power or pump failure.

The 1" (25mm) AcquaSaver comes with dual 1" outlets which gives the consumers flexibility to use one or both outlets, which makes AcquaSaver unique and ideal for domestic and commercial applications.

The 1" (25mm) AcquaSaver comes with a 3 Year Manufacturers Warranty and Limited Lifetime Warranty on all brass components.

Specifications:

• Max mains pressure 1000 Kpa
• Min pump Pressure 350 Kpa
• Max flow rate 100 LPM
• Rainwater inlet 1" BSP F (25mm)
• Mains water inlet 1" BSP F (25mm)
• Outlets 1" BSP F (25mm)
• Weight 1.6 Kg
• Complies to AS/NZS 3500.1 when installed by a licensed plumber
• Certified to Watermark Standard WMTS477

Product Features:

• Easy to Install
• Full flow 1 outlets
• Solid Brass - Weather proof - Built to last!
• No regular maintenance
• No electronic components
• No electrical consumption
• Suitable for any pressure pump with sufficient head pressure
• No float required on auto restarting pumps
• Can be mounted in any position and any distance from the pump
• Can be mounted directly onto the pump
• Built-in dual check valve for backflow prevention
• Hydraulically operated
• Patented design
• 3 Year Manufacturers Warranty
• Limited Lifetime Warranty on all brass components

Materials:

• Solid brass construction
• Optional Solid Brass Mounting Bracket

Market Sectors:

• Commercial
• Light Industrial
• Municipal
• Residential
• Agriculture
• Golf/Turf Irrigation
• Mining
• Building Services

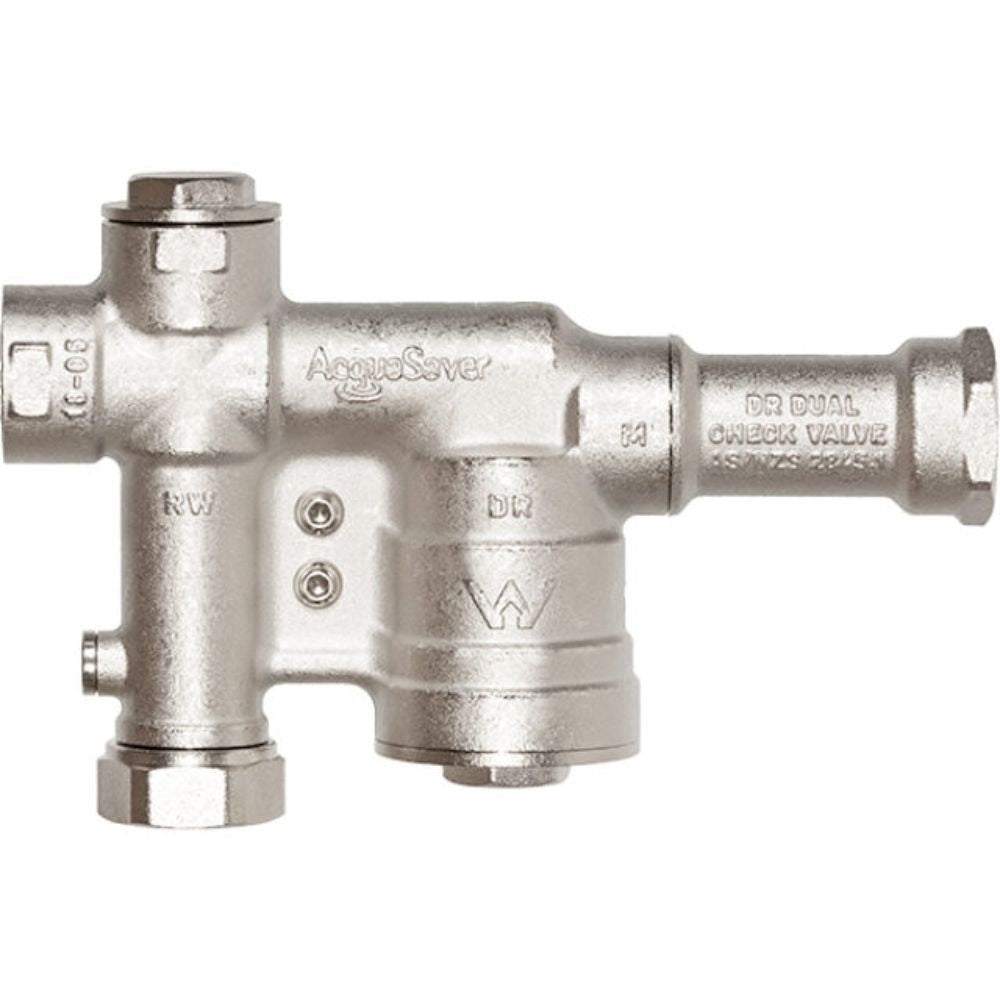

The product image shown is for illustration purpose only
